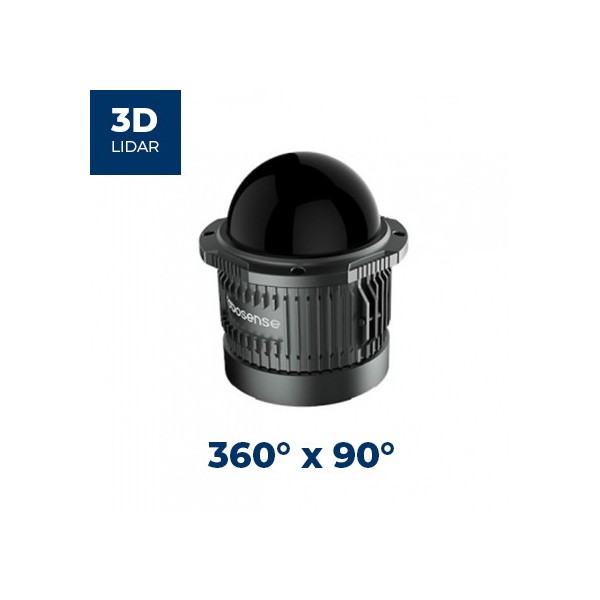

RoboSense RS-Bpearl 360° x 90° 3D Laser Range Finder
RoboSense RS-Bpearl 360° x 90° 3D Laser Range Finder
RoboSense RS-Bpearl 360° x 90° 3D Laser Range Finder

RoboSense RS-Bpearl 360° x 90° 3D Laser Range Finder

Robosense | A-000000-04419

The RoboSense RS-Bpearl 3D laser range finder offers an extended field of view and effective blind spot detection for equipping robots and automated equipment without breaking the bank.

€4,200.00
Tax included

Including €0.92 for ecotax

Quantity 1 Available
Get a quote online

Size Chart
x
Size Chart

TECHNICAL SPECIFICATION   |   TUTORIAL   |   GET A QUOTE

A 3D laser range finder for eliminating blind spots

With its RS-Bpearl model, RoboSense is offering a 3D 360° LiDAR with a particularly interesting near and medium field of view. Its signal processing technology allows it to detect obstacles and objects located less than 10 cm from the LiDAR.

  • It has a wide hemispherical field of view, with a 90° vertical FOV and 360° horizontal FOV
  • A maximum range of 30 m for detecting objects with 10% reflectivity
  • It is particularly cold resistant and will maintain its operating performance at -40°C

This 3D range finder is designed specifically for short-range laser detection in all areas where eliminating blind spots is an advantage.

LiDAR RS-Bpearl: a value-for-money solution for industrial and robotics applications

The RoboSense LiDAR RS-Bpearl range finder is designed for developers of industrial and automated security solutions as well as researchers and teachers.

  • Its compact and modular design allows simple integration into robotic industrial vehicles (forklifts, transport trucks, surveillance equipment, etc.)
It opens up new possibilities for mobile robotic platforms equipped with autonomous navigation It can also be used as an additional item of equipment for autonomous vehicles, laser-detection controlled video surveillance cameras, etc.

It includes an Ethernet connection module for easier inclusion in the ecosystem.

Technical specifications of the RoboSense RS-Bpearl 3D laser range finder

  • Wavelength: 905 nm
  • Laser class: 1
  • Accuracy: ± 3 cm (typical)
  • Measuring range: 30 m (with 10% reflectivity)
  • Blind spot:< 10 cm>< 0.1 m
  • Field of view (vertical): 90°
  • Field of view (horizontal): 360°
  • Data rate (single return): 576,000 pts/s
  • Data rate (double return): 1,152,000 pts/s
  • Frame rate: 600/1,200 rpm (10/20 Hz)
  • Interface: 100 Mbps Ethernet
  • Protection level: IP67
  • Operating temperature: -40 to 60°C
  • Operating voltage: 9 to 32V
  • Storage temperature: -40 to 85°C
How to choose your LiDAR laser range finder

Resources for the RoboSense RS-Bpearl 360° x 90° 3D laser range finder

Data sheet

Platform
ROS
Usage
Outdoor
Usage
Indoor
Supply voltage
9-28 Vdc
Scanning frequency
5-20 Hz
Aperture angle
360°
Scanning range
30-40 m
Laser beams
3D
