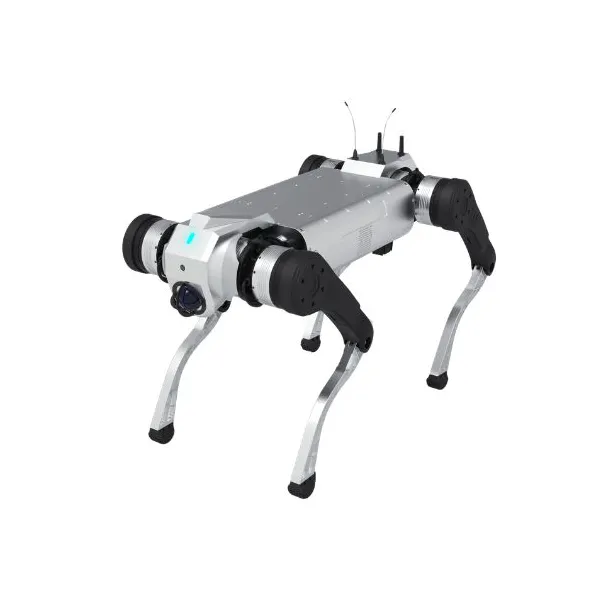

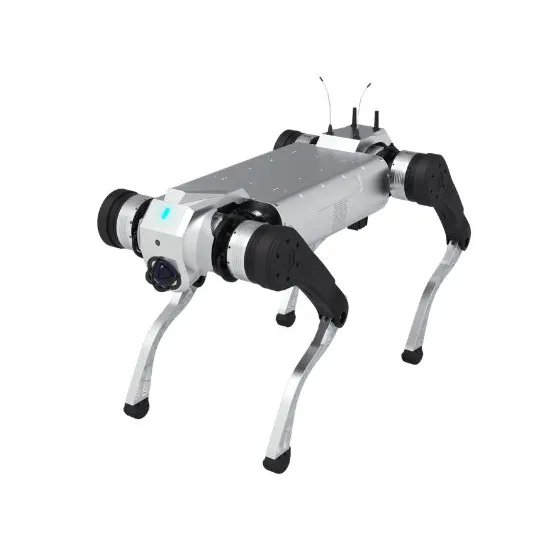

AgiBot D1 Max Pro Quadruped Robot
Agibot | A-000000-08146
Price upon request
The AgiBot D1 Max Pro is a quadruped robot designed for industrial applications, inspection, and mobile robotics projects requiring greater payload capacity and longer endurance.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
AgiBot D1 Max Pro quadruped robot: key points
- Quadruped robot designed for industrial uses, built for demanding environments and longer field missions than the compact models in the D1 range.
- Quadruped locomotion on complex terrain: walking control based on reinforcement learning (RL), with self-balancing, disturbance handling, and behavior adapted to difficult environments.
- High payload: up to 50 kg stable working payload and 100 kg maximum payload.
- Battery life: up to 5.5 h without payload and 2.5 h at full payload.
- Terrain mobility: continuous walking speed of 1.5 m/s, maximum speed of 3 m/s, continuous stair climbing up to 30 cm, and maximum slope up to 45°.
- Robustness: IP67 protection rating and operating temperature from -20 °C to 55 °C.
- Onboard sensors: 96-line LiDAR, 2 wide-angle 2 MP cameras (front / rear), and IMU.
- Applications: industrial inspection, security, outdoor logistics, equipment transport, emergency response, and field robotics experimentation.
Applications and project types (locomotion, inspection, navigation, perception, payload transport)
The AgiBot D1 Max Pro quadruped robot is intended for research laboratories, universities, and robotics professionals looking for a more durable and higher-capacity quadruped platform for real-world testing.
It is particularly suited to projects involving navigation on complex terrain, robotic inspection, embedded perception, transport of sensors or equipment, teleoperation, and validation of field algorithms in industrial, outdoor, or hard-to-access environments.
Practical examples: inspection of technical sites, robotic patrols, transport of sensor kits, experimentation in outdoor logistics, research on load-bearing quadruped locomotion, security robotics, emergency response scenarios, and real-condition R&D demonstrators.
The AgiBot D1 Max Pro is a relevant robotic platform for developing POCs, validating field software building blocks, and testing larger payloads before a potential industrialization phase.
Why choose the AgiBot D1 Max Pro for a research or applied robotics project?
- Its higher payload capacity makes it possible to integrate multiple sensors or pieces of equipment on a single platform.
- Its greater endurance makes it suitable for longer missions, technical patrols, or repetitive testing scenarios.
- Its quadruped locomotion remains relevant in areas where a wheeled base reaches its limits: uneven floors, debris, stairs, outdoor areas, and technical zones.
- Its industrial positioning makes it an option worth considering for projects combining applied research, instrumented inspection, and real-world validation.
- It is particularly suitable for teams needing a heavier, more robust, and more mission-oriented quadruped robot than compact demonstration or educational models.
Technical specifications of the AgiBot D1 Max Pro quadruped robot
| Dimensions in standing position (L × W × H) | 1230 × 530 × 730 mm |
| Dimensions lying down (L × W × H) | 1313 × 530 × 300 mm |
| Weight (with battery) | 64 kg |
| Operating temperature | -20 °C to 55 °C |
| Protection rating | IP67 |
| Battery module | 45 Ah, 48 V, supports quick removal and hot swap |
| Charging time | 4.5 h (optional fast charging: 2 h) |
| Battery life | 5.5 h without payload / 2.5 h at full payload |
| Range | 13.5 km at full payload |
| Continuous walking speed | 1.5 m/s |
| Maximum speed | 3 m/s |
| Payload | 50 kg |
| Maximum payload | 100 kg |
| Continuous stair climbing height | 30 cm |
| Maximum climbing angle | 45° |
| LiDAR | 1 × front-mounted 96-line LiDAR, 360° × 90° coverage angle, range up to 120 m, 1.5 cm accuracy |
| Wide-angle cameras | 1 front + 1 rear, 2 MP industrial grade, DFOV: 150°, HFOV: 130°, VFOV: 73° |
| IMU | Standard |
| Real-time image transmission | Yes |
| OTA update | Yes |
| Secondary development | Yes |
| Dual-spectrum gimbal and video transmission | Integrated interface for a dual-sensor gimbal and video streaming service, with video feedback via secondary development API |
| 4G communication | Yes |
| Communication interfaces | 3 × Gigabit Ethernet, 2 × USB 3.0, 1 × 100M Ethernet, serial port |
| Power interfaces | 12V / 24V / 48V, max. output power 720 W |
Resources for the AgiBot D1 Max Pro quadruped robot
FAQ – AgiBot D1 Max Pro quadruped robot
What types of projects is the D1 Max Pro suitable for?
The D1 Max Pro is well suited to field mobile robotics, instrumented inspection, outdoor navigation, equipment transport, security, and applied research projects when the required payload or endurance exceeds that of a compact quadruped.
Why choose the D1 Max Pro rather than a lighter quadruped?
Its main advantages are its higher payload capacity, longer mission duration, and more industrial positioning. It is therefore better suited to scenarios involving multiple sensors, onboard tools, or longer missions.
Is the robot suitable for difficult environments?
Yes, it is presented for field and industrial uses, with an extended temperature range and reinforced protection. For a specific project, it is recommended to have the exact operating conditions confirmed in the quotation.
Can third-party sensors be integrated?
Yes. The D1 Max Pro is positioned as a platform capable of carrying various perception modules and sensors, especially in inspection, navigation, or robotic supervision scenarios.
Is it relevant for university research?
Yes, especially for laboratories working on load-bearing quadruped locomotion, multi-sensor perception, robotic inspection, field data collection, or navigation in unstructured environments.
What information should I prepare for a quote request?
To qualify a project involving the AgiBot D1 Max Pro, it is useful to specify your estimated budget, project timeline, delivery address, usage environment (indoor, outdoor, technical site, difficult terrain), the sensors or equipment to be carried, as well as a sentence describing your use case (inspection, logistics, security, research, data collection, etc.).
Pre-shipment check
Before each shipment, our team performs a complete, step-by-step check (battery, start-up, remote control, movement, controls).
Details are listed on our Support page.
The AgiBot D1 Max Pro is a quadruped robot designed for industrial applications, inspection, and mobile robotics projects requiring greater payload capacity and longer endurance.
