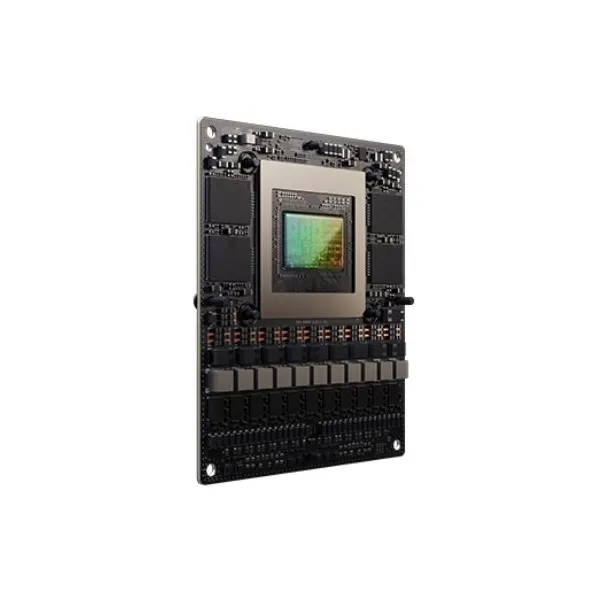

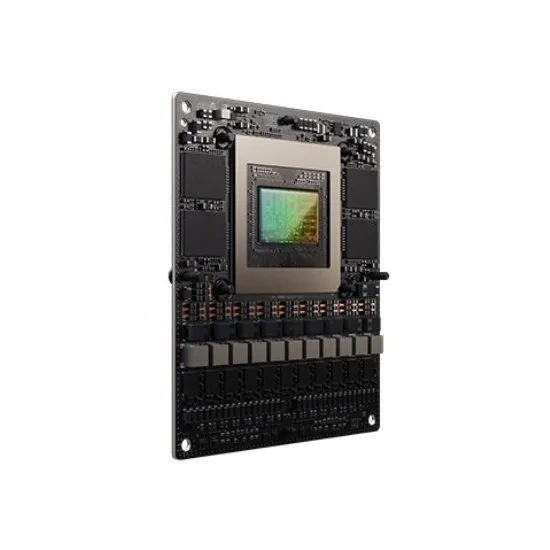

NVIDIA Jetson Thor Module
NVIDIA Jetson Thor Module
NVIDIA Jetson Thor Module
New
NVIDIA Jetson Thor Module

NVIDIA Jetson Thor Module

NVIDIA Jetson Thor Module
NVIDIA | A-000000-08175
€3,600.00
20 perc. French VAT inc.

The NVIDIA Jetson T4000 and NVIDIA Jetson T5000 are embedded computing modules designed for advanced robotics, physical AI, embedded AI, and edge inference (Edge AI).

Version
-- Please select an item --
  • T4000
  • T5000
Quantity
Contact us to find out about delivery times
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

NVIDIA Jetson T4000 / T5000 – Blackwell Embedded AI Modules for Robotics and Edge AI

Key features

  • NVIDIA Blackwell architecture optimized for advanced robotics, physical AI, and embedded inference
  • Two complementary performance levels to match the required thermal envelope and computing performance
  • Shared form factor and pin compatibility between Jetson T4000 and Jetson T5000 to simplify hardware development
  • 256-bit LPDDR5X memory at 273 GB/s for intensive vision, multimodal, and generative AI workloads
  • Arm Neoverse-V3AE CPU with up to 14 cores depending on the version
  • NVMe storage support via PCIe Gen5
  • 25 GbE networking for high-bandwidth robotic and multi-sensor architectures
  • Compatible with the NVIDIA software ecosystem: JetPack, TensorRT Edge-LLM, Isaac, Metropolis, Holoscan, Video Codec SDK

Applications

The NVIDIA Jetson T4000 / T5000 modules are intended for applications requiring high embedded computing power, low latency, and robust integration in Edge or robotic environments. They are particularly suitable for:

  • Autonomous mobile robotics
  • Humanoid robotics and physical AI applications
  • Industrial vision and real-time video analytics
  • Multi-sensor fusion and embedded perception
  • Embedded generative AI applications (LLM, VLM, VLA)
  • Edge AI systems for industry, healthcare, retail, and smart infrastructure
  • Robotic platforms with advanced needs in real-time reasoning, navigation, and interaction

Jetson T4000 and Jetson T5000 comparison

The Jetson Thor series is available here in two complementary modules. The Jetson T4000 is aimed at high-performance deployments with a more contained thermal envelope. The Jetson T5000 is intended for the most intensive applications in terms of compute, memory, and I/O bandwidth.

ModuleGPUCPUAI PerformanceMemoryNetworkPower Consumption
Jetson T4000NVIDIA Blackwell – 1,536 cores, 6 TPC12-core Arm Neoverse-V3AE 64-bitUp to 1,200 FP4 TFLOPS (sparse)64 GB LPDDR5X 256-bit – 273 GB/s3x 25GbE40 – 70 W
Jetson T5000NVIDIA Blackwell – 2,650 cores, 10 TPC14-core Arm Neoverse-V3AE 64-bitUp to 2,070 FP4 TFLOPS (sparse)128 GB LPDDR5X 256-bit – 273 GB/s4x 25GbE40 – 130 W

An NVIDIA Jetson Thor platform designed for physical AI

With the Jetson T4000 and Jetson T5000, NVIDIA is targeting physical AI and robotics use cases where requirements go beyond conventional embedded vision. These modules are designed to locally run heavier workflows, including real-time reasoning, multimodal models, visual agents, perception + control pipelines, and advanced video processing.

The Jetson T4000 is notably highlighted by NVIDIA with JetPack 7.1, TensorRT Edge-LLM for efficient edge inference of LLMs/VLMs, and a unified Video Codec SDK for multimedia and real-time perception workflows. The Jetson T5000 follows the same platform logic with higher compute capability, memory, and network throughput for the most demanding systems.

Technical specifications of the NVIDIA Jetson T4000 / T5000 modules

  • Product family: NVIDIA Jetson Thor
  • GPU architecture: NVIDIA Blackwell
  • Vision accelerator: 1x PVA v3
  • Storage: NVMe storage support via PCIe; the T5000 also supports SSD via USB 3.2
  • PCI Express: up to 8 PCIe Gen5 lanes
  • USB: 3x USB 3.2 and 4x USB 2.0 on T5000
  • T5000 display: up to 4 shared HDMI 2.1 outputs and DisplayPort 1.4a MST
  • Mechanical form factor: 100 x 87 mm
  • Connector: 699-pin B2B connector
  • Cooling: Integrated Thermal Transfer Plate (TTP)

Jetson T4000 specifications

  • AI performance: up to 1,200 FP4 TFLOPS (sparse)
  • GPU: NVIDIA Blackwell GPU, 1,536 cores, Multi-Instance GPU, 6 TPC
  • CPU: 12-core Arm Neoverse-V3AE 64-bit
  • Max CPU frequency: up to 2.6 GHz
  • Memory: 64 GB LPDDR5X 256-bit
  • Memory bandwidth: 273 GB/s
  • Video encoding: 1x NVENC
  • Video decoding: 1x NVDEC
  • Video processing: real-time 4K encoding/decoding highlighted by NVIDIA
  • Network: 3x 25GbE
  • Other I/O: up to 5x I2S, 1x Audio Hub (AHUB), 2x DMIs, 4x UART, 3x SPI, 13x I2C, 6x PWM
  • Power consumption: 40 W to 70 W

Jetson T5000 specifications

  • AI performance: up to 2,070 FP4 TFLOPS (sparse)
  • GPU: NVIDIA Blackwell GPU, 2,650 cores, Multi-Instance GPU, 10 TPC
  • CPU: 14-core Arm Neoverse-V3AE 64-bit
  • CPU cache: 64 KB I-Cache + 64 KB D-Cache, 1 MB L2 per core, 16 MB shared L3
  • Max CPU frequency: up to 2.6 GHz
  • Memory: 128 GB LPDDR5X 256-bit
  • Memory bandwidth: 273 GB/s
  • Video encoding: 2x NVENC, up to 6x 4Kp60 (H.265)
  • Video decoding: 2x NVDEC, up to 4x 8Kp30 (H.265)
  • Cameras: up to 20 cameras via HSB, up to 6 cameras via 16 MIPI CSI-2 lanes, up to 32 cameras via virtual channels
  • Camera interfaces: C-PHY 2.1 (10.25 Gbps) and D-PHY 2.1 (40 Gbps)
  • Network: 4x 25GbE
  • Other I/O: 5x I2S, 2x AHUB, 2x DMIs, 4x UART, 4x CAN, 3x SPI, 13x I2C, 6x PWM
  • Power consumption: 40 W to 130 W

Resources for the NVIDIA Jetson T4000 / T5000 modules
