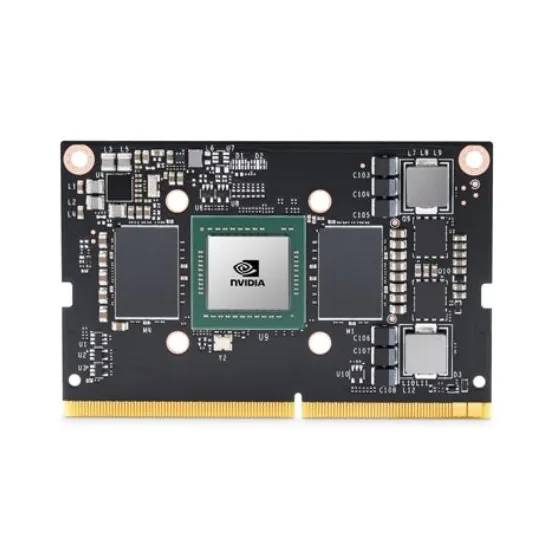

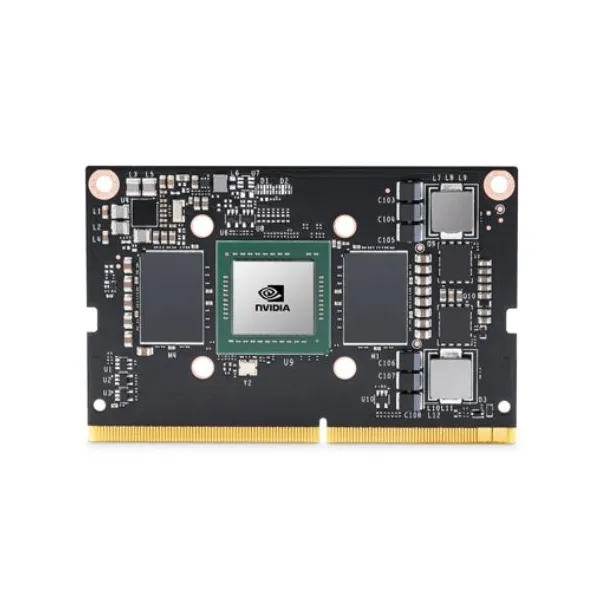

NVIDIA Jetson TX2 NX Module
NVIDIA | A-000000-08178
€324.00
20 perc. French VAT inc.
The NVIDIA Jetson TX2 NX is an embedded computing module designed for edge artificial intelligence (Edge AI), embedded vision, and compact robotics applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
NVIDIA Jetson TX2 NX – Compact embedded AI module for Edge AI and robotics
Key features
- Compact Jetson module for embedded AI, vision, and robotics applications
- NVIDIA Pascal GPU with 256 CUDA cores
- 6-core heterogeneous CPU: dual-core NVIDIA Denver 2 + quad-core Arm Cortex-A57
- Up to 1.33 TFLOPS of AI performance for advanced entry-level Edge AI products
- 4 GB of LPDDR4 and 16 GB eMMC 5.1 integrated
- Configurable power consumption: 7.5 W / 15 W
- Mechanical and pin-to-pin compatibility with Jetson Nano and Jetson Xavier NX
- Compatible with NVIDIA JetPack SDK and the NVIDIA software ecosystem for AI, vision, multimedia, and embedded optimization
Applications
The NVIDIA Jetson TX2 NX is intended for applications requiring embedded AI computing capability with an excellent balance between size, power consumption, and performance. It is particularly suitable for:
- Compact mobile robotics
- Industrial vision and embedded vision
- Real-time video analytics systems
- Edge AI devices for retail, logistics, industry, and smart cities
- Embedded perception applications with multiple cameras
- OEM products requiring a compact and industrializable Jetson platform
- Embedded systems requiring an easy upgrade path between Jetson Nano, Jetson TX2 NX, and Jetson Xavier NX
A compact Jetson platform to accelerate AI development
The Jetson TX2 NX is designed to simplify the development and deployment of Edge AI products. Thanks to the NVIDIA JetPack SDK, it supports the main AI frameworks as well as accelerated libraries for computer vision, multimedia, graphics, and embedded inference. NVIDIA also highlights compatibility with NVIDIA NGC pretrained models and tools such as the TAO Toolkit, helping reduce time to market and simplify software updates.
Technical specifications of the NVIDIA Jetson TX2 NX module
- GPU architecture: NVIDIA Pascal
- GPU: 256 NVIDIA CUDA cores
- AI performance: up to 1.33 TFLOPS
- Max GPU frequency: up to 1.3 GHz
- CPU: dual-core NVIDIA Denver 2 64-bit + quad-core Arm Cortex-A57 MPCore
- Max CPU frequency: up to 2.0 GHz
- Memory: 4 GB LPDDR4 128-bit
- Memory bandwidth: 51.2 GB/s
- Storage: 16 GB eMMC 5.1
- Power consumption: 7.5 W to 15 W
- Power supply: 5 V
- Network: 10/100/1000 Base-T Ethernet
- Cameras: up to 5 cameras (up to 12 via virtual channels)
- Camera interface: 12 MIPI CSI-2 lanes (3x4 or 5x2), D-PHY 1.2 up to 30 Gbps
- H.265 video encoding: 1x 4Kp60 / 3x 4Kp30 / 4x 1080p60 / 8x 1080p30
- H.264 video encoding: 1x 4Kp60 / 3x 4Kp30 / 7x 1080p60 / 14x 1080p30
- Video decoding: 2x 4Kp60 / 4x 4Kp30 / 7x 1080p60 / 14x 1080p30 (H.265 & H.264)
- Display: 2x multi-mode DP 1.2 / eDP 1.4 / HDMI 2.0, 2x DSI (1.5 Gbps/lane)
- Other I/O: 1x SDIO, 2x SPI, 3x UART, 4x I2S, 4x I2C, 1x CAN, GPIOs
- Mechanical form factor: 45 mm x 69.6 mm
- Connector: 260-pin SO-DIMM edge connector
- Mechanical compatibility: form factor and pin compatibility with Jetson Nano and Jetson Xavier NX
- Carrier board compatibility: compatible with the Jetson Xavier NX developer kit carrier board
Resources for the NVIDIA Jetson TX2 NX module
The NVIDIA Jetson TX2 NX is an embedded computing module designed for edge artificial intelligence (Edge AI), embedded vision, and compact robotics applications.
