Robotis GP programmable humanoid robot

Robotis GP programmable humanoid robot

Robotis | A-000000-00579

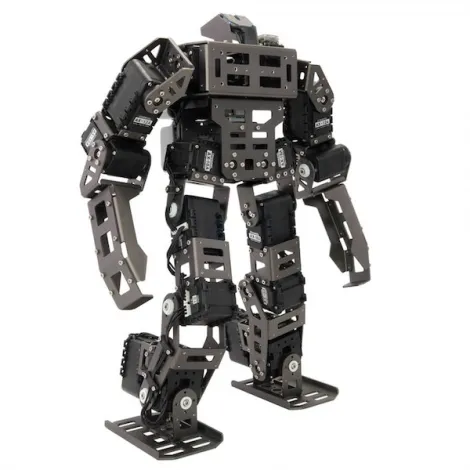

The Bioloid GP programmable humanoid robot is a mobile robot designed for robotics competitions. It contains high quality Dynamixel motors, lots of sensors, a controller and aluminum structural frames.

€2,350.00
Tax included

Including €0.92 for ecotax

Quantity This product is currently being restocked, please contact us for delivery times.
Get a quote online

Size Chart
x
Size Chart

The Bioloid GP programmable humanoid robot, your best robotics competitor

Walk, get up, grab objects, play soccer... these actions are still real challenges for robots... and their programmers!

What ever your programming skills, if you wish to face these challenges and lots of others, if you are looking for a standard robotics base to confront other developers in competition, the Bioloid GP programmable humanoid robot is what you need.

The Bioloid GP programmable humanoid robot is a mobile robot for competitions

Strong and light thanks to its aluminum structural frames, it includes AX-12A and AX-18A Dynamixel servomotors that are together powerful, precise and easy to command. Its gripper hands allow it to manipulate objects.

The Bioloid GP programmable humanoid robot also includes several sensors, as a distance sensor to avoid walls and a gyroscopic sensor to maintain its balance. It is shipped with a infrared (wireless) RC-100A remote control to react to you orders.

Programming is done through the RoboPlus software, included with the robot. It allows to record movements and to automate actions in a simple and intuitive manner. The program is then transferred on the CM-530 controller and the Bioloid GP programmable humanoid robot can act autonomously ! And to begin easily, the robot contains some prerecorded soccer and fighting moves by default.

The components of the Bioloid GP programmable humanoid robot

The components of the Bioloid GP programmable humanoid robot

The Bioloid GP programmable humanoid robot contains all needed pieces, from the motors and frames to the screws and cable holder. An assembly manual helps you to get quickly a functional robot and guides you through your first steps.

The Bioloid GP programmable humanoid robot has 8 AX-12A Dynamixel servomotors to move its arms. It has two degrees of freedom in each shoulder, one in the elbow and you can chose to use the lasts motors in the grippers or to allow a waist twist. The AX-12A servomotors are the ones used in the whole Bioloid range.

The legs of the Bioloid GP programmable humanoid robot are actuated by AX-18A Dynamixel servomotors, that are bit bit more powerful and mainly quicker. The robot has 5 degrees of freedom in each leg, so 10 AX-18A Dynamixel servomotors in all.

The CM-530 Bioloid controller has an ARM Cortex microcontroller and can be programmed using the RoboPlus software using a mini-USB cable (provided). It is powered by a LiPo battey (provided, with its charger) or directly by a power plug using a SMPS cable (also provided).

The RC-100A wireless remote control has 10 buttons (plus one power button), to which you can associate actions of the Bioloid GP programmable humanoid robot. The remote control and the robot communicate with infrared by default, but the range and bandwidth can be improved by using a Zig110 or a BT110A set.

The complete list of components of the Bioloid GP programmable humanoid robot:

List of all components of the Bioloid GP programmable humanoid robot

First steps with the Bioloid GP programmable humanoid robot

What to do once you have received your Bioloid GP programmable humanoid robot? First, you have to build it, then charge its battery. Then, when you turn the robot on, it should reach the following position. If it doesn't, please check your assembly.

initial posture of the Bioloid GP programmable humanoid robot

A default program is already included in the CM-530 controller of the Bioloid GP programmable humanoid robot. The sources of the program can be found here

The program allows the robot to move according to the orders sent by the RC-100A wireless remote control (the 5 and 6 buttons are the upper buttons):

The RC-100A wireless remote control can command the Bioloid GP programmable humanoid robot

U Forward   D Backward
L Turn left   R Turn right
U + L Forward and turn left   U + R Forward and turn right
L + 5 Left sidestep   L + 5 + 6 Fast left sidestep
L + U + 5 Forward left diagonal step   L + D + 5 Backward left diagonal step
R + 5 Right sidestep   R + 5 + 6 Fast right sidestep
R + U + 5 Forward right diagonal step   R + D + 5 Backward right diagonal step
1 + U Get up if you fall backward   1 + D Get up if you fall forward

This program also has three different modes that allow different actions:

5 + 6 + D + 3 Go to soccer mode
5 + 6 + U + 1 Go to battle mode
5 + 6 + L + 2 Go to performance mode

Soccer mode:

Soccer moves for the Bioloid GP programmable humanoid robot

2 + U Left leg, shoot forward   4 + U Right leg, shoot forward
2 + D Left leg, shoot backward   4 + D Right leg, shoot backward
2 + L Left leg, shoot left   4 + L Right leg, shoot left
2 + R Left leg, shoot right   4 + R Right leg, shoot right
3 Defense standby   3 + L Block ball left
3 + U Defense   3 + R Block ball right

Battle mode:

Battle moves for the Bioloid GP programmable humanoid robot

2 + U Hit forward   3 Defensive posture
2 + L Hit left   2 + R Hit right
4 + U Upper body tackle   4 + D lower body tackle
4 + L Left tackle   4 + R Right tackle

Perfomrmance mode:

2 + U Greeting   2 + R Handstand
2 + D Clap   3 + U Roll on side
2 + L Clap   3 + D Push-ups

Quick view of the capabilities of the Bioloid GP programmable humanoid robot

Going further with the Bioloid GP programmable humanoid robot

More information on how to program the Bioloid GP programmable humanoid robot can be found on the

Robotis GP user guide. You will find there programming examples, and usage advices.

Also don't forget to read our RoboPlus programmation tutorial before challenging your friend!

Data sheet

Programming language
Blocks
Age group
15-17 years
Compatibility
iOS tablet
Compatibility
Android tablet
Compatibility
Computer
Power supply
Battery (rechargeable)
Robot type
Building set
Robot type
Humanoid robot
