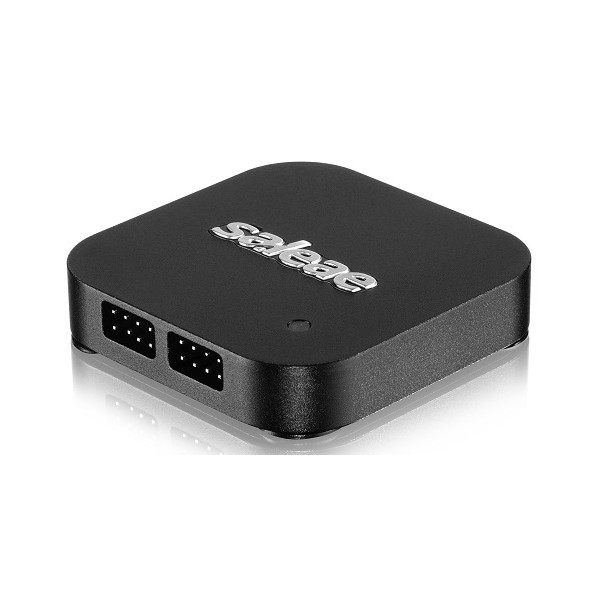

8-Channel 25MHz USB Logic Analyzer

8-Channel 25MHz USB Logic Analyzer

8-Channel 25MHz USB Logic Analyzer
Saleae Logic Analyzer | A-000000-01838
562.80 €
20 perc. French VAT inc.

Including €0.20 for ecotax

Cheap and very powerful, this new version of the 8-channel USB logic analyser has a 25MHz sampling rate. Your digital electronic circuits won't have secrets for you anymore !
In backorder
This product is on backorder. You can place an order on our website or send us a purchase order in PDF format
Contact us to know the delivery times

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

Say Goodbye Frustration and hello to efficiency ! The communication between your digital circuits becomes crystal clear. The Saleae USB logic analyzer is a tool that will allow roboticists and electronic engineers to save a lot of time and to solve very common bugs quickly and easily.

Saleae USB 8-channel Logic analyser at a glance

This tool offers the following features:

  • Sampling: 25MHz
  • Number of channels: 8
  • Number of samples: +10 Billions
  • Input voltage: from 1.8V to 5.5V. Supports usual standard CMOS thresholds (0.6V for logic low, 1.2V for logic high)
  • Everything is included: The logic analyzer, a neoprene case, test probes and clips, and a USB cable
  • 3-years warranty


25MHz to see your communications in another way

The 25MHz sampling rate on each channel allows capturing most of the common real world applications and main communication protocols (I2C, SPI, One-Wire, serial, UART,...) that are usually running at 10MHz max (but you can measure signals up to 100MHz).

8 channels Saleae logic analyser

The Salae Logic has 8 channels that can be used simultaneously. serial or parallel links, most protocols can be captured.

10 billions samples !

No more small data buffers. the Salae USB logic analyzer can store up to 10 billion samples.

Saleae 8-Channel 25MHz USB Logic Analyzer content

Reliable and rock solid

The analyzer enclosure is made out of anodized aluminium. Its inputs are protected against overvoltage via current-limiting resistors and a resettable fuse protect the USB host.

Saleae 8-Channel 25MHz USB Logic Analyzer screenshot

Everything is included with the 8 channels Saleae logic analyser

The logic analyzer comes with everything required to work with it: An ultra flexible wire harness, 16 high-quality micro-hook probes, a USB cable and a nice carrying case. Download and install the software and you can start debugging !

Warranty and support of the 8 channels Saleae logic analyser

All Saleae USB logic analyzers come with a 3-years manufacturer warranty. If your Logic stops working for any reason, the manufacturer will ship you a replacement unit at no cost.

Associated software with the 8 channels Saleae logic analyser

The software for Logic 8 and Logic 16 analysers is available for download. This software is very easy to use and is available for Windows, Mac OS and Linux in their 32-bit and 64-bit versions.
