UM7 Cable Assembly (two-way version)
UM7 Cable Assembly (two-way version)

UM7 Cable Assembly (two-way version)

Redshift Labs | A-000000-04006

This 5-pin cable designed for the UM7, the small module from Redshift Labs, is available in one-way and two-way versions!

€14.50
Tax included

Including €0.02 for ecotax

Quantity 4 Available
Get a quote online

Size Chart
x
Size Chart

Cable for the UM7 orientation sensor: better safe than sorry

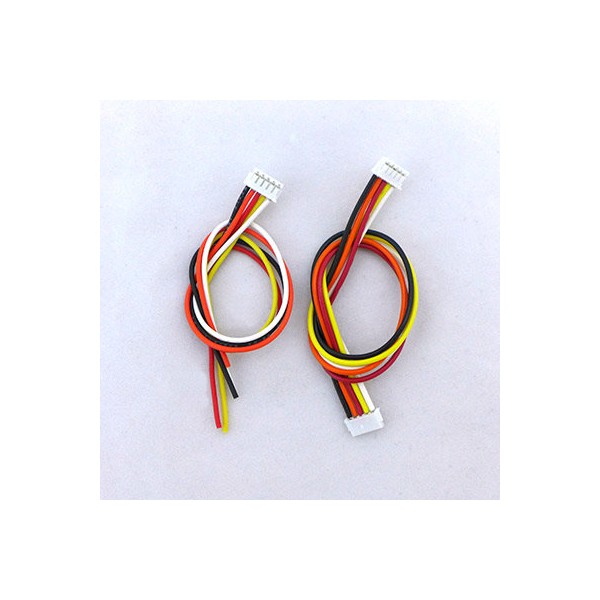

Your UM7 IMU comes with a compatible cable, but who knows what could happen? If you need to replace a damaged cable or simply wish to extend your connection possibilities, go for this 5-pin cable available in two versions: one-way (a connector on one end and 5 bare wires on the other) or two-way (a connector on both ends).

Technical specifications of the cable for UM7

  • JST ZHR-5(P) 5-pin connector
  • Cable length: 152.4 mm (+/-12.7 mm)
  • Voltage rating: 50V (AC, DC)
  • Current rating: 1A
  • Wire gauge: 26 AWG
  • Contact resistance: 20 mΩ max.
  • Temperature range: -25 to +85°C
