RB-KAIROS+ Mobile Robot Manipulator

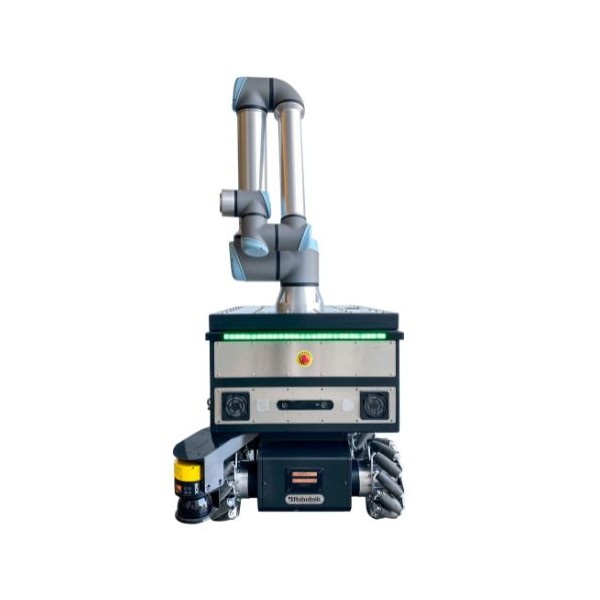

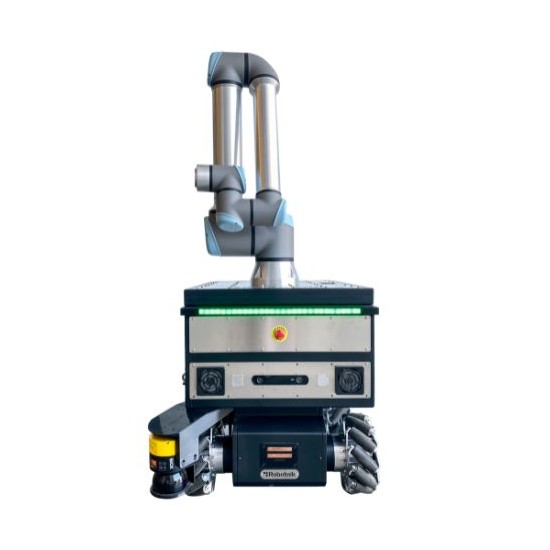

RB-KAIROS+: Autonomous Mobile Manipulator for Industrial Applications

The RB-KAIROS+ is a mobile manipulator designed for the plug&play integration of Universal Robots e-Series robotic arms. This mobile robot transforms a fixed cobot arm into an autonomous mobile manipulator, significantly expanding the cobot’s working area. With this solution, the robotic arm can operate on parts of different sizes with a payload of up to 5 kg, and across large surfaces.

RB-KAIROS+ is ideal for industrial applications such as Pick & Place, part feeding, metrology, quality control, operations on large parts, packaging, cleaning, polishing, screwing, drilling, and more. Moreover, it is approved by UR+, ensuring full compatibility with Universal Robots cobots.

All Robotnik robots, including RB-KAIROS+, are modular and use a ROS-based architecture (Robot Operating System).

Main Applications

• Pick & Place
• Part Feeding
• Metrology and Quality Control
• Operations on Large Parts
• Packaging
• Cleaning
• Polishing
• Screwing and Drilling

Included Components

• Mecanum omnidirectional wheels
• Payload: 100 kg
• Processor: Intel i7
• Safety Pack (industrial version)
  • 2D Safety Scanner x2
  • Safety PLC
• RGBD Camera
• 4G Router
• IMU (Inertial Measurement Unit)
• Robotic arm UR5e:
  • Payload: 5 kg
  • Reach: 850 mm
• Battery: 48VDC@30Ah
• Charging station

Optional Components

• Reinforced Mecanum wheels (payload up to 250 kg)
• 5G Router
• AI + Vision Package
• 3D Localization and Navigation Package
• OnRobot Grippers:
  • OnRobot VGC10
  • OnRobot RG
  • OnRobot RG6
  • OnRobot RG2FT
  • OnRobot 2FG7
• Robotiq Grippers:
  • Robotiq 2F-85
  • Robotiq 2F-140
• OnRobot Eyes Camera

Technical Specifications of RB-KAIROS+ Mobile Manipulator

Mechanical:

• Dimensions: 978 x 776 x 1,010 mm
• Weight: 115 kg + 25 kg (for UR5e arm)
• Payload: Up to 250 kg
• Maximum Speed: 1.5 m/s
• Operating Environment: Indoor
• Protection Class: IP52
• Autonomy: Up to 6 hours
• Traction Motors: 4 x 500 W with brake
• Traction System: Omnidirectional (Mecanum wheels)
• Localization System: SLAM (Simultaneous Localization and Mapping)
• Temperature Range: 0ºC to +50ºC
• Maximum Slope: 15%

Communication:

• WiFi: 802.11 b/g/n/ac
• Bluetooth: 4.0

Connectivity:

• USB: x3
• Ethernet: x2
• HDMI: x1
• DC Power Output

RB-KAIROS+ Mobile Manipulator Resources

• Datasheet
