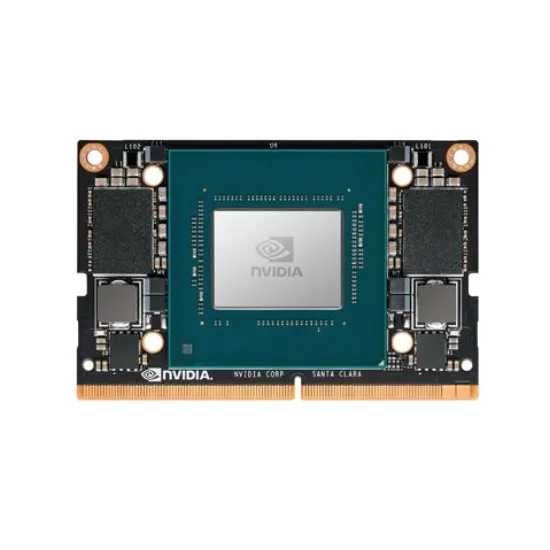

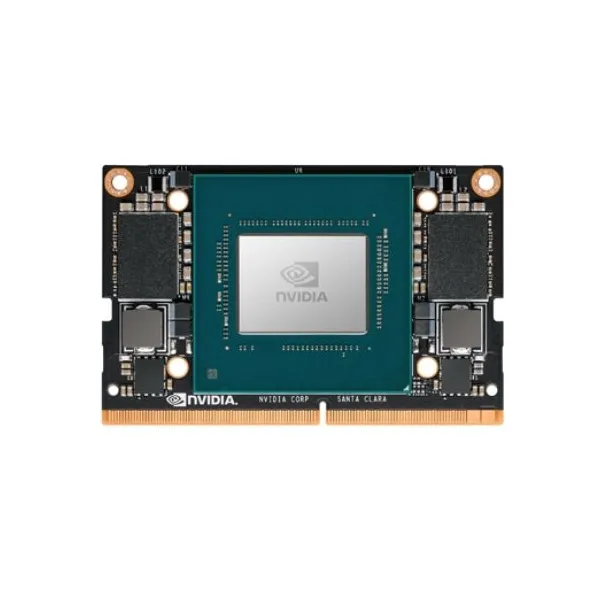

Module NVIDIA Jetson Xavier NX
NVIDIA | A-000000-04823
€780.00
20 perc. French VAT inc.
The NVIDIA Jetson Xavier NX is a compact computing module designed for embedded artificial intelligence and Edge AI applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
NVIDIA Jetson Xavier NX – Embedded AI module (8 GB / 16 GB)
The NVIDIA Jetson Xavier NX is an embedded computing platform designed for edge artificial intelligence (Edge AI) applications. This compact module combines a multi-core ARM processor, an NVIDIA Volta GPU with Tensor Cores, and dedicated AI accelerators to run deep learning models and vision algorithms in real time.
With performance of up to 21 TOPS, the Jetson Xavier NX can process multiple video streams and run several neural networks simultaneously in embedded systems such as autonomous robots, smart cameras, or automated industrial systems.
Its compact 70 × 45 mm form factor makes it easy to integrate AI capabilities into robotic equipment, industrial vision systems, or advanced IoT solutions.
Performance for embedded artificial intelligence
Based on the NVIDIA Xavier architecture, the Jetson Xavier NX offers an excellent balance between computing power and energy consumption. The integrated Volta GPU accelerates deep learning operations and computer vision workloads.
- NVIDIA Volta GPU with 384 CUDA cores
- Tensor Cores for AI inference
- 6-core 64-bit ARM CPU
- Up to 21 TOPS of performance
- Full support for the NVIDIA JetPack ecosystem
This architecture enables efficient execution of frameworks such as TensorRT, CUDA, cuDNN, and NVIDIA vision libraries.
Applications
The Jetson Xavier NX board is used in many applications requiring high computing power in a compact format.
- Autonomous robotics
- Industrial vision
- Automated inspection
- Smart cameras
- AIoT and smart factories
- Embedded artificial intelligence systems
Comparison of NVIDIA Jetson modules
The Jetson Xavier NX belongs to the NVIDIA Jetson family of modules designed for embedded AI. The table below compares its main features with the Jetson Orin Nano and Jetson Orin NX modules.
| Module | GPU | CPU | AI Performance | Memory | Power Consumption |
|---|---|---|---|---|---|
| Jetson Xavier NX | Volta – 384 CUDA | 6-core ARM | 21 TOPS | 8 / 16 GB | 10 – 15 W |
| Jetson Orin Nano | Ampere – 1024 CUDA | 6-core ARM | 40 TOPS | 4 / 8 GB | 7 – 15 W |
| Jetson Orin NX | Ampere – 1024 / 2048 CUDA | 8-core ARM | 70 – 100 TOPS | 8 / 16 GB | 10 – 25 W |
A reference platform for Edge AI
The Jetson Xavier NX is a powerful solution for integrating artificial intelligence into embedded systems. Combined with the NVIDIA JetPack software platform and the CUDA ecosystem, it enables the development of advanced robotics, computer vision, and autonomous applications.
Technical specifications of the NVIDIA Jetson Xavier NX board
- GPU architecture: NVIDIA Volta
- GPU: 384 CUDA cores + 48 Tensor Cores
- Maximum GPU frequency: up to 1100 MHz
- CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit
- CPU cache: 6 MB L2 + 4 MB L3
- Maximum CPU frequency:
- 2 cores @ 1.9 GHz
- 4 / 6 cores @ 1.4 GHz
- AI performance: up to 21 TOPS (INT8)
- Memory: 8 GB or 16 GB LPDDR4x
- Memory bus: 128-bit
- Memory bandwidth: up to 59.7 GB/s
- Storage: integrated 16 GB eMMC 5.1
- Power consumption: configurable modes 10 W / 15 W / 20 W
- PCI Express: 1 x1 + 1 x4 (PCIe Gen3 – Root Port & Endpoint)
- Cameras:
- up to 6 cameras
- 12 MIPI CSI-2 lanes
- up to 36 cameras via virtual channels
- D-PHY 1.2 up to 30 Gbps
- Video encoder:
- 2× 4K60 or 4× 4K30 (H.265 / HEVC)
- 10× 1080p60 or up to 22× 1080p30
- H.264 / H.265 / VP9 support
- Video decoder:
- up to 2× 8K30
- 6× 4K60 or 12× 4K30
- up to 44× 1080p30 streams
- Display: 2 multi-mode DP 1.4 / eDP 1.4 / HDMI 2.0 outputs
- AI accelerators: 2 NVIDIA Deep Learning Accelerator (NVDLA) engines
- Networking: Gigabit Ethernet (10/100/1000 BASE-T)
- Connector: 260-pin SO-DIMM
- Dimensions: 69.6 × 45 mm
Resources for the NVIDIA Jetson Xavier NX board
The NVIDIA Jetson Xavier NX is a compact computing module designed for embedded artificial intelligence and Edge AI applications.
