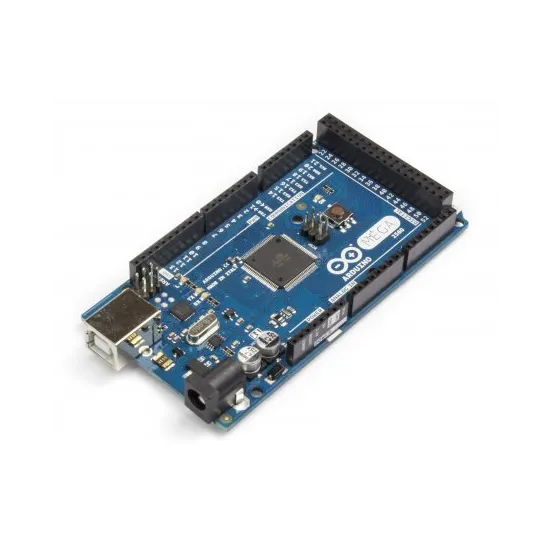

Arduino Mega 2560 Rev. 3 Board

Arduino Mega 2560 Rev. 3 Board

Arduino | A-000000-01330
The Arduino Mega 2560, which replaced the Arduino Mega board, has now been upgraded for a third time to make it both more powerful and easier to use for your electronics and robotics projects!
€39.90
Tax included

Including €0.01 for ecotax

Quantity 8 Available
Get a quote online

Size Chart
x
Size Chart

Check out the Arduino Mega 2560 Rev. 3 Board

The Arduino Mega 2560 Board was designed to replace the Arduino Mega board. It is fitted with an Atmega2560 microcontroller with 256 kB of flash memory, 8 kB of which are dedicated to the bootloader.

With the Arduino Mega 2560 Board, you also have an improved hardware environment: 54 digital inputs/outputs, including 14 digital pins for your PWM outputs, 16 analogue input pins, 4 UARTs, a reset button and an ICSP connector. The Arduino Mega 2560 development board has also been equipped with a 16 MHz crystal oscillator.

Arduino Mega 2560 Rev3 board with packaging

The Arduino Mega 2560 Board can be not only powered from your computer (with a USB cable), but also connected to an external supply (AC/DC adaptor or battery).

The ATmega2560 microcontroller is compatible with most shields suitable for Arduino Uno Rev3, Duemilanove and Diecimila boards.

Revision 3 of the Mega 2560 Board, an Arduino flagship!

The Arduino Mega 2560 Board is offered here in its third version, which includes new features and hardware improvements:

  • The Atmega8U2 USB-to-serial converter has been replaced by the Atmega16U2
  • The reset circuit has been beefed up
  • Alongside the AREF pin, you’ll find SDA and SCL pins to provide the I²C communication
  • 2 new pins can be found beside the reset button: an IOREF pin for adapting your shields to the voltage supplied by the board and an unconnected pin to be reserved for new uses



Arduino Mega 2560 Rev3 schematic

Technical specifications of the Arduino Mega 2560 Rev. 3 Board

  • Microcontroller: ATmega2560
  • Operating voltage: 5 V
  • Input voltage range (recommended): 7–12 V
  • Input voltage range (limits): 6–20 V
  • Digital I/O pins: 54
  • PWM digital I/O pins: 14
  • Analogue input pins: 16
  • Direct current per I/O pin: 40 mA
  • Direct current for 3.3V pins: 50 mA
  • Flash memory: 256 kB
  • Bootloader flash memory: 8 kB
  • SRAM: 8 kB
  • EEPROM: 4 kB
  • Crystal oscillator clock speed: 16 MHz
  • Dimensions: 101.52 × 53.3 mm
  • Weight: 37 g



Resources for the Arduino Mega 2560 Rev. 3 Board

Need more information before embarking on your first project with the Arduino Mega 2560 Rev. 3 Board? We’ve found everything you need!

Arduino software download

ATMega2560 datasheet

ATMega2560 datasheet

EAGLE files for the Arduino Mega 2560 Rev. 3 Board

EAGLE files for the Arduino Mega 2560 Rev. 3 Board

Technical schematic of the Arduino Mega 2560 Rev. 3 Board

Technical schematic of the Arduino Mega 2560 Rev. 3 Board

Pin mapping of the Arduino Mega 2560 Rev. 3 Board
