Vision Set for the Ned2 Robot Arm
Niryo | A-000000-05248
997.15 €
20 perc. French VAT inc.
Niryo has also chosen to equip its Ned2 robot arm with a vision set, for colour object detection and recognition.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
Vision set: new future uses for your Ned2

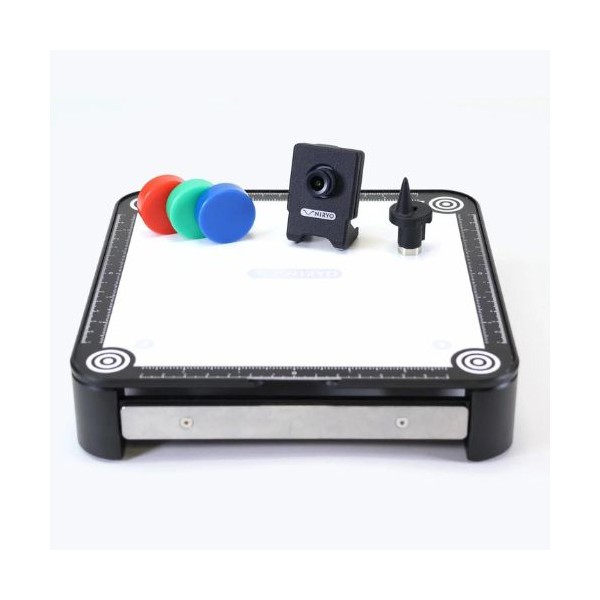

The Ned2 robot arm vision set is a robotic vision module that attaches to the wrist of your Ned2 robot.
It consists of a Sony IMX322 colour camera and various accessories: objects in different shapes and colours, a workspace and all the necessary materials for connecting and attaching your on-board camera.
The workspace is designed to operate flat, vertically or on a slope. It will stick to any surface you place it on, while remaining repositionable to adapt to your needs.
Once installed, you can use the vision set to make Ned2 choose and handle objects based on their shape or colour.
Setting up your vision set: Niryo Studio or a TCP script
Once you’ve activated your vision set, you can choose between two programming modes:
- Niryo Studio is a programming environment designed for Niryo lab creations. It’s a visual, intuitive interface inspired by Blockly, simply choose and move blocks to determine how your robot arm behaves.
- If you want to program your vision set using another language of your choice, you can also write a TCP script in the robot’s client/server environment.
Either method will allow you to use the Ned2 detection camera in a robotics class or workshop, or even an industrial R&D laboratory.
Technical specifications of the Ned2 vision kit
- Model: ELP-USBFHD06H-L21
- Sensor: Sony IMX322
- Lens size: 2.1 mm
- Pixel size: 12.8 × 11.6 mm
- Image area: 2000 x 1121, ~2.24 M pixels
- Max. resolution: 1080p (1920 x 1080)
- Available frame rates and resolutions:
- Compressed and raw: 320×240@30 fps / 352×288@30 fps / 640×360@30 fps / 640×480@30 fps
- Raw only: 800×600@15 fps
- Compressed only: 800×600@30 fps / 1280×720@30 fps / 1920×1080@30 fps
- Raw format: YUV
- Compressed formats: H264 and MJPEG
- Signal-to-noise ratio: 42 dB
- Dynamic range: 86 dB
- Sensitivity: 5 V / lux.sec@550 nm
- Min. illumination: 0.01 lux
- Shutter type: electronic rolling shutter / frame exposure
- Adjustable parameters: brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, backlight contrast, exposure
- Working temperature: -20 °C ~ 85 °C
- Operating system requirements: Windows 7 or above / Linux 2.6 or above / Android 4.0 or above
- Port type: USB 2.0 High Speed – Plug & Play
- Cable length: 1 m
- Control methods: Niryo One Studio / Python API / TCP/IP
Resources for the Niryo Ned2 6-axis robot arm for education
- Niryo Studio software download
- Software
- Compatibility guide
- Niryo ROS GitHub
- Niryo MATLAB GitHub
- PyNiryo GitHub
Curriculum for the Niryo Ned2 robot arm
- Curriculum to control Niryo with Blockly (FR) available on request by e-mail
- Curriculum to control Niryo with Python (FR) available on request by e-mail
- Curriculum to control Niryo with MATLAB (FR) available on request by e-mail
Niryo has also chosen to equip its Ned2 robot arm with a vision set, for colour object detection and recognition.
