NVIDIA Jetson Orin NX Module
NVIDIA | A-000000-08134
€720.00
20 perc. French VAT inc.
The NVIDIA Jetson Orin NX is a compact computing module designed for embedded artificial intelligence and Edge AI applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

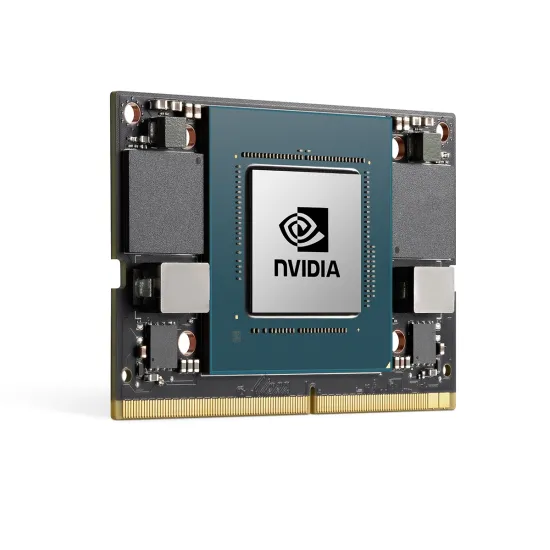

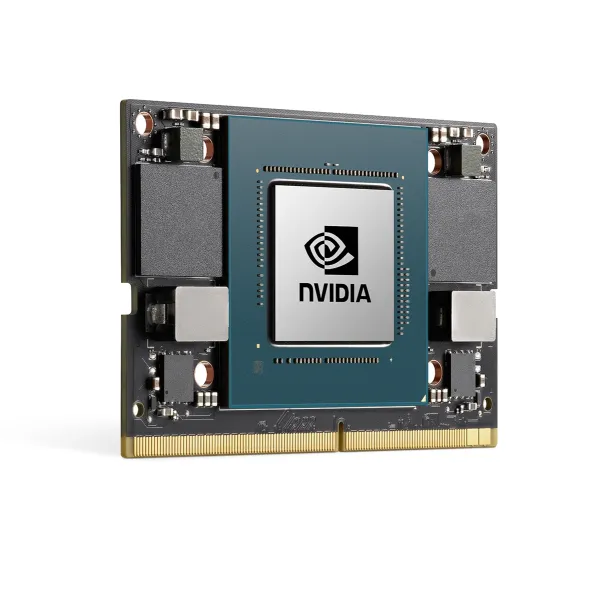

NVIDIA Jetson Orin NX – Embedded AI module (8 GB / 16 GB)
The NVIDIA Jetson Orin NX is an embedded computing platform designed for edge artificial intelligence (Edge AI) applications. This compact module combines an Arm Cortex-A78AE processor, an NVIDIA Ampere GPU with Tensor Cores, and dedicated AI accelerators to run deep learning models, 3D perception, and computer vision algorithms in real time.
With performance of up to 117 TOPS for the 8 GB version and 157 TOPS for the 16 GB version, the Jetson Orin NX can process multiple video streams, handle concurrent AI applications, and run complex neural networks in embedded systems such as autonomous robots, smart cameras, drones, or automated industrial systems.
Its compact 69.6 × 45 mm form factor makes it easy to integrate advanced AI computing capabilities into robotic equipment, industrial vision systems, or advanced IoT solutions.
Performance for embedded artificial intelligence
Based on the NVIDIA Orin architecture, the Jetson Orin NX offers an excellent balance between computing power, compactness, and energy efficiency. The integrated Ampere GPU accelerates deep learning operations, computer vision processing, and sensor fusion.
- NVIDIA Ampere GPU with 1024 CUDA cores
- 32 Tensor Cores for AI inference
- Arm Cortex-A78AE CPU with 6 or 8 cores depending on version
- Performance up to 157 TOPS
- Full support for the NVIDIA JetPack ecosystem
This architecture enables efficient execution of frameworks such as TensorRT, CUDA, cuDNN, Isaac, DeepStream, and NVIDIA libraries for robotics, vision, and embedded AI.
Applications
The Jetson Orin NX board is used in many applications requiring high AI computing power in a compact format.
- Autonomous robotics
- Industrial vision
- Automated inspection
- Smart cameras
- Drones and mobile systems
- Embedded artificial intelligence systems
Comparison of NVIDIA Jetson modules
The Jetson Orin NX belongs to the NVIDIA Jetson family of modules designed for embedded AI. The table below compares its main features with the Jetson Xavier NX and Jetson Orin Nano modules.
| Module | GPU | CPU | AI Performance | Memory | Power Consumption |
|---|---|---|---|---|---|
| Jetson Xavier NX | Volta – 384 CUDA | 6-core ARM | 21 TOPS | 8 / 16 GB | 10 – 20 W |
| Jetson Orin Nano | Ampere – 1024 CUDA | 6-core ARM | 40 TOPS | 4 / 8 GB | 7 – 15 W |
| Jetson Orin NX 8 GB | Ampere – 1024 CUDA | 6-core Arm Cortex-A78AE | 117 TOPS | 8 GB | 10 – 40 W |
| Jetson Orin NX 16 GB | Ampere – 1024 CUDA | 8-core Arm Cortex-A78AE | 157 TOPS | 16 GB | 10 – 40 W |
A reference platform for Edge AI
The Jetson Orin NX is a powerful solution for integrating artificial intelligence into compact embedded systems. Combined with the NVIDIA JetPack software platform and the CUDA ecosystem, it enables the development of advanced robotics, computer vision, and autonomy applications.
Technical specifications of the NVIDIA Jetson Orin NX board
- GPU architecture: NVIDIA Ampere
- GPU: 1024 CUDA cores + 32 Tensor Cores
- AI accelerators:
- 8 GB: 1 NVIDIA Deep Learning Accelerator v2.0 (NVDLA) engine
- 16 GB: 2 NVIDIA Deep Learning Accelerator v2.0 (NVDLA) engines
- Vision accelerator: PVA v2.0
- CPU:
- 8 GB: 6-core Arm Cortex-A78AE v8.2 64-bit
- 16 GB: 8-core Arm Cortex-A78AE v8.2 64-bit
- CPU cache:
- 8 GB: 1.5 MB L2 + 4 MB L3
- 16 GB: 2 MB L2 + 4 MB L3
- AI performance:
- 8 GB: up to 117 TOPS
- 16 GB: up to 157 TOPS
- Memory:
- 8 GB LPDDR5
- 16 GB LPDDR5
- Memory bus: 128-bit
- Memory bandwidth: 102.4 GB/s
- Storage: support for external NVMe storage via PCIe
- Power consumption:
- 8 GB: configurable modes 10 W / 15 W / 20 W / 40 W
- 16 GB: configurable modes 10 W / 15 W / 25 W / 40 W
- Power input: 5 V – 20 V
- PCI Express: up to PCIe Gen4
- PCIe configuration: 3 x1 (or 1 x2 + 1 x1) + 1 x4
- Cameras:
- 8 MIPI CSI-2 lanes
- D-PHY 2.1 up to 20 Gbps
- Interfaces: USB 3.2, USB 2.0, UART, CAN, SPI, I2C, PWM, GPIO
- Networking: Gigabit Ethernet (10/100/1000 BASE-T)
- Connector: 260-pin SO-DIMM
- Dimensions: 69.6 × 45 mm
- Junction temperature range: -25 °C to 105 °C
Resources for the NVIDIA Jetson Orin NX board
The NVIDIA Jetson Orin NX is a compact computing module designed for embedded artificial intelligence and Edge AI applications.
