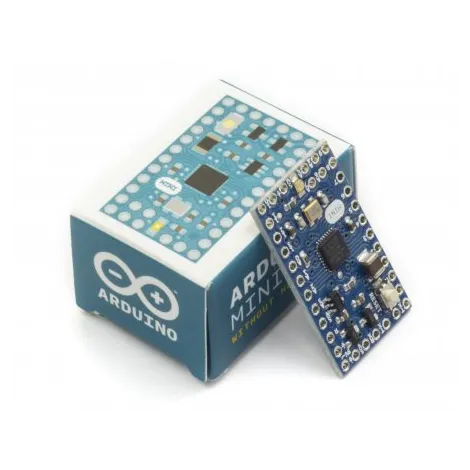

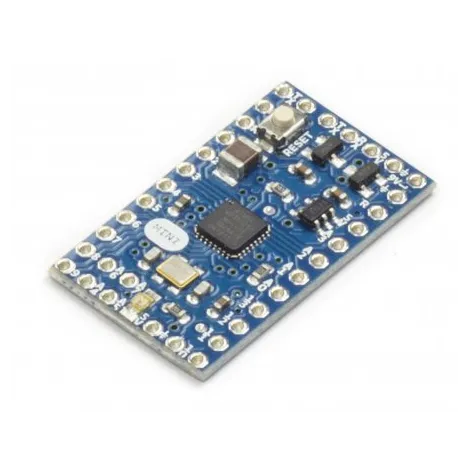

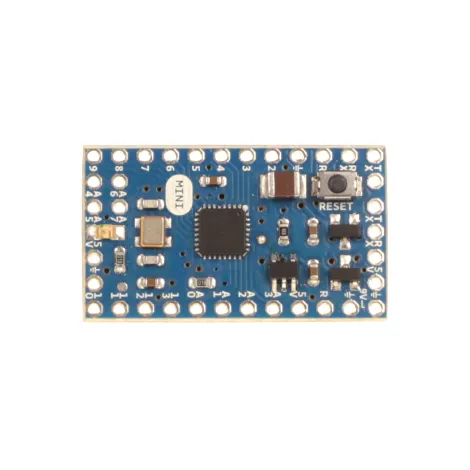

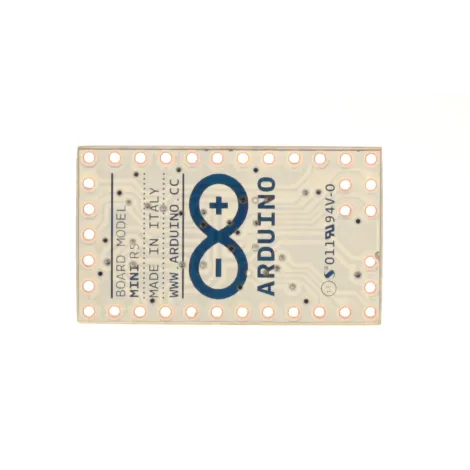

Arduino Mini 05 board

Arduino | A-000000-01102
The Mini 05 from Arduino is mini only in name: more powerful, more ergonomic – yet just as simple to use as the last version!
€21.58
Tax included

Including €0.01 for ecotax

Quantity 1 Available
Get a quote online

Size Chart
x
Size Chart

Arduino Mini 05: Compact, yet it does it all!

You will not regret having chosen the Mini version over a standard Arduino board. It’s based on an Atmega328 microcontroller and has 14 inputs/outputs, including 6 PWM outputs and 8 analogue inputs. The Arduino Mini 05 board is also fitted with a 16 MHz crystal oscillator, a TTL RS connection, an ICSP connector, and lastly a reset button.

On this version of the Mini Arduino, the microcontroller is preloaded with an STK500 bootloader. But you can also bypass the bootloader to use your board with ICSP “in-circuit” serial programming.

Note : Programming the Mini 05 requires a USB-serial, USB-TTL serial, or RS232 TTL serial adaptor.

Arduino Mini 05: New levels of performance

For the new version of its Mini board, Arduino has chosen to keep the really good ideas in version 04, while giving the new revision a more powerful microcontroller: the Atmega328 instead of the Atmega168. Yet you keep the same pin-out, while gaining a very handy reset button! The Mini 05 also makes it easier to implement your circuits by allowing you to fit all your components on the top of the board!

Technical specifications of the Mini Arduino 05

  • Microcontroller: Atmega328
  • Operating voltage: 5 V
  • Input voltage: 7–9 V (take care to never exceed 9 V, at risk of seriously damaging your board)
  • Digital pins: 14 (including 6 PWM outputs)
  • Analogue input pins: 8 (including 4 connected pins)
  • Direct current per I/O pin: 40 mA
  • Flash memory: 32 kB
  • SRAM: 2 kB
  • EEPROM: 1 kB
  • Clock speed: 16 MHz

Resources for the Arduino Mini 05 board:

Below you will find some information to help you get started quickly with your Arduino Mini 05 board:

Mini 05 Arduino board EAGLE files

Mini 05 Arduino board EAGLE files

Diagram of the Mini 05 Arduino board

Diagram of the Mini 05 Arduino board

Mini Arduino guide

More information on the Mini 05
