MegaPi microcontroller

MegaPi microcontroller

MegaPi microcontroller
Makeblock | A-000000-03754
Tax included

Including €0.01 for ecotax

Accessible to beginners, and ideal for Arduino and Raspberry Pi fans, the MegaPi microcontroller can control up to 10 servo motors and 8 DC motors or 4 stepper motors simultaneously!

3 Available

Get it in 24/48h! (see T&C)

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

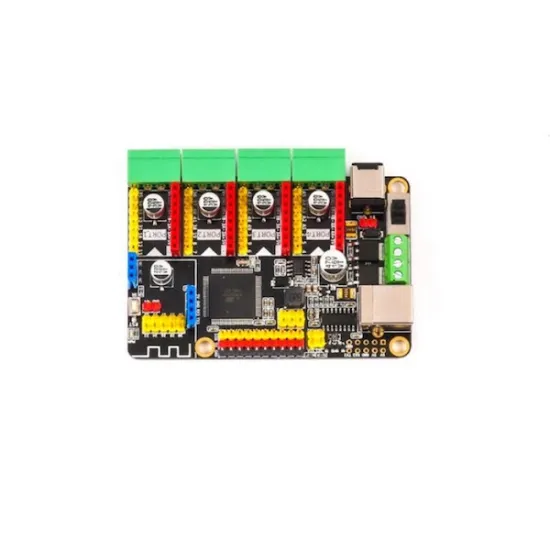

MegaPi Electronic Board: a hub of movement

The MegaPi Electronic Board by Makeblock is above all an ideal tool for connecting a large number of different types of motors required as part of complex robotics projects. Its ATmega2560-16AU processor offers extensive control capabilities and allows you to install servos, DC motors or stepper motors. Its numerous ports and I/O pins make it the perfect choice for designing 3D printers, articulated robotic arms, machine tools, and more.

For introducing STEM and advanced programming

Beginners to electronics will appreciate not only the ease with which they can make connections but also its compatibility with the Makeblock app, a visual programming editor that involves moving coloured blocks. Raspberry Pi and Arduino fans will enjoy having a chance to broaden their experience by designing original programs on Python and in the Arduino IDE.

Technical specifications of the MegaPi board

  • ATmega2560-16AU microcontroller
  • Input voltage: 6–12 Vdc
  • Operating voltage: 5 Vdc
  • 43 I/O pins
  • 3 serial ports
  • 1 I2C interface
  • 1 SPI interface
  • 15 analogue input pins
  • DC current per I/O pin: 20 mA
  • Flash memory: 256 KB
  • SRAM: 8 kB
  • EEPROM: 4 kB
  • Clock speed: 16 MHz
  • Dimensions: 85 x 63 mm


  • 1 MegaPi board
  • 1 x 2.54 mm female header
  • 2 x 5.16 mm female headers
  • 10 M2.5 x 6 mm screws
  • 5 M2.5 x 12+6 brass studs
  • 4 M2.5 x 19 mm brass studs

Resources for the Mega Pi board

Projects, projects and more projects – all possible thanks to the MegaPi Electronic Board!

Project examples:
