Precision and Reliability for Your Detection and Mapping Applications

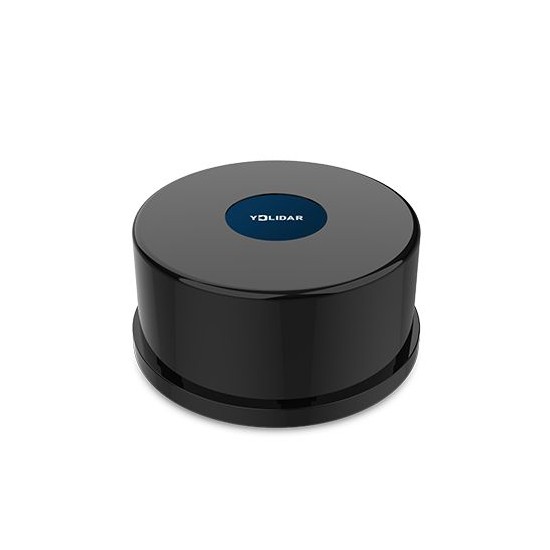

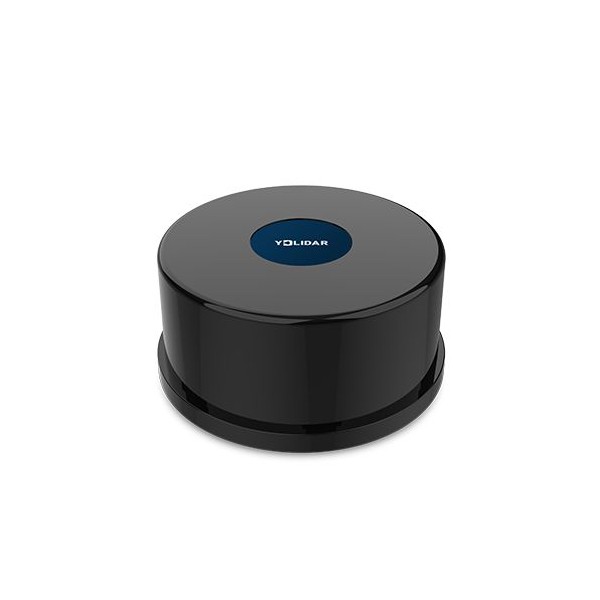

The YDLIDAR TG30 Lidar is a high-quality 360° laser rangefinder designed for a variety of industrial and commercial applications. With its advanced technology and exceptional performance, the TG30 delivers precise and reliable measurements to meet your detection and mapping needs.
- 360° Laser Technology: The TG30 scans its environment in 360 degrees, enabling full coverage and accurate object detection in all directions.
- Extended Range: With a detection range of up to 30 meters, the TG30 is ideal for applications requiring broad coverage and high precision.
- High Angular Resolution: With angular resolution of up to 0.22 degrees, the TG30 can capture fine details and provide accurate data for 3D modeling and mapping.
- Waterproof: With its sealed housing and IP65 protection rating, the TG30 can be used for complex outdoor applications.
- Compact Structure: With its height of 3.47 cm, the TG30 is highly suitable for integration.
- Flexible Communication Interface: With a USB interface, the TG30 is easy to connect to various devices and systems, providing seamless integration into your existing projects.
- Precision and Reliability: Equipped with an automatic error correction mechanism, the TG30 ensures accurate measurements with a low margin of error, ensuring reliable results in all conditions.
What applications?
- Mapping
- Obstacle Avoidance
- Navigation
- Screen Interaction
- Autonomous photogrammetry
- Regional security
Technical Specifications of the YDLIDAR TG30
- Protection Rating: IP65
- Omnidirectional Scanning: 360 degrees
- Angular Resolution: 0.09°-0.22°
- Range: 0.05-30m
- Scanning Frequency: 5-12 Hz
- Telemetry Frequency: Up to 20 kHz
- Class I Eye Safety
- Dimensions: Φ75.8*34.7mm
