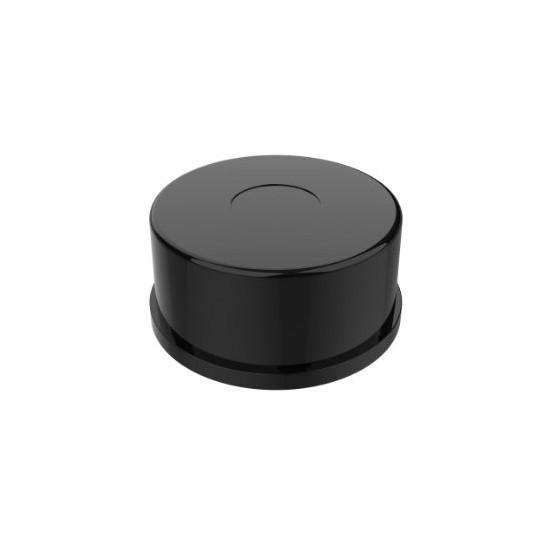

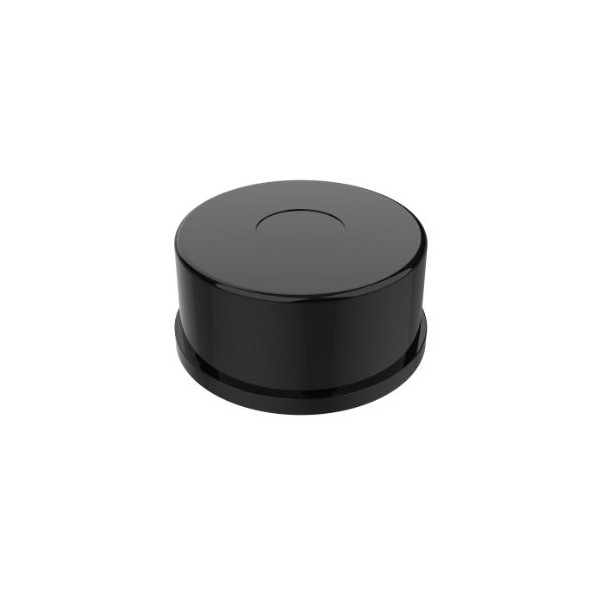

360 Degree Laser Scanner YDLIDAR TG50

360 Degree Laser Scanner YDLIDAR TG50

360 Degree Laser Scanner YDLIDAR TG50
YDLidar | A-000000-06526
654.00 €
20 perc. French VAT inc.

Discover the YDLIDAR TG50, a powerful and precise 360° laser scanner that utilizes 360°2D LiDAR technology for high-frequency distance measurements.

Delivery within 2 to 3 weeks

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

Cutting-edge 360° Laser Scanner for Precise and Fast Measurements

The YDLIDAR TG50 (50m) is a 360° laser scanner that utilizes 360°2D LiDAR technology. Developed by YDLIDAR, this lidar is designed to perform high-frequency and high-precision distance measurements using the Time-of-Flight (ToF) principle. It incorporates advanced optical, electrical, and algorithmic components to ensure optimal performance.

  • 360° Scanning Technology: The TG50 employs 360° laser scanning technology, enabling full coverage of the environment and precise object detection in all directions.
  • Extended Range: With a detection range of up to 50 meters, the TG50 offers extensive coverage and high accuracy, making it an ideal choice for applications requiring long-distance measurements.
  • High Angular Resolution: The TG50 provides angular resolution of up to 0.22°, allowing it to capture fine details and provide accurate data for 3D modeling and mapping.
  • IP65 Protection Rating: The TG50's rugged and waterproof housing provides protection against external elements and enables its use in challenging environments.
  • Versatile Communication Interface: With its USB and UART interface, the TG50 can be easily connected to a variety of devices and systems, offering seamless integration into your existing projects.
  • Precision and Reliability: Equipped with an automatic error correction mechanism, the TG50 ensures precise measurements with a low margin of error, guaranteeing reliable and consistent results.

Suggested Applications

  • Robotics and Industrial Automation
  • Autonomous Vehicles and Drones
  • Security Surveillance and Alarm Systems
  • Mapping and 3D Modeling
  • Precision Agriculture
  • Logistics and Warehouse Management

Technical Specifications of the YDLIDAR TG50

  • Protection Rating: IP65
  • Omnidirectional Scanning: 360 degrees
  • Angular Resolution: 0.09° - 0.22°
  • Range: 0.05 - 50 meters
  • Scanning Frequency: 5 - 12 Hz
  • Telemetry Frequency: Up to 20 kHz
  • Class I Eye Safety
  • Dimensions: Φ75.8 x 34.7 mm
