Suspicious Packages
Spot can investigate suspicious packages and presumed explosives while maintaining a safety perimeter. Equipped with cameras, X-ray devices, and a robotic arm, Spot allows technicians from NEDEX (Neutralization, Removal, Destruction of Explosives) to inspect suspicious packages safely.
Hostage Situations
Spot can gather valuable information to support intervention teams and facilitate remote negotiations, thereby reducing risks for first responders and the public. Indeed, Spot can establish visual and bidirectional communications to gather necessary information for defusing the situation and keeping officers and bystanders out of harm's way.
Dangerous Substance Detection
With specialized sensors, Spot can detect radioactive and nuclear materials, toxic gases, and hazardous substances. Consequently, it can assist field operators in identifying and assessing Chemical, Biological, Radiological, Nuclear, and Explosive (CBRNE) threats.
What's Included:

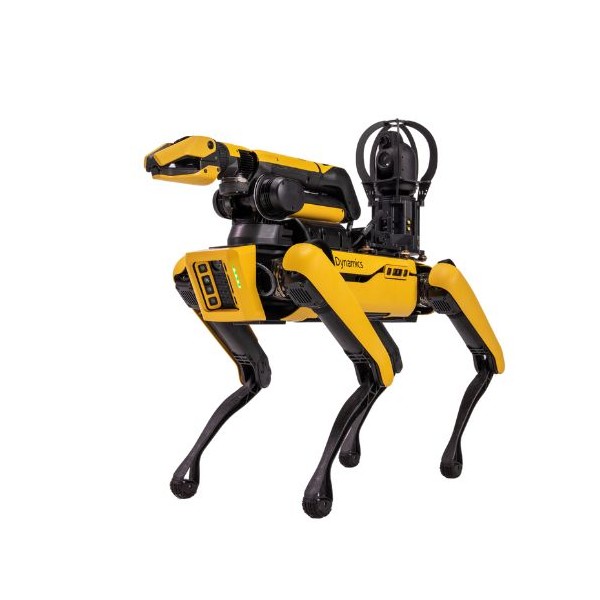

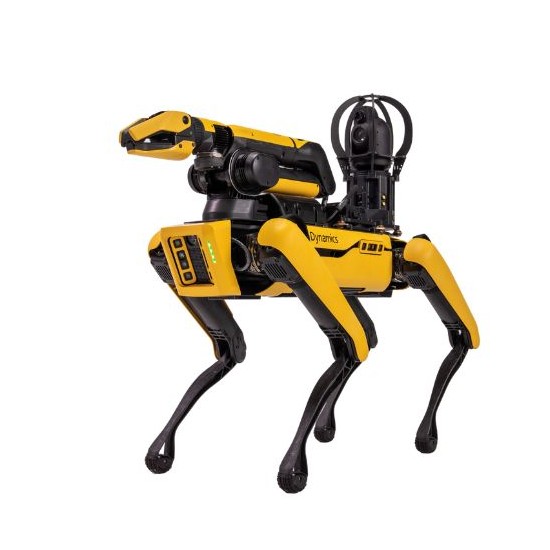

Technical specifications of the Spot Public Safety
- Dimensions:
- Spot robot dimensions: 1100 x 500 x 191 mm
- Default walking height: 610 mm
- Maximum walking height: 700 mm
- Minimum walking height: 520 mm
- Weight: 32.7 kg
- Battery+:
- Capacity: 605 Wh
- Average runtime: 90 min.
- Standby time: 180 min.
- Recharge time: 120 min.
- Weight: 5.2 kg
- Battery charger:
- Input voltage: 100-240 VAC, 50/60 Hz, 5.5A max.
- Output: 35-58.6 VDC, 7.2A max
- Operating temperature: 0 to 40 °C
- Connectivity:
- WiFi dual band 802.11ac support
- Gigabit Ethernet
- Environment:
- IP54 protection
- Operating temperature: -20 to 45 °C
- Terrain sensing:
- Horizontal field of view: 360°
- Range: 4 m
- Lighting: >2 Lux
- Collision avoidance: maintains set distance from stationary obstacles
- Locomotion:
- Speed: 1.6 m/s
- Maximum slope: +/- 30°
- Maximum step height: 300 mm
- Payloads:
- Max. weight: 14 kg
- Mounting area: 850 x 240 x 270 mm
- Mounting interface: M5 T-slot rails
- Connector: DB25 (2 ports)
- Power supply: unregulated DC 35-58.8V, 150W per port
- Integration: application software and hardware interface control documentation included
- Robot case:
- 927 x 546 x 464 mm
- Net weight: 47.6 kg
- Case for battery and charger:
- Dimensions: 559 x 432 x 267 mm
- Weight (without batteries): 9.7 kg
- Controller:
- Dimensions: 143.6 x 274 x 53 mm
- Weight: 580 g
- Touch screen size: 7” (diagonal)
- Resolution: 1920 x 1200
Self-charging dock (optional)
- Dimensions: 1140 x 414 x 403 mm
- Weight: 22 kg
- Input: 100-240 VAC, 50/60 Hz, 8A
- Output: 58V @ 12A
- Time to 80% charge: 50 min (@ 25C) / 2.5 h (@35C)
- Time to 100% charge: 2 h (@ 25C) / 3.5 h (@ 35C)
- Operating temperature: 0 to 35 °C
- Ambient light required
- Gigabit Ethernet passthrough to robot
