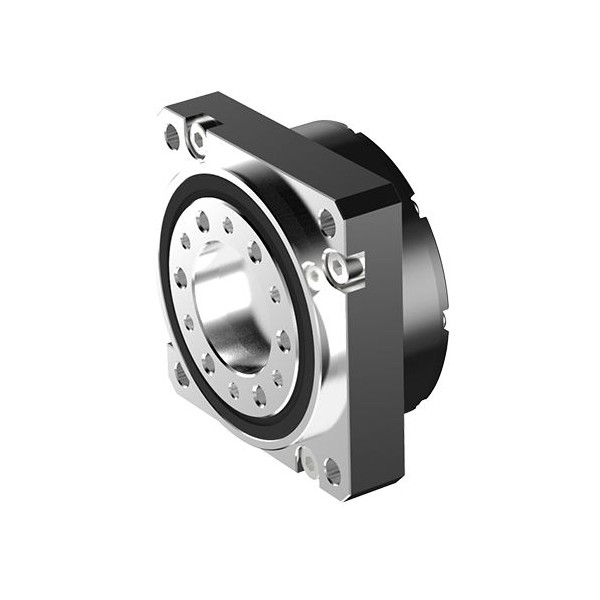

DYD-11-033 High Precision Gear for Dynamixel-P
Robotis | A-000000-04906
Price upon request
The DYD (DYNAMIXEL Drive) is a high-precision gear known for its exceptional impact resistance.
Supplier Reference: 902-0164-000
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
DYD-11-033 Gear: Designed for Dynamixel C or SD Series Servomotors
In general, a traditional cycloidal reducer is known for its robustness, but it is larger and heavier than the harmonic reducer. However, unlike traditional cycloidal reducers, the ROBOTIS DYNAMIXEL DRIVE (DYD) allows for high torque and precise repeatability while being more compact, lighter, and more robust than other reducers on the market.
- High Durability
- Strong Rigidity
- High Precision
- Large Variable Ratio
- Lightweight and Compact Gear Module
Technical Specifications of DYD-11-033 Dynamixel Servomotor Reducer
- Transmission Ratio: 33
- Repetitive Peak Torque: 8.5 Nm
- Nominal Output Torque: 2.2 Nm
- Maximum Input Speed: 6000 rpm
- Average Input Speed: 2000 rpm
- Backlash: < 3.0 arc/min
- Starting Torque: 20 Nm
- Service Life: 7000 hours
- Dimensions: 43 x 43 x 23.5 mm
- Weight: 196 g
Resources for DYD-11-033 (902-0164-000)
The DYD (DYNAMIXEL Drive) is a high-precision gear known for its exceptional impact resistance.
Supplier Reference: 902-0164-000
