Sabertooth 2x32 Motor Driver
Sabertooth 2x32 Motor Driver

Sabertooth 2x32 Motor Driver

Dimension Engineering | A-000000-03022

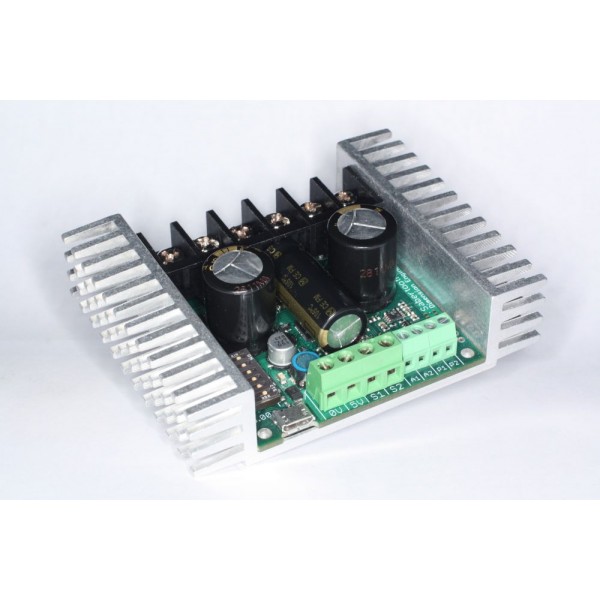

Sabertooth 2x32 is a dual channel motor driver capable of supplying 32A to two motors–with peak currents up to 64A. It can be operated from radio control, analogue, TTL serial or USB inputs. It uses regenerative drive and will boost your robot!

€131.00
Tax included

Including €0.02 for ecotax

Quantity
5 Available
Ask for a quote

Size Chart
x
Size Chart
>

Sabertooth 2x32 motor driver: for your most powerful mobile creations

Delivering 32A per motor, the Dimension Engineering Sabertooth regenerative driver will give you the freedom to operate your heaviest mobile robots–up to 136 kg!– at will. Configure your controller as you see fit, make the most of its additional signal inputs and power outputs, and choose the communication method on the fly. For instance, you can create a radio-controlled mobile robot that’s virtually inexhaustible: the batteries are charged each time it brakes or reverses thrust. You’re truly ready for any adventure!

A full range of regenerative drivers

Dimension Engineering’s motor drivers are available in different powers: 2 x 12A, 2 x 32A, 2 x 5A and 2 x 60A. Choose the right Sabertooth to meet your needs according to the motors you want to power and drive, whatever the operating mode (USB, TTL serial, analogue or radio-controlled). Whether you own a lightweight mobile robot or a combat tank weighting more than 100 kg, you’re good to go!

Technical specifications of the Dimension Engineering Sabertooth motor driver

  • Power: 32A continuous, 64A peak (per channel)
  • Voltage: 6-30V nominal, 33.6V absolute maximum
  • Synchronous regenerative drive
  • Ultrasonic switching frequency: 30 kHz
  • Thermal and overcurrent protection
  • Battery protection mode
  • USB control and monitoring
  • USB serial converter mode for Kangaroo x2
  • Configurable current limiting
  • Custom user modes
  • 12-bit motor outputs
  • Input modes: analogue, R/C, serial (plain text or packetised), USB
  • Dimensions: 70 × 90 × 25 mm
  • Power outputs can act as voltage clamps, brakes, or be controllable

Resources for the Dimension Engineering motor driver

Get to know your Sabertooth 2x32 motor driver and download all the necessary software to make the most of it!

Data sheet
Number of channels
2
Max amps per channel
50-70 A
