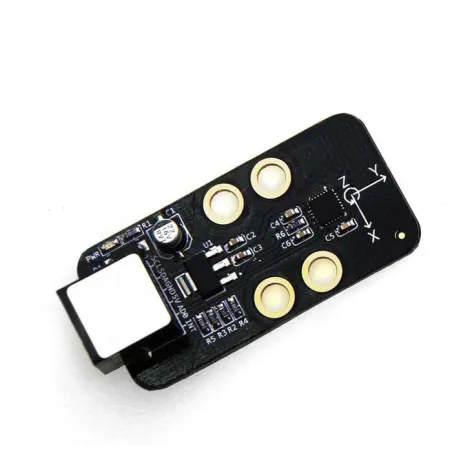

Me 3-Axis Accelerometer and Gyro Sensor
Me 3-Axis Accelerometer and Gyro Sensor

Me 3-Axis Accelerometer and Gyro Sensor

Makeblock | A-000000-03164

This Makeblock module combines a 3-axis gyroscope and a 3-axis accelerometer that are compatible with the Arduino programming boards.

Tax included

Including €0.01 for ecotax

Global shortage
Due to the global shortage, this product is currently unavailable.
Contact us for the delivery date.
Contact us

Size Chart
Size Chart

Me 3-axis accelerometer and gyro sensor: the new navigation centre of your mBot robot

Based on the MPU-6050 module’s DMP (Digital Motion Processing) circuit, this 3-axis accelerometer and gyroscope for mBot can measure the angular rate and the acceleration information of your mobile educational robot with great accuracy.

The DMP circuit supports 6 or 9-axis MotionFusion algorithms and corrects any alignment problems. An RJ25 interface lets you connect your module to its programming board easily, without soldering.

Me 3-Axis Accelerometer and Gyro Sensor

A Me mBot 3-axis accelerometer and gyro sensor to detect obstacles

This accelerometer and gyro sensor easily fits into your mobile robot while equipping it with an efficient and precise obstacle detection system. It is particularly suitable for robotics creations designed for competitions.

Technical specifications of the mBot accelerometer and gyroscope

  • DMP circuit (MPU 6050 module)
  • 3-axis gyroscope:
    • Max. sensitivity: 131 LSB/dps
    • Programmable full-scale range: ±250, ±500, ±1000, and ±2000dps
  • 3-axis accelerometer:
    • Programmable full-scale range: ±2g, ±4g, ±8g, and ±16g
  • 16 mm interval M4 mounting holes, compatible with Makeblock beams
    • Operating voltage: 5V
  • Dimensions: 24 x 48 x 32 mm
  • 12C digital output
  • Compatibility: Makeblock and Arduino platforms
  • Compatible with the mBlock software
  • RJ25 interface (connection cable not included)
Schéma technique de l'accéléromètre 3 axes et gyroscope Me
