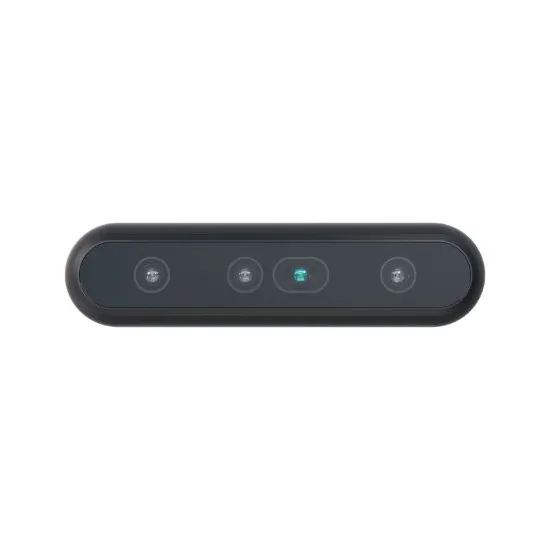

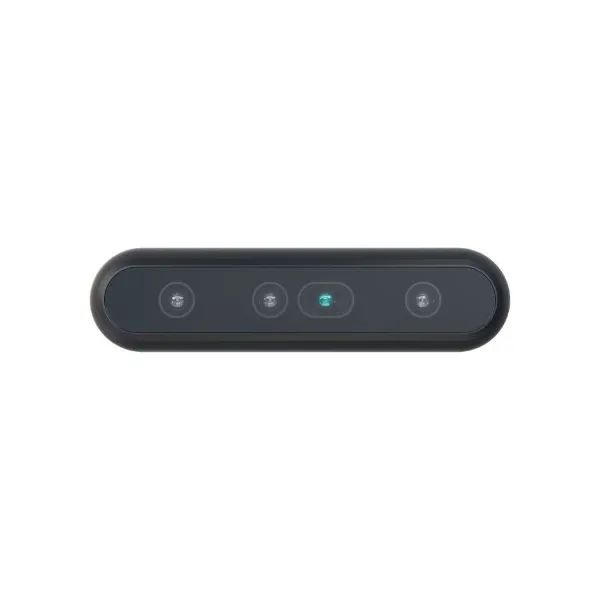

RealSense™ D555 PoE Depth Camera
Realsense | A-000000-07901
$841.03
20 perc. French VAT inc.
A stereo 3D camera over Ethernet with Vision SoC V5, built-in IMU and IP65 housing, designed for demanding industrial vision and robotics applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
D555: 3D vision over Ethernet for industry and robotics
The RealSense™ Depth Camera D555 introduces the Power over Ethernet (PoE) interface to the RealSense range, complementing the USB and GMSL/FAKRA cameras. Powered and connected via a single Ethernet cable, it simplifies integration into existing network architectures and enables long-distance installations, up to 100 meters.
The D555 is the first camera based on the new RealSense Vision SoC V5, a low-power System-on-Chip optimized for computer vision and ultra-low-power AI inference.
The camera is built around a D450 global shutter optical module with extended range, an integrated IMU and an IP65 housing that protects it from dust and water jets. It is driven by SafeDDS, an ISO 26262 certified DDS implementation, interoperable with Fast DDS, which makes it plug-and-play with ROS 2 via its Ethernet interface.
The D555 naturally fits into 3D vision solutions for embedded AI, mobile robotics, logistics and harsh industrial environments.
Why choose the D555 PoE?
- PoE connection: power and data over a single Ethernet cable up to 100 m.
- Easy network integration: ideal for low-latency multi-camera installations.
- AI-optimized Vision SoC V5: disparity processing, motion estimation, vision DSP, ISP IPU7.
- Industrial robustness: IP65 housing, operation from -20 °C to +50 °C.
- ROS 2 compatibility: SafeDDS interoperable with Fast DDS, direct streaming to ROS 2 nodes.
- RealSense™ software ecosystem: supported by SDK 2.0 for simplified integration.
Technical specifications of the D555 depth camera
- Operating environment: indoor / outdoor
- Ingress protection (IP): IP65 (dust-tight and protected against water jets)
- Image sensor technology: Global Shutter
- Operating temperature (housing): -20 °C to +50 °C
- Depth technology: stereo
- Minimum measurable distance (Min-Z) at max resolution: ~26 cm (VGA)
- Depth field of view (FOV): 87° × 58°
- Depth output resolution: up to 1280 × 720
- Depth frame rate: up to 90 fps
- RGB stream resolution: up to 1280 × 800
- RGB frame rate: up to 60 fps
- RGB sensor technology: Global Shutter
- RGB field of view (H × V): 90° × 65°
- PoE connector: RJ45 (power + data)
- USB connector: USB-C (can be used for power and hardware sync)
- Typical power: 5.5 W
- External hardware sync: via the USB connector
- Camera module: RealSense Module D450
- Vision processor: RealSense Vision SoC V5
- Form factor: camera device
- Dimensions (W × D × H): 167 mm × 42 mm × 48 mm
D555 Depth Camera resources
A stereo 3D camera over Ethernet with Vision SoC V5, built-in IMU and IP65 housing, designed for demanding industrial vision and robotics applications.
