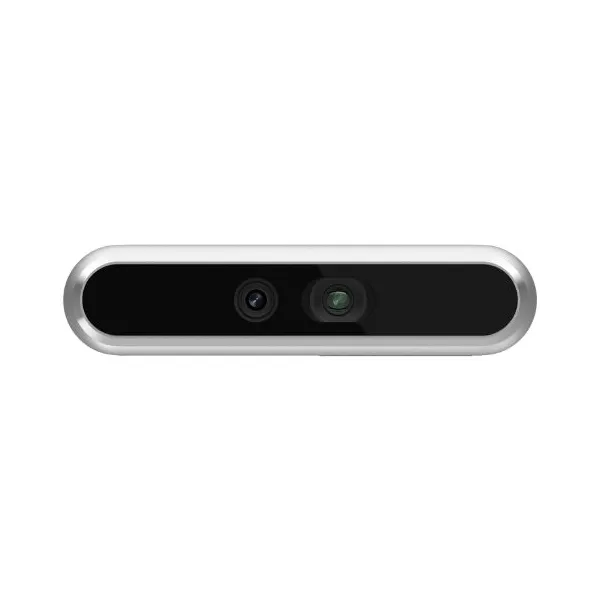

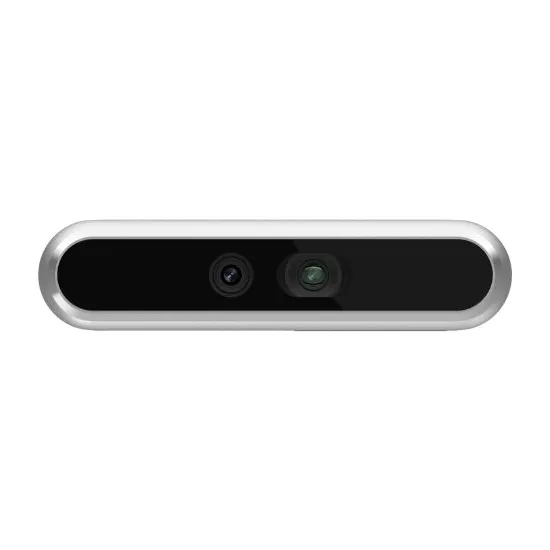

RealSense™ D455f depth camera
Realsense | A-000000-07900
€612.00
20 perc. French VAT inc.
A long-range stereo camera with IR Pass filter for reliable 3D vision in demanding environments, both indoors and outdoors.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
D455f: a long-range depth camera with IR Pass filter
The RealSense™ D455f is based on the long-range depth camera D455, with an additional 750 nm IR Pass filter installed in production. This filter, placed in front of the optics, helps reduce stray reflections, repetitive patterns and false positives, for more robust obstacle detection and more reliable scene reconstruction.
Designed for mobile robotics, industrial vision, autonomous navigation and research, the D455f offers long range, wide field of view and easy integration via the open-source RealSense™ SDK 2.0.
Key benefits of the RealSense D455f
- Long range (ideally from 0.6 m to 6 m) for collision avoidance and navigation.
- IR Pass filter on the sensors to reduce reflections and improve depth robustness.
- Global Shutter stereo sensors for reliable capture in dynamic scenes.
- Aligned RGB and depth images for easier 3D reconstruction and scanning.
- Integrated IMU to refine depth perception when the camera is moving.
- RealSense™ 2.0 SDK cross-platform (open source) for fast integration.
Integration and SDK
The D455f is designed for plug-and-play integration. The IR Pass filter is added directly at the factory on the RealSense production line, enabling a ready-to-use camera with no additional hardware modification.
The camera is supported by the RealSense™ SDK 2.0, an open-source, cross-platform SDK that makes it easy to move from one camera generation to another. You benefit from the same software environment for depth capture, image processing and integration into your applications.
Example applications
- Collision avoidance for mobile robots and AGV/AMR.
- Scene reconstruction and 3D scanning for research and prototyping.
- 3D vision for service robots or autonomous navigation platforms.
- Computer vision projects requiring aligned depth + RGB data.
Technical specifications of the D455f depth camera
- Operating environment: indoor / outdoor
- Image sensor technology: Global Shutter
- Optimal operating range: 0.6 m to 6 m
- Depth technology: stereo
- Minimum measuring distance (Min-Z) at max resolution: ~52 cm
- Depth accuracy: < 2% at 4 m
- Depth field of view (FOV): 87° × 58°
- Depth output resolution: up to 1280 × 720
- Depth frame rate: up to 90 fps
- Depth filter: IR Pass
- RGB filter: IR Cut
- RGB frame rate: 60 fps
- RGB resolution: up to 1280 × 800
- RGB sensor technology: Global Shutter
- RGB field of view (H × V): 87° × 62°
- RGB sensor resolution: 1 MP
- Camera module: RealSense Module D450
- Vision processor board: RealSense Vision Processor D4
- Form factor: camera peripheral
- Dimensions (W × D × H): 124 mm × 29 mm × 26.8 mm
- Connector: USB-C 3.1 Gen 1
- Mounting system: one 1/4-20 UNC threaded mounting point, two M4 threaded mounting points, tripod-compatible
D455f depth camera resources
A long-range stereo camera with IR Pass filter for reliable 3D vision in demanding environments, both indoors and outdoors.
