TIM351 - Sick indoor and outdoor laser scanner for short-range measurement

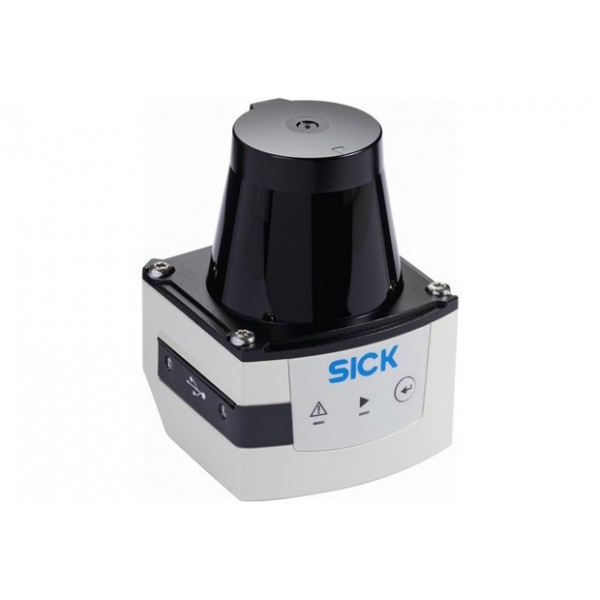

The Sick TIM351 laser scanner

The Sick TIM351xx laser scanner is a compact, light and economical measurement system. Its particularity is to offer a setup without PC simply by using a "Touch and Teach" button on the front side for the machine learning of a triple range. Its industrial design gives it also a robustness and a quality that will meet most of your demands.

Technical characteristics of the Sick TIM351 laser scanner

The characteristics of the Sick TIM351 laser scanners are as follows:

• Functions
  • Indoor use
  • Light type: Infrared (850 nm)
  • Angle: 270 °
  • Scan frequency: 15 Hz
  • Class 1 laser (no eye hazard (EN 60825-1))
  • Range: 0.05 m – 10 m
  • Maximum range with 10% reflectivity: 2m

• Performances
  • Response time: 67 ms
  • Object shape detectable: Almost all
  • Systematic error: ± 60 mm
  • Statistical error: ± 20 mm
  • Built-in application: Fields evaluation
  • Number of sets of fields: 16 fields triplets (48 zones)
  • Simultaneous processing cases: 1 (3 fields)
• Interfaces
  • Connexion : micro USB
  • Switching inputs: 4
  • Switching outputs : 3
  • Delay time : from 134 ms to 30 000 ms (programmable)
• Caractéristiques physiques
  • Weight: 250 g, without connecting cables
  • Dimensions : 60 x 60 x 86mm
  • Power consumption: Typ. 3.5 W, without output load
  • Enclosure rating: IP 67 (EN 60529/A1:2000-02)
  • Protection class: III (EN 60950-1/A11 (2009-03))
  • Ambient operating temperature: -25 °C to +50 °C
  • Storage temperature: -30 °C to +70 °C
  • Vibration resistance: EN 60068-2-6 (2008-02)
  • Shock resistance: EN 60068-2-27 (2009-05)
