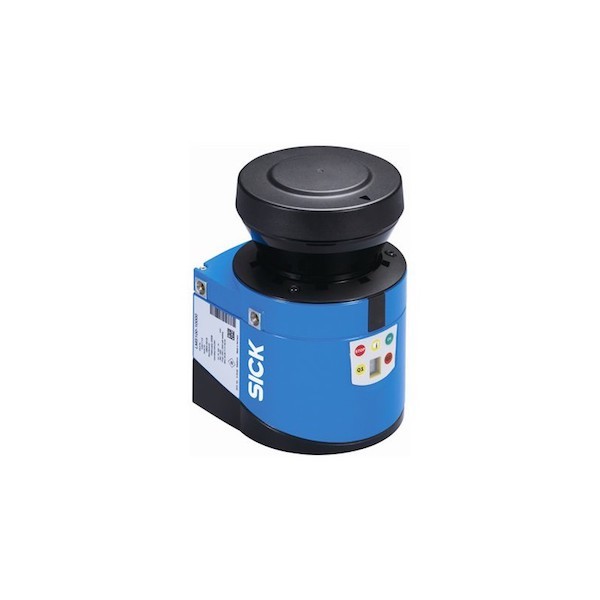

Sick LMS100-10000 laser scanner, indoor version, medium range

The Sick LMS100 laser scanner

The Sick LMS100 laser scanners are economical, high-performance measurement sensors. They are particularly suitable for applications that don’t require a large measuring distance or high measuring speed. Their exclusive multi-echo technology eliminates false positives due to interference from the surroundings.

Multi-echo technology

The surroundings and the weather can cause interference. Fog, dust, rain and even simply a window are all sources of interference for a laser scanner. Thanks to its exclusive multi-echo technology, Sick’s laser scanners offer greater resistance to interference. They can receive multiple echoes of a laser emission, which enables them to distinguish the real measurement from interference, as shown in the diagram below.

Technical characteristics of the Sick LMS100-10000 laser scanner

• Features
  • Field of application: Indoor
  • Version: Short range
  • Light source: Infrared (905 nm)
  • Laser class: 1 (IEC 60825-1 (2007-3))
  • Scanning angle: 270 °
  • Scan frequency: 25 Hz ∕ 50 Hz
  • Angular resolution: 0,25 ° / 0,5 °
  • Operating range: 0.5 m ... 20 m
  • Max. range with 10 % reflectivity: 18 m
  • Number of echoes evaluated: 2
  • Fog correction: Yes


• Performance
  • Response time: ≥ 20 ms
  • Object shape detectable: Practically any
  • Systematic error: ± 30 mm
  • Statistical error: ± 12 mm
  • Built-in application: Terrain evaluation
  • Number of sets of fields: 10 fields
  • Simultaneous evaluation scenarios: 10
• Interfaces
  • Serial (RS-232). Yes
  • Function (Serial (RS-232)): Host, AUX
  • Data transmission speed (serial (RS-232)): 9.6 kbaud ... 115.2 kbaud
  • Ethernet: Oui
  • Function (Ethernet): Host
  • Data transmission speed (Ethernet): 10/100 Mbits/s
  • Protocol (Ethernet): TCP/IP, OPC
  • CAN-Bus
  • Function (CAN-Bus): Output extension
  • PROFIBUS DP: -
  • PROFINET: -
  • DeviceNet: -
  • Binary inputs: 2
  • Binary outputs: 3
  • Optical indicators: 1 × 7-segment indicator (plus 5 LEDs for displaying device status, fouling warning and output status)
• Mechanical and electrical data
  • Electrical connection: 1 x system connector with screw terminal block
  • Supply voltage: 10.8 V DC ... 30 V DC
  • Power: 20 W
  • Housing colour: Light blue (RAL 5012)
  • Enclosure rating: IP IP 65 (EN 60529, paragraph 14.2.5)
  • Protection class: III (EN 50178 (1997;10))
  • Weight: 1.1 kg, less connecting cables
  • Dimensions: 105 mm x 102 mm x 152 mm
• Ambient characteristics
  • Object reflectance: 2 % ... > 1.000 % (Reflectors)
  • Electromagnetic compatibility (EMC): EN 61000-6-2:2005 ∕ EN 61000-6-4 (2007-01)
  • Vibration resistance: EN 60068-2-6 (1995-04)
  • Impact resistance: EN 60068-2-27 (1993-03)
  • Operating temperature: 0 °C ... +50 °C
  • Storage temperature: -30 °C ... +70 °C
  • Stray light resistance: 40.000 lx

Warning:We draw users’ attention to the fact that the LMS laser scanners are not safety components under the meaning of the Machinery Directive 2006/42 EC. Hence they may not be used for protecting persons in high-risk applications without additional control measurements using safety-certified devices.

Resources for the LMS100-10000 LiDAR

Video about configuring zones for the Sick LMS100-10000 laser scanner
