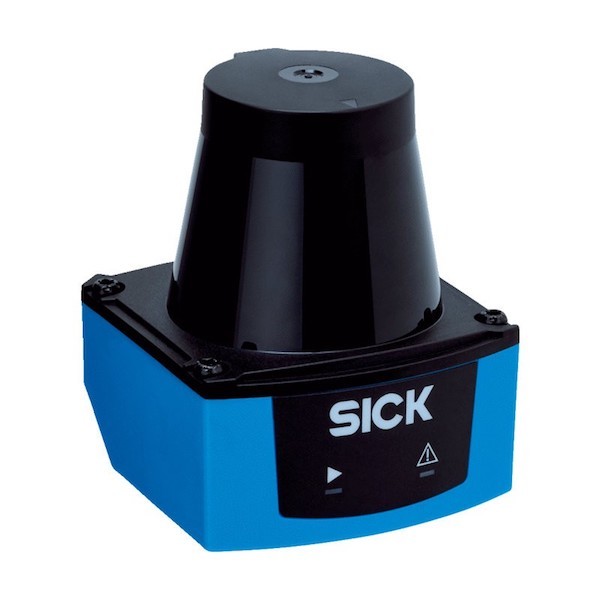

SICK TIM100-3010200 Laser Range Finder

SICK TIM100-3010200 Laser Range Finder

SICK TIM100-3010200 Laser Range Finder
SICK | A-000000-02824
€920.04
Tax included

Including €0.38 for ecotax

Small, compact and very quickly installed, the SICK TIM100-3010200 Laser Range Finder is a good solution for controlling all types of indoor surfaces. Connections not included, contact us for more info.

Quantity
Product in backorder
The product is being resupplied but you can order it right now.
Contact us to know the delivery times

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

TIM100-3010200 Laser Range Finder: for all your small surfaces

The SICK TIM100-3010200 Laser Range Finder offers a maximum range of 3 metres and a horizontal aperture angle of 200°, ideal for monitoring small indoor surfaces. Equipped with HDDM+ technology, it provides excellent detection quality and is quickly up and running thanks to an IO-Link interface.

Particularly compact (90 g with 6 cm sides), it is easily mounted on any indoor or outdoor chassis with no risk of overload.

Multiple industrial applications

This 2D LiDAR range finder by SICK can be used for many industrial applications:

  • To avoid collisions of autonomous mobile machines
  • To detect limit and height violations
  • To install new applications at order-picking stations
  • For automated monitoring

Technical specifications of the SICK TIM100-3010200 Laser Range Finder

Use: indoors Type of range finder: infrared (850 nm) Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014) Horizontal aperture angle: 200° Scanning frequency: 14.5 Hz Angular resolution: 1° Working range: 5 cm to 3 m Range: 1.2 to 1.5 m at 10% remission, depending on the angle Response time: typ. 70 ms Any detectable object shape Systematic error: ± 50 mm Statistical error: 20 mm Integrated application: field evaluation Number of field sets: 1 Simultaneous evaluation cases: 1 Rotary connector IO-Link configuration and cloning 1 switching input 1 switching output Delay time: 69 to 30,015 ms (configurable) Dwell time: 69 to 30,015 ms (configurable) Optical indicators: 2 LEDs (ON, switching status) Electrical connection: 1 x 5-pin M12 device connector (rotatable) Operating voltage: 9 to 28 Vdc Power consumption: typ. 2.2W Housing colour: light blue (RAL 5012) Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class: III (IEC 61140:2016-1) Object remission: 4 to more than 1% (reflectors) Electromagnetic compatibility (EMC): IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005 Vibration resistance: IEC 60068-2-6:2007 Shock resistance: IEC 60068-2-27:2008 Ambient operating temperature: -10 to 50 °C Storage temperature: -30 to 70 °C Ambient light immunity: 80000 lx Weight: 90 g without connecting cables Dimensions: 60 x 60 x 75.8 mm

Resources for the SICK TIM100-3010200 2D LiDAR Range Finder

You will find all the information you need for the TIM100-3010200 Laser Range Finder in the resources below:

LIDAR Sick TIM1xx scanning range

Data sheet
Usage
Indoor
Supply voltage
9-28 Vdc
Scanning frequency
5-20 Hz
Aperture angle
120-210°
Scanning range
1-9 m
Laser beams
2D
