TIM310 - Sick indoor laser scanner for short-range measurement
TIM310 - Sick indoor laser scanner for short-range measurement

TIM310 - Sick indoor laser scanner for short-range measurement

SICK | A-000000-01296

Sick indoor laser scanner with 4 m measuring range. The TIM310 is a new scanning laser sensor for multi-zone detection.

€1,558.80
Tax included

Including €0.10 for ecotax

Quantity
En cours de réapprovisionnement
Victim of its own success! This product is so popular that we ran out!
Resupply is in progress...
Contact us for the delivery date
Ask for a quote

Size Chart
x
Size Chart

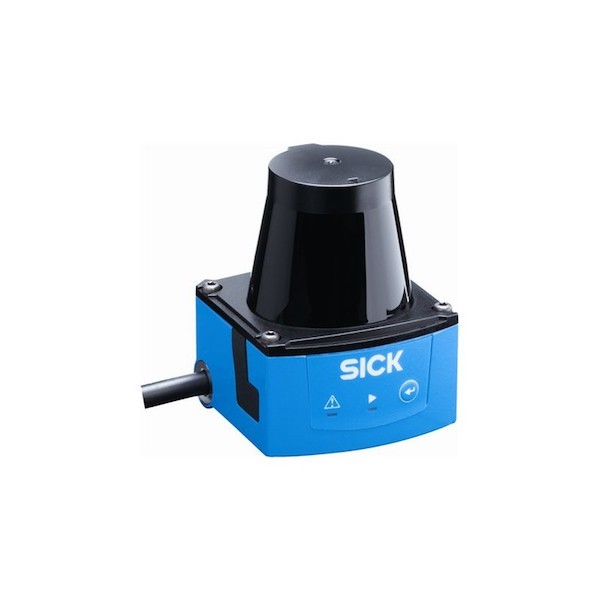

The Sick TIM310 laser scanner

The Sick TIM310 laser scanner is a compact, light and economical measurement system. Its particularity is to offer a setup without PC simply by using a "Touch and Teach" button on the front side for the machine learning of a triple range. Its industrial design gives it also a robustness and a quality that will meet most of your demands.

How to select the right lidar

Technical characteristics of the Sick TIM310 laser scanner

The characteristics of the Sick TIM310 laser scanners are as follows:

  • Functions
    • Indoor use
    • Light type: Infrared (850 nm)
    • Angle: 270 °
    • Angular resolution: 1 °
    • Scan frequency: 15 Hz
    • Class 1 laser (no eye hazard (EN 60825-1))
    • Range: 0.05 m – 4 m
    • Maximum range with 10% reflectivity: 2m
      Scanning range of the laser scanner Sick TIM310
  • Performances
    • Response time: 134 ms
    • Object shape detectable: Almost all
    • Systematic error: ± 40 mm
    • Statistical error: ± 30 mm
  • Interfaces
    • Connection: micro USB
    • Switching inputs: 4
    • Switching outputs: 3
    • Delay: 134 ms – 30,000 ms (programmable)
  • Physical characteristics
    • Weight: 150 g
    • Dimensions: 60 x 60 x 79 mm
    • Consumption: 3 W
    • Enclosure rating: IP65
    • Protection class: III
    • Operating temperature range: -10 °C to +50 °C
    • Storage temperature range: -30 °C to +70 °C
    • Vibration resistance: EN 60068-2-6
    • Impact resistance: EN 60068-2-7
      Dimensions of the laser scanner Sick TIM310

Resources for the TIM310-1030000

Official ROS packages for SICK LiDAR

Video presenting the TIM310 laser scanner

Data sheet
Platform
ROS
Usage
Indoor
Supply voltage
9-28 Vdc
Scanning frequency
5-20 Hz
Aperture angle
240-275°
Scanning range
1-9 m
Laser beams
2D
