Télémètre laser TiM571-2050101

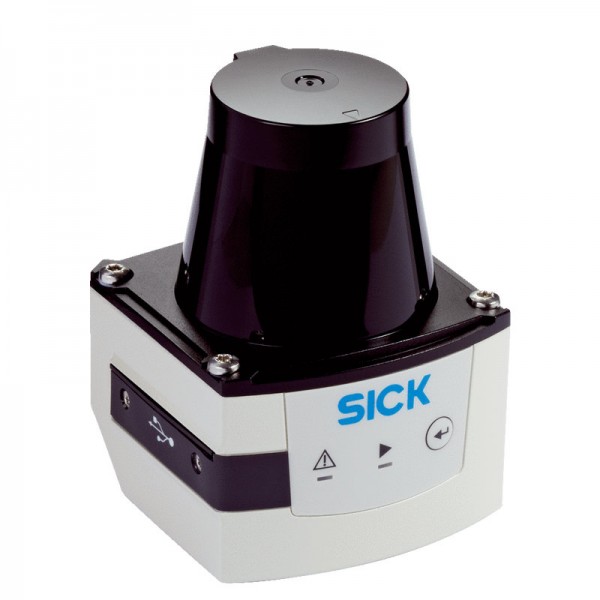

SICK TiM571-2050101 Laser Range Finder

SICK | A-000000-04053

The SICK TiM571-2050101 Laser Range Finder offers a maximum range of 25 metres and is able to operate outdoors and in all weathers, making it an essential detection tool for all your monitoring systems and industrial applications.

€3,360.00
Tax included

Including €0.38 for ecotax

Quantity
En cours de réapprovisionnement
Victim of its own success! This product is so popular that we ran out!
Resupply is in progress...
Contact us for the delivery date
Ask for a quote

Size Chart
x
Size Chart

A 2D LiDAR range finder you can use everywhere

Compact, lightweight and extremely reliable, the TiM571-2050101 Laser Range Finder, developed by SICK, has an aperture angle of 270° and a scanning frequency of 15 Hz. It is effective from 5 cm to 25 m and can detect all kinds of objects.

You will find it quick and easy to mount, simply connect it to any system using its Ethernet cable then configure it and collect all necessary data. This sensor is resistant to dust, parasitic ambient light and water, and its small size and weight mean you can get it quickly up and running in any environment.

Effective in all types of applications

This laser range finder by SICK offers lots of possibilities:

  • In industrial environments, it provides assistance for controlling autonomous vehic.les, monitoring production lines, measuring and detecting objects and pallets, etc.
  • In a surveillance system, it can be used to monitor exhibition rooms, parking entrances and exits, doors, etc

Technical specifications of the SICK 1075091 Laser Range Finder

Use: outdoors Type of range finder: infrared (850 nm) Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014) Horizontal aperture angle: 270° Scanning frequency: 15 Hz Angular resolution: 0.33° Working range: 5 cm to 25 m Range: 8 m at 10% remission Response time: typ. 67 ms Any detectable object shape Systematic error: ± 60 mm Statistical error: 20 mm Integrated application: data output Ethernet, TCP/IP interface micro USB port (AUX, parameterisation) 1 switching output (PNP, “SYNC”/“Device Ready”) Optical indicators: 2 LEDs (ON, Device Ready) Electrical connections:
1 “Ethernet” connection, 4-pin M12 female connector1 “Power/synchronisation output” 5-pin connection, M12 male connector1 micro USB female connector, type BConnector system not included, please contact us about this matter
Operating voltage: 9 to 28 Vdc Power consumption: typ. 4W Housing colour: grey (RAL 7032) Enclosure rating: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class: III (IEC 61140:2016-1) Object remission: 4 to more than 1% (reflectors) Electromagnetic compatibility (EMC): IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005 Vibration resistance: IEC 60068-2-6:2007 Shock resistance: IEC 60068-2-27:2008 Ambient operating temperature: -25 to 50 °C Storage temperature: -40 to 75 °C Ambient light immunity: 80000 lx Weight: 250 g without connecting cables Dimensions: 60 x 60 x 86 mm

Resources for the 1075091 2D LiDAR Range Finder

We have gathered all the information concerning the SICK TiM571-2050101 Laser Range Finder for you below. Enjoy!

Data sheet
Platform
ROS
Usage
Outdoor
Supply voltage
9-28 Vdc
Scanning frequency
5-20 Hz
Aperture angle
240-275°
Scanning range
20-25 m
Laser beams
2D
