SICK LMS111-10100 Laser Range Finder

SICK LMS111-10100 Laser Range Finder

SICK | A-000000-02826

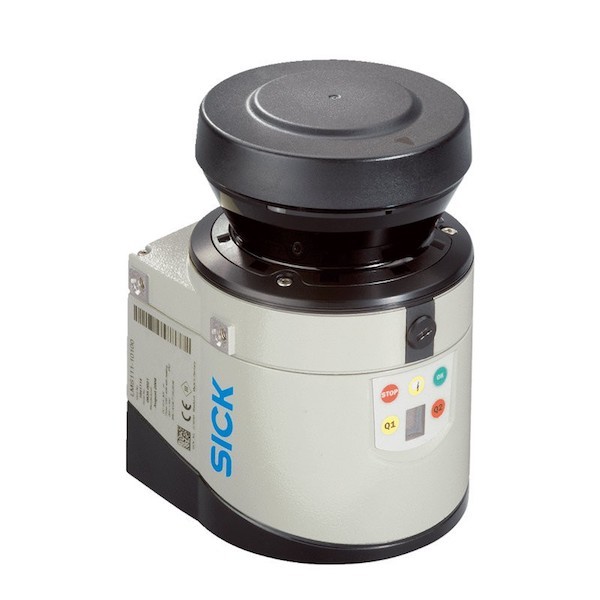

Suitable for a wide range of indoor and outdoor applications, the SICK LMS111-10100 Laser Range Finder offers an excellent compromise between compact size, cost and performance.

€5,292.00
Tax included

Including €0.38 for ecotax

Quantity This product is currently being restocked, please contact us for delivery times.
Get a quote online

Size Chart
x
Size Chart

LMS111-10100 2D LiDAR sensor: long range, expandable and adaptable

Weighing just over one kilo and measuring ten or so centimetres along each side, the LMS111-10100 laser range finder developed by SICK can be integrated easily into all kinds of monitoring systems, or outdoor robotics chassis. It includes in particular:

  • An Ethernet interface for easier installation and maintenance
  • A fog filter
  • A CAN I/O module for multiplying switching outputs
  • Multi-echo technology for mounting the sensor behind a glass panel
  • A scanning frequency of 50 Hz max. for a maximum range of 20 metres

Many uses in all weathers

This laser range finder can be used in a wide range of safety applications, e.g. to prevent collisions in industrial environments, to monitor road traffic, or to protect perimeters or facades. It is VdS certified and can be used both indoors and outdoors thanks to its IP67 protection rating. It remains fully operational from -30 to 50 °C, in rain and in foggy weather.

Technical specifications of the SICK 1041114 Range Finder

  • Use: outdoors
  • Type of range finder: infrared (905 nm)
  • Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
  • Horizontal aperture angle: 270°
  • Scanning frequency: 25/50 Hz
  • Angular resolution: 0.25°/0.5°
  • Working range: 5 cm to 20 m
  • Range: 18 m at 10% remission, 20 m at 90% remission
  • Amount of evaluated echoes: 2
  • Fog correction
  • Response time: ≥ 20 ms
  • Any detectable object shape
  • Systematic error: ± 30 mm
  • Statistical error: 12 mm
  • Integrated application: field evaluation with flexible fields
  • Number of field sets: 10
  • Simultaneous evaluation cases: 10
  • Interfaces:
  • Ethernet, TCP/IP (OPC, Host, 10/100 Mbit/s)
  • Serial, RS-232 (Host, AUX functions; transmission rate: 9.6 to 115.2 Kbaud)
  • CAN (function to extend the number of outputs)
  • Switching inputs: 2 digital inputs and 2 encoder inputs
  • Switching outputs: 3
  • Optical indicators: 7-segment display, 5 LEDs for indicating device status, contamination warning and initial condition
  • Electrical connections: 1 x M12 round connector
  • Operating voltage: 10.8 to 30 Vdc
  • Power consumption: typ. 8W, heating typ. 35W
  • Housing colour: grey (RAL 7032)
  • Enclosure rating: IP67 (EN 60529, section 14.2.7)
  • Protection class: III (EN 50178 (1997,10))
  • Object remission: 2 to more than 1% (reflectors)
  • Electromagnetic compatibility (EMC): EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)
  • Vibration resistance: EN 60068-2-6 (1995-04)
  • Shock resistance: EN 60068-2-27 (1993-03)
  • Ambient operating temperature: -30 to 50 °C
  • Storage temperature: -30 to 70 °C
  • Ambient light immunity: 40000 lx
  • Weight: 1.1 kg
  • Dimensions: 105 x 102 x 162 mm

Resources for the LMS111-10100 Laser Range Finder

LIDAR Sick LMS111-10100 technical drawing

LIDAR Sick LMS111-10100 scanning range

LIDAR Sick LMS111-10100 wiring diagram

Data sheet

Platform
ROS
Usage
Outdoor
Supply voltage
10-30 Vdc
Scanning frequency
25-36 Hz
Aperture angle
240-275°
Scanning range
20-25 m
Laser beams
2D
