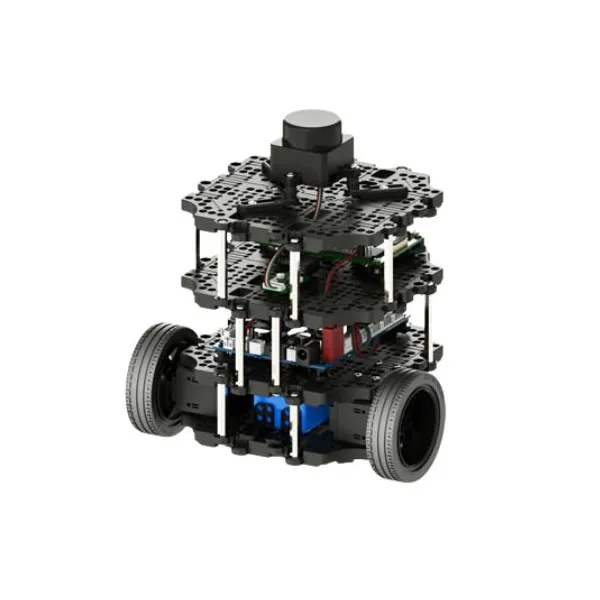

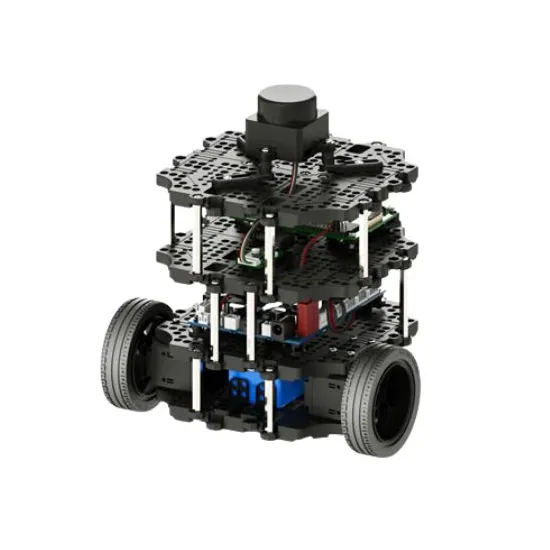

TurtleBot3 Burger Mobile Robot
The Turtlebot3 Burger is a mobile robotics educational platform that’s lightweight, compact, cost-effective and customisable at will. It’s the perfect solution for all those looking for a fun medium to use in their robotics programming workshops, but also for apprentice robotics engineers, and for creators and designers.
Including €0.63 for ecotax
TurtleBot3 Burger: a comprehensive mobile platform
The TurtleBot3 Burger includes all the Burger components you’ll need to get rapidly started with the creation of a mobile robot:
- 1 chassis
- 2 Dynamixel X-series servos (1 in each wheel)
- 1 Open Source control board (OpenCR ARM Cortex-M7, programmable with the Arduino IDE)
- 1 embedded PC (the Raspberry Pi 3 for the Burger version)
- Sensors for navigation (3-axis gyroscope, accelerometer and magnetometer)
- LiDAR 360° LDS-01
- 1 battery
The set can be fully programmed using Open Source and includes software operating under an Apache 2.0 licence. The robot can also be fully operated with OpenCR, which means that you can 3D print its parts or order them off-the-shelf. The idea is to turn the TurtleBot3 into the ideal educational robot, accessible to all users and at all budgets.
There is another version of the Turtlebot3: the Turtlebot3 Waffle, discover the differences between the 2 robots below:
TurtleBot3: an educational robot to scale up
The advantage of the TurtleBot3 (Burger or Waffle version) is that it offers endless evolution opportunities. For instance, you can tap into the full range of Robotis sensors to make your robot even smarter and more interactive. TurtleBot3 already includes an inertial measurement unit featuring the Burger material required for navigational efficiency, and can be connected to various sensors (movement, temperature, colour, contact, and so on).
If you want to learn ROS, advanced robotics and computer science concepts, then Turtlebot3 is a great choice! ROS is a meta-operating system, something between an operating system and middleware. ROS is becoming increasling popular with reserach labs, startups, but also large companies.
You can also transform its mechanical structure radically to turn it into a motorbike or a car, or add a trailer... Simply give free rein to your imagination!
Technical specifications of the TurtleBot3 robot
- Maximum translational velocity: 0.22 m/s
- Max. rotational velocity: 162.72°/s
- Max. payload: 15 kg
- Dimensions: 138 × 178 × 192 mm
- Weight (+ SBC + battery + sensors): 995 g
- Max. traversable step: 10 mm
- Autonomy: 2h 30m
- Charge time: 2h 30m
- PC connection: USB
- LiDAR 360° LDS-01
- IMU: gyroscope 3 axis, accelerometer 3 axis, magnetometer 3 axis
- Power connectors:
- 3.3V / 800 mA
- 5V / 2A
- 12V / 1A
- Expansion pins: GPIO 18 pins, Arduino 32 pins
- Several programmable beep sequences
- Programmable user LED x 4
- Board status LED x 1
- Battery status LED x 1
- Arduino LED x 1
- Push button x 2
- Lithium polymer battery 11.1V 1800 mAh / 19.98 Wh 5C
- Firmware upgrade: via USB / JTAG
- Recharge adapter:
- Input: 100-240V, AC 50/60 Hz, 1.5A @max
- Output: 12 Vdc, 5A
Tutorials for the Turtlebot 3 Burger robot
Many online tutorials are available free of charge to help you with your Turtlebot 3 Burger projects.
- Basic actions and movements with the robot
- Tutorials on the autonomous driving of TB3
- How to perform Machine Learning with a Turtlebot3 robot
- SLAM use with Turtlebot 3 Burger
- Set up Turtlebot 3 for navigation
- Install a digital twin for your simulations with Turtlebot 3 (Gazebo)
Resources for the TurtleBot3 Burger educational robot
TurtleBot3 Burger comes with some very comprehensive documentation, including many download links, code libraries, etc. Check them out below!
- Max. speed
- 0-2,5 km/h
- 15-20 kg
You probably need to set up the OpenUPS board again. Start with downloading the OpenUPS software:
Once the software is installed, click on the "Settings" tab of the pop up window. Click on the "File => OpenUPS" button to load and replace the settings files.
Anonymous A. published the 17/02/2019 following an order made on 08/01/2019
The robot comes in a compact and practical cardboax briefcase. Everything you need to get the robot working is in the box, including the battery, battery charger, tools, screws and nuts, instructions... I've been able to use it with ROS Melodic Morenia in Ubuntu 18.04 Bionic Beaver (requires some more work), even though the Turtlebot3 was developed for ROS Kinetic Kame (not supported in Ubuntu Bionic)
