LED-Ring Deck for Crazyflie Drone

LED-Ring Deck for Crazyflie Drone

LED-Ring Deck for Crazyflie Drone
bitcraze | A-000000-05126
29.33 €
20 perc. French VAT inc.

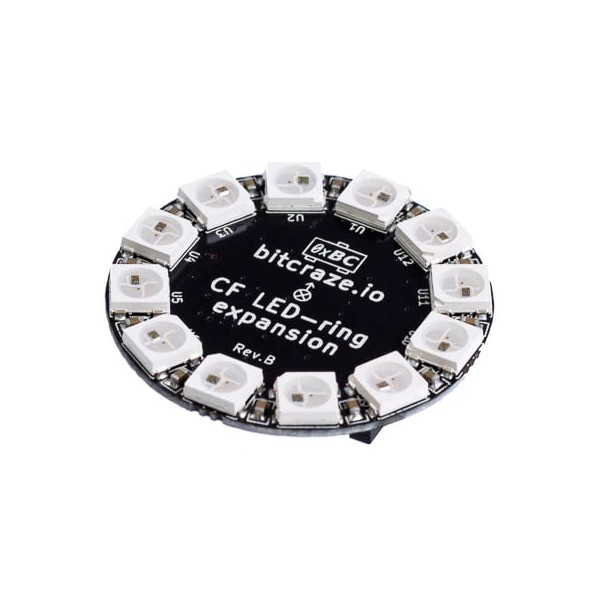

The Crazyflie 2.X LED-ring expansion board will illuminate each of your creations with 12 RGB and 2 white strong LEDs.

6 Available

Get it in 24/48h! (see T&C)

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

LED-ring deck: lighting controlled from your smartphone or computer

The LED-ring deck is an expansion board designed by <Bitcraze to offer original lighting options for your electronic and robotic creations. You can control this circuit from an Android smartphone or iPhone, or from your computer. It’s designed specifically to be mounted underneath the Crazyflie 2.X drone to provide downward facing lighting.

You can even create custom patterns and colour combinations for this LED ring.

Technical specifications of the LED-ring deck for the Crazyflie 2.X drone

  • Designed to be mounted on the underside of the Crazyflie flying platform
  • 12 independently addressable RGB LED modules facing downwards (W2812B)
  • 2 strong white LEDs facing forward, emitting more than 1,800 mcd
  • 1-wire memory for automatic expansion board detection
  • DC/DC step-up/down: 1 A @ 3.8 V from input between 2 and 5.5 V
  • Typical power consumption: 330 mA @ 5 V and 680 mA @ 3 V
  • Dimensions: 33 x 33 x 5.5 mm
  • Weight: 3.3 g

Resources for the Bitcraze LED-ring deck

You’ll find all the information you need for this Crazyflie 2.X drone light accessory right here:
