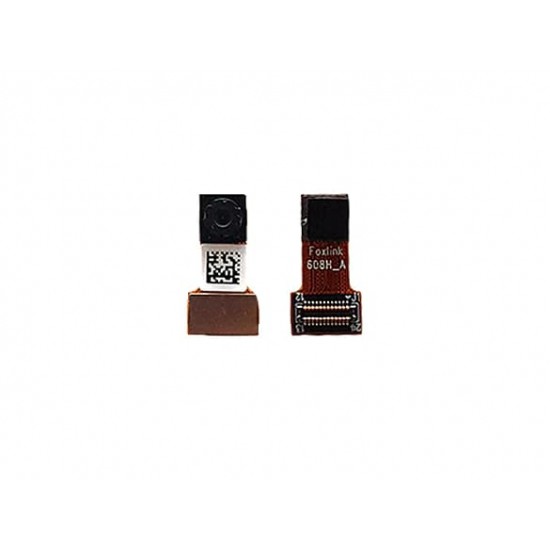

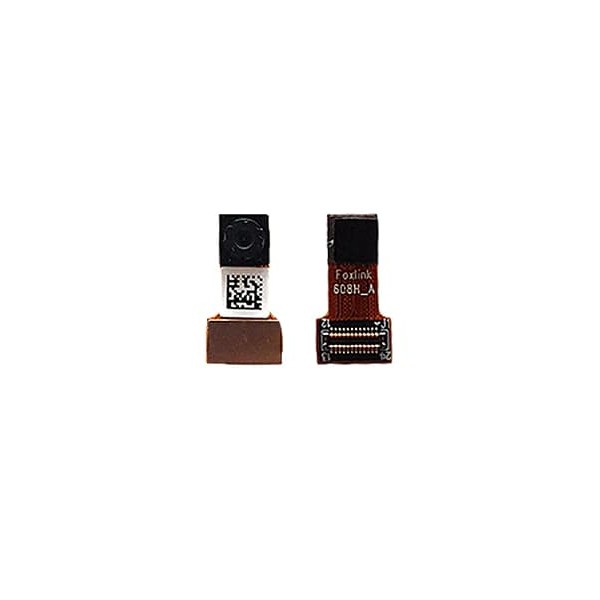

AI-Deck Colour Camera Module
AI-Deck Colour Camera Module

AI-Deck Colour Camera Module

AI-Deck Colour Camera Module
bitcraze | A-000000-05131
€36.00
20 perc. French VAT inc.

Use this colour camera module to install a new image capture system for your Crazyflie 2.1 mini-drone.

Quantity
2 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

AI-deck colour camera module: low energy consumption, high sensitivity

The native Crazyflie AI-deck camera records greyscale images. This new module provides colour images and features, like all on-board cameras worthy of the name:

  • Power consumption ranging from 1.1 mW to 4 mW
  • High sensitivity BrightSense(TM) pixel technology
  • Automatic exposure and gain control loop
  • Self-oscillator and motion detection circuit

Technical specifications of the AI-deck colour camera

  • Electronic rolling shutter
  • Pixel array (active/effective): 324 x 324 / 320 x 320
  • Pixel size: 3.6 μm x 3.6 μm
  • Image diagonal: 1.63 mm
  • Optical format: full frame 1/11”, QVGA 1/13”
  • S/N ratio max.: 38.7 dB
  • Dynamic range (1x/8x): 64 dB / 70 dB
  • Sensitivity at 530 nm: 5.6 V/Lux-sec
  • Output format: 6-bit / 8-bit RAW
  • Temperature: operating -20 °C to 85 °C, stable image 0 °C to 60 °C
  • Focus distance: 35 cm
  • Depth of field: 30 cm to infinity
  • Field of view: horizontal 87°, vertical 87°, diagonal 115°
  • Weight: 0.2 g
  • Dimensions: 7.5 x 5 x 15 mm
  • Connector: Molex-503776-2410

Resources for the AI-deck camera

Below is the complete datasheet for the AI-deck colour camera module:
