The Thrust Upgrade Bundle for Crazyflie 2.X is a set of upgrades designed to improve the flight performance of your Crazyflie Drone.

Quantity
10 Available

Get it in 24/48h! (see T&C)

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Introduction to the Thrust Upgrade Bundle for Crazyflie 2.X

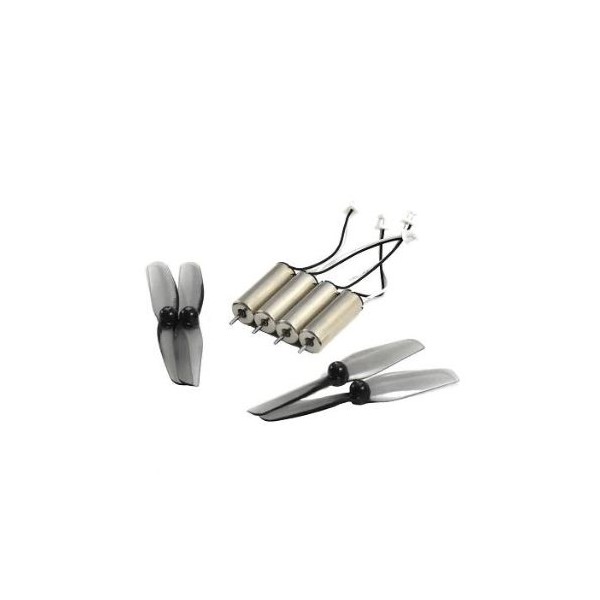

The Thrust Upgrade Bundle for Crazyflie 2.X includes four 7x20 mm DC motors, which are 4 mm longer than the standard 7x16 mm motors. More powerful and durable than the original motors, they provide superior thrust and better flight stability and allow longer flights at higher altitudes.

This pack also includes a set of 4 propellers (2 CW and 2 CCW) specifically designed for the 7x20 mm motors.

Thrust Upgrade Bundle for Crazyflie 2.X: What are the benefits?

  • Improves motor power and durability
  • Improves flight stability
  • Allows for longer flights at higher altitudes
  • Easy to install
  • Compatible with Crazyflie 2.1

Technical specifications of the Thrust Upgrade Bundle for Crazyflie 2.X

7x20 mm DC motors

  • Diameter: 7.0 mm
  • Length: 20.0 mm
  • Shaft length: 5 mm
  • Shaft diameter: 1 mm
  • Weight: 3.6 g
  • Wire length: 32.0 mm
  • Molex picoblade 2P connector
  • Kv: 13 000 rpm/V (±15%)
  • Rated voltage: 3.4V DC
  • Rated current: 2600mA (max)
  • Terminal resistance: 0.75 Ω (±20%)

Propellers

  • 4 propellers (2 CW and 2 CCW)
  • Propeller Diameter: 51 mm (2 inches)
  • Pitch : 38 mm (1.5 inch)
  • Blades : 2
  • Material : Poly Carbonate
  • Weight :0.36 g
  • Hub Diameter : 5 mm
  • Hub Thickness: 5 mm
  • Shaft: 1 mm
