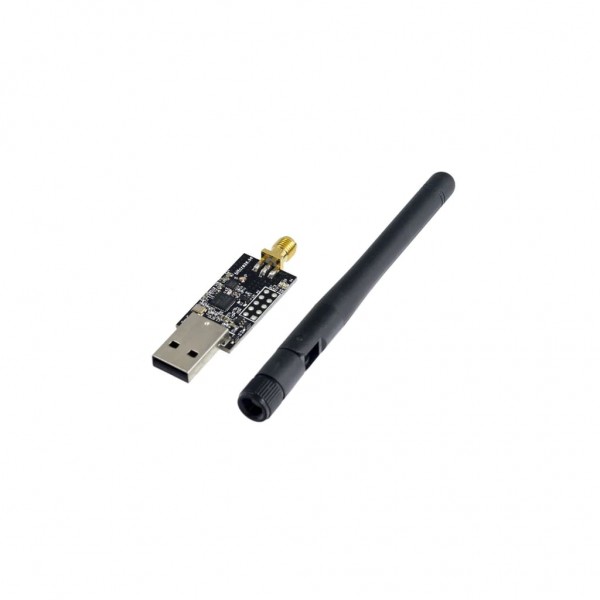

Crazyradio 2.0 2.4 GHz USB Dongle

Crazyradio 2.0 2.4 GHz USB Dongle

Crazyradio 2.0 2.4 GHz USB Dongle
bitcraze | A-000000-05130
53.66 €
20 perc. French VAT inc.

This Crazyradio 2.0 2.4 GHz module lets you communicate with the Crazyflie robotic platform from a distance of over 1 km.

Quantity
11 Available

Get it in 24/48h! (see T&C)

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Up 2 km between two Crazyradio 2.0

Crazyradio 2.0 has a more powerful CPU and will be easier to use for development than its previous version, the Crazyradio PA

The Crazyradio 2.0 2.4 GHz is a radio module with a signal amplifier. It gives 20 dBm of output power, and in good conditions, with a clear line of sight, it can communicate with a Crazyflie 2.1 drone situated over 1 km away. You can increase this range to 2 km in case of communication between 2 Crazyradio modules.

Technical specifications of the Crazyradio 2.0 module

  • Based on the nordic-semiconductor nRF52840
  • 64MHz Cortex-M4
  • 1024KB flash, 256KB ram
  • Radio supporting Nordic protocol, Bluetooth low energy as well as IEEE802.15.4
  • 1Mbps and 2Mbsp bitrate to Crazyflie
  • USB full speed (12Mbps) device
  • Radio power amplifier
  • Output power: 20 dBm
  • Range (clear line of sight): >1 km with Crazyflie 2.1
  • 2 x 5 2.54 mm header for prototyping (not mounted)
  • Hardware support for PPM
  • Open-source firmware, firmware upgrade via USB
  • Low latency
  • Includes: 1 Crazyradio PA module + 1 Duck antenna 2dBi

Resources for the Crazyradio 2.0 2.4 GHz module
