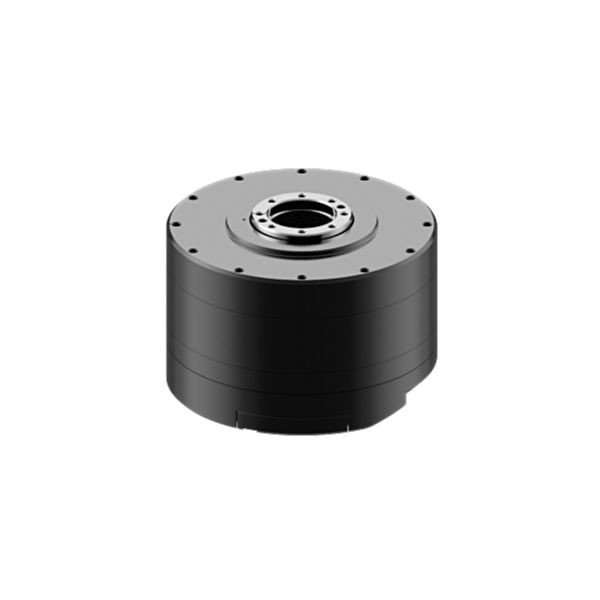

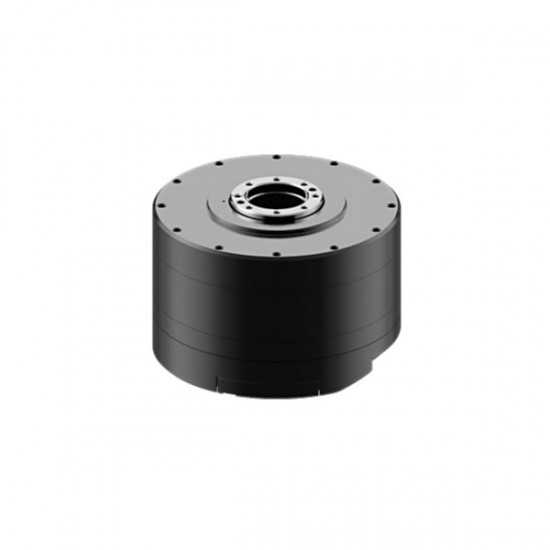

Dynamixel YM080-230-M001-RH Servo
Robotis | A-000000-07159
1,805.78 €
20 perc. French VAT inc.
The Dynamixel M080-230-M001-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
DYNAMIXEL-Y: Performance and Flexibility for Advanced Robotic Systems
The DYNAMIXEL-Y, characterized by its high rotation speed and remarkable precision in position control, is the ideal solution for developing systems that are both fast and precise. Thanks to the integration of electronic brakes and DYD cycloidal gear reducers, it ensures superior safety and reliability.
The range offers unprecedented flexibility by allowing customized selection of motor size, reducer type, and the presence of integrated brakes, thus adapting the product to specific needs in terms of speed and performance. With its compact design, DYNAMIXEL-Y proves to be extremely versatile, finding its place in a variety of applications such as multi-joint systems, linear actuators, servo-cylinders, and more. This versatility makes it a preferred choice for engineers and designers seeking intelligent and high-performance actuation solutions.
Key Features of DYNAMIXEL-Y: Cutting-Edge Performance and Enhanced Safety
- High-performance frameless motor
- Absolute multiturn encoder
- Integrated electric brake for safety
- Integrable DYNAMIXEL DRIVE (DYD)
- Compact and simple design with hollow shaft
- Direct drive motor control
Technical Specifications of Dynamixel YM080-230-M001-RH
- MCU: ARM Cortex-M4 (168 [MHz], 32 [bit])
- Motor: Frameless BLDC
- Transmission speed: 9,600 ~ 10,500,000 bps
- Operating modes: Position control mode, Velocity control mode, Current control mode
- Weight: 530g
- Dimensions: 80 x 54.1 mm
- Hollow shaft size: 19 mm
- Resolution: 524,288 [pulses/rev]
- Encoder specifications: Single-turn: 19 bits (524,288 pulses/rev)
- Multi-turn: 18 bits (262,144 Rev)
- Reduction ratio: -
- Angular play: -
- Radial load: 52 N
- No-load speed: 3,190 [rpm]
- Continuous speed: 2,597 [rpm]
- Continuous torque: 0.62 Nm, Continuous current: 12.6 A
- Maximum torque: 1.24 Nm, Maximum current: 22.4 A
- Output: 230W
- Operating temperature: -5 ~ +55°C
- Control signal: Digital packet
- Physical connection: RS485 multipoint bus
- Serial communication: RS485 asynchronous (8bit, 1stop, No Parity)
- ID: 253 (0 ~ 252)
- Standby current: 40 mA
Resources for Dynamixel YM080-230-M001-RH
The Dynamixel M080-230-M001-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.
