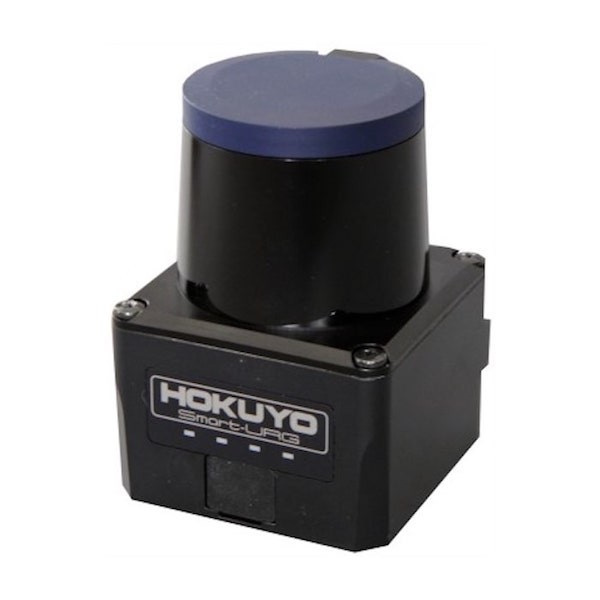

Hokuyo UST-20LX Scanning Laser Range Finder
Hokuyo UST-20LX Scanning Laser Range Finder

Hokuyo UST-20LX Scanning Laser Range Finder

Hokuyo | A-000000-01378
So you thought it was impossible for a device to be even more powerful than the UST-10XL without sacrificing size? Well take a look at the Hokuyo UST-20LX Scanning Laser Range Finder: just as light, just as sturdy – but with much sharper vision!
€2,736.00
Tax included

Including €0.20 for ecotax

Quantity 1 Available
Get a quote online

Size Chart
x
Size Chart

Equip your mobile robot with a UST-20LX Scanning Laser Range Finder

Given its small size and light weight, the UST-20LX can be easily installed as a sensor for a mobile robot. And thanks to its many qualities, your creation will be able to get around to its heart’s content without risking bumping into anything it shouldn’t! The UST-20LX range finder sees everything for 20 m ahead and 270° around, and sees it quickly and accurately: its scan speed reaches 40 Hz, and yet the margin of error is no more than 40 mm. So for equivalent size and weight, and with the same protection rating, the UST-20LX offers 10 m extra vision in relation to its baby brother the USL-10LX! What’s more, the new generation of Hokuyo scanning laser range finders offers an Ethernet interface and uses an SCIP2.2 communication protocol. No data will escape you!

A low-consumption range finder

And offering such a fine performance doesn’t stop your UST-20LX Scanning Laser Range Finder from being a frugal eater: just 0.15 A (even slightly less) when the previous models drew more than twice that! As for the supply voltage, you’re free to choose between 12 and 24 Vdc.

Technical specifications of the UST-20LX Scanning Laser Range Finder

  • Max. range: 20 m
  • Scanning range: 270°
  • Angular resolution: 0.25°
  • Scan speed: 40 Hz
  • Supply voltage: 12 or 24 Vdc
  • Consumption: 0.15 A or less
  • Interface : Ethernet
  • Dimensions : 50x50x70 mm
  • Weight: 130 g
  • IP 65

Resources for the Hokuyo UST-20LX Scanning Laser Range Finder

Below you will find more information to help guide you when using your UST-20LX Scanning Laser Range Finder:

Presentation of the Hokuyo UST-20LX Scanning Laser Range Finder

Presentation of the Hokuyo UST-20LX Scanning Laser Range Finder

Specifications of the Hokuyo UST-20LX Scanning Laser Range Finder

Specifications of the Hokuyo UST-20LX Scanning Laser Range Finder

Communication protocol of the Hokuyo UST-20LX Scanning Laser Range Finder

Communication protocol of the Hokuyo UST-20LX Scanning Laser Range Finder

How to select the right lidar
