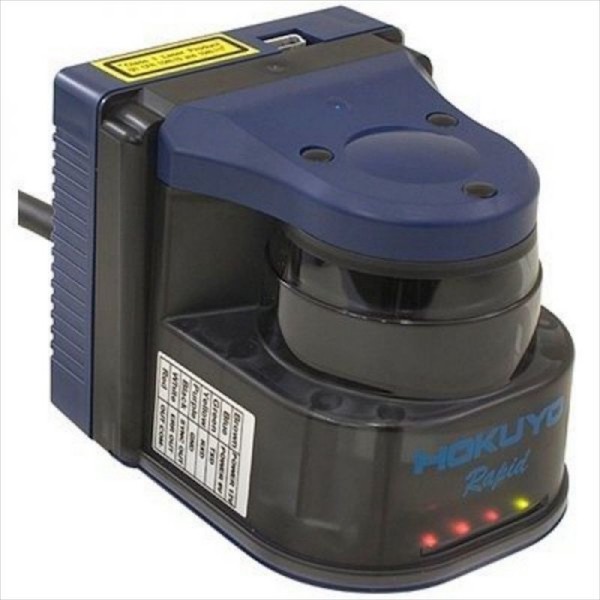

Hokuyo UBG-04LX-F01 LiDAR
Hokuyo UBG-04LX-F01 LiDAR

Hokuyo UBG-04LX-F01 LiDAR

Hokuyo | A-000000-04039

Offering a scanning time almost four times faster than the URG-04LX telemeter, the Hokuyo UBG-04LX-F01 laser range finder remains very compact with a low power consumption.

Tax included

Including €0.10 for ecotax

En cours de réapprovisionnement
Victim of its own success! This product is so popular that we ran out!
Resupply is in progress...
Contact us for the delivery date
Ask for a quote

Size Chart
Size Chart

Hokuyo UBG-04LX-F01: a laser telemeter designed for mapping and obstacle detection applications

The Hokuyo UBG-04LX-F01 LiDAR is a laser scanning solution that’s both compact and economical, offering excellent value for money. Perfect for indoor applications, it is able to report ranges up to 5.6 m in a 240° arc. As it’s lightweight and compact, you can integrate it easily into any electronic or robotised systems.

Its USB and serial interfaces make it possible to power it using your PC and to exchange data through its RS-232 port.

What’s different from the Hokuyo URG-04LX telemeter?

The Hokuyo UBG-04LX-F01 laser range finder fits into a similar compact and lightweight footprint as its predecessor, the URG-04-LX LiDAR, and its range, scan window, and resolution are the same.

The main difference is the scanning frequency: 35 scans per second versus 10 for the URG-04LX model. You get a more powerful telemeter for all your mapping or obstacle detection projects, fitted on a mobile robot, for example.

Technical specifications of the Hokuyo UBG-04LX-F01 LiDAR

  • Range: 5.6 m
  • Scan window: 240°
  • Resolution: 0.36°
  • Scanning frequency: 35 scans/second
  • Scanning time: 28 ms
  • Voltage rating: 12 Vdc
  • Power consumption: 370 mA max.
  • Interfaces: RS232, USB
  • Light source: Class 1 laser (785 nm wavelength)
  • LMS Laser measurement system
  • LRF Laser range finder
  • Operating temperature range: -10 to 50°C
  • Max. ambient humidity: 85%
  • Dimensions: 60 x 75 x 60 mm
  • Weight: 260 g

Resources for the UBG-04LX-F01 range finder

Check out the links below which explain some of the capabilities and applications of the Hokuyo UBG-04LX-F01 LiDAR:

Data sheet
Supply voltage
12 Vdc
Scanning frequency
25-36 Hz
Aperture angle
Scanning range
1-9 m
Laser beams
