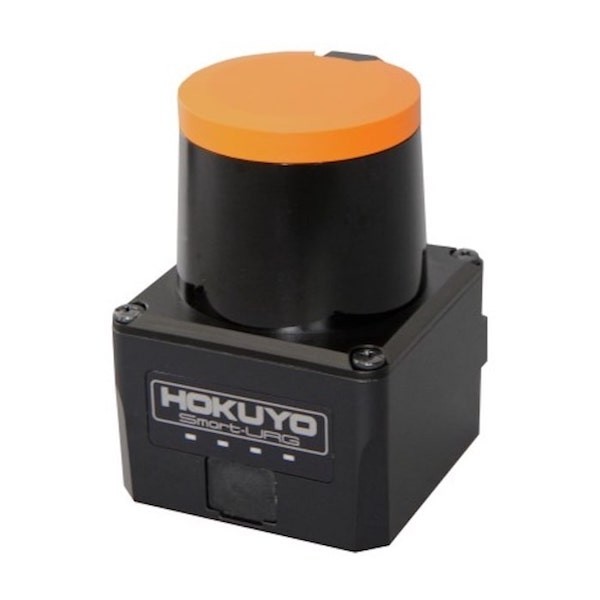

Hokuyo UST-10LX Scanning Laser Range Finder
Hokuyo UST-10LX Scanning Laser Range Finder

Hokuyo UST-10LX Scanning Laser Range Finder

Hokuyo | A-000000-01377
Looking for a way to make your robot’s movements more precise? Do you want your mobile robot to be able to avoid obstacles and follow certain markers? By connecting a UST-10LX Scanning Laser Range Finder to your creation you will make it even more autonomous, even more responsive to its immediate surroundings!
€1,638.00
Tax included

Including €0.20 for ecotax

Quantity This product is currently being restocked, please contact us for delivery times.
Get a quote online

Size Chart
x
Size Chart

Hokuyo UST-10LX Scanning Laser Range Finder: The new creation from Hokuyo

Along with the UST-20LX, the UST-10LX is one of the latest generation of portable scanning laser range finders. With the UST-10LX Scanning Laser Range Finder, you have a compact, light, and yet extremely effective and accurate device. With a 40 Hz scanning frequency and an accuracy of ± 40 mm, this tiny device (just 70 mm high!) communicates its data via a 100BASE-TX Ethernet interface, using an SCIP 2.2 communication protocol. It’s also fully protected against dust, and very well protected against water splashes, with an IP65 housing for safe use outdoors.

Hokuyo UST-10LX Scanning Laser Range Finder: Advantages of the new model

What does this laser range finder have that the previous versions haven’t? Although much lighter and smaller, it has an improved protection rating and above all a greater scanning range – 10 m compared with 5.6 m for the previous models! The UST-10LX also consumes much less power: 0.15 A compared with 0.4 A for the URG-04LX. All in all less heavy, less bulky, more economical and more efficient: the UST-10LX Scanning Laser Range Finder will be extremely popular!

Technical specifications of the UST-10LX Scanning Laser Range Finder

  • Max. range: 10 m
  • Scanning range: 270°
  • Angular resolution: 0.25°
  • Scan speed: 40 Hz
  • Supply voltage: 12 or 24 Vdc
  • Interface: Ethernet
  • Dimensions: 50 x 50 x 70 mm
  • Weight: 130 g
  • IP65

Resources for the Hokuyo UST-10LX Scanning Laser Range Finder

Below you will find more information to help guide you when using your UST-10LX Scanning Laser Range Finder:

Presentation of the Hokuyo UST-10LX Scanning Laser Range Finder

Presentation of the Hokuyo UST-10LX Scanning Laser Range Finder

Specifications of the Hokuyo UST-10LX Scanning Laser Range Finder

Specifications of the Hokuyo UST-10LX Scanning Laser Range Finder

Communication protocol of the Hokuyo UST-10LX Scanning Laser Range Finder

Communication protocol of the Hokuyo UST-10LX Scanning Laser Range Finder

How to select the right lidar

Data sheet

Platform
ROS
Usage
Indoor
Supply voltage
12-24 Vdc
Scanning frequency
40-50 Hz
Aperture angle
240-275°
Scanning range
10-19 m
Laser beams
2D
