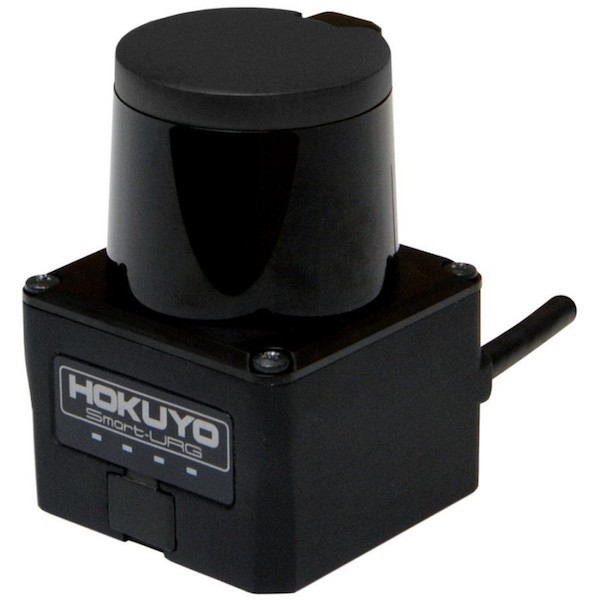

Specifically designed for indoor robotics, the Hokuyo UST-05LN LiDAR is a compact, lightweight, and very accurate obstacle detection sensor.

€1,437.60
Tax included

Including €0.10 for ecotax

Quantity This product is currently being restocked, please contact us for delivery times.
Get a quote online

Size Chart
x
Size Chart

Hokuyo UST-05LN: report all obstacles up to 5 m

The Hokuyo UST-05LN LiDAR belongs to the new family of Hokuyo LiDARs dedicated to autonomous robotics. It is able to scan ranges up to 5m in a 270° arc at a scan speed of 25 msec.

The UST-05LN LiDAR triggers outputs when objects come within the scanning path. It can detect them with ±40 mm accuracy with a 0.5° pitch only. The USB interface allows you to connect it to your PC for setup and programming operations.

Ideal for your on-board navigation systems

Lightweight (130 g) and small (50 x 50 x 70 mm), the Hokuyo UST-05LN LiDAR easily integrates into any robotised systems.

Drawing a maximum of 150 mA (400 mA at start-up), it is powered by its own battery and can equip your mobile robot’s autonomous navigation system. It can be installed on your robotised systems to ensure an efficient obstacle detection.

Technical specifications of the UST-05LN LiDAR

  • Input voltage: 12-24V (operating range: 10-30V, 10% ripple)
  • Supply current: 150 mA or less (400 mA at start-up)
  • Light source: class 1 laser semiconductor 905 nm
  • Detection range:
    • 60 mm to 5 m (white sheet)
    • 60 mm to 2 m (10% diffuse reflectance)
  • Minimum detectable size: 130 mm (according to distance)
  • Accuracy: +/-40 mm
  • Standard deviation: σ < 20 mm
  • Scan angle: 270°
  • Scan speed: 25 msec (motor speed: 2,400 rpm)
  • Angular resolution: 0.5°
  • Start-up time: within 10 sec (start-up time differs if malfunction is detected)
  • Outputs:
    • Photo coupler, open collector output: 30V, 50 mA
    • 1. Output 1 OFF during object detection
    • 2. Output 2 OFF during object detection
    • 3. Output 3 OFF during object detection
    • Malfunction output: ON during normal operation, OFF during malfunction
    • Synchronisation output: synchronisation signal during Master/Slave operation
    • Note: outputs 1 to 3 are switched off during malfunction state
  • Inputs:
    • Photo-coupler, common anode, power supply is 4 mA when input is on
    • Input 1 to 5: area switching inputs
    • Synchronisation input: synchronisation signal during Slave operation
  • Output response time: 66 to 3,241 msec (OFF/ON)
  • Hysteresis:
    • High: 6.25%
    • Low: 3.125%
    • No hysteresis (default)
  • Interface: USB
  • LED display:
    • Blue LED: ON during normal operation, blink during start-up, configuration and malfunction state
    • Orange LED 1: output 1 ON during object detection
    • Orange LED 2: output 2 ON during object detection
    • Orange LED 3: output 3 ON during object detection
  • Synchronisation:
    • Master/Slave operation mode (can set by using Area Designer)
    • Synchronisation in slave mode: 0°
    • Synchronisation in slave mode: 90°
    • Synchronisation in slave mode: 180°
    • Synchronisation in slave mode: 270°
  • Surrounding intensity: less than 15,000 lx
    • Note: avoid direct sunlight or other illumination sources as it may cause sensor malfunction
  • Ambient temperature/humidity: -10 to 50°C, 85% humidity (without dew or frost)
  • Storage temperature/humidity: -30 to 70°C, 85% humidity (without dew or frost)
  • Polycarbonate front case, aluminium rear case
  • Weight: 130 g
  • Dimensions: 50 x 50 x 70 mm

Resources for the UST-05LN LiDAR

Data sheet

Code douanier
9015109000
Origine
JP
