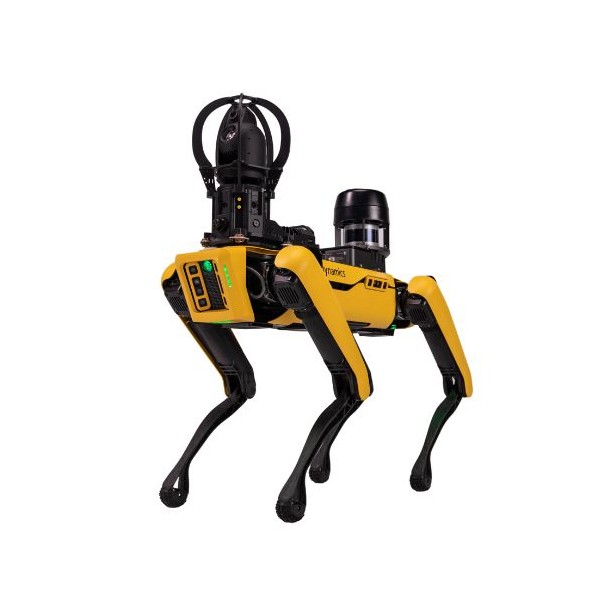

Spot Inspection

Spot Inspection

Spot Inspection
Boston Dynamics | A-000000-06616
Price upon request

The Spot Inspection package provides reliable real-time data to automate all your inspection missions.

Delivery within 6-9 weeks

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

Automation of Inspection Tasks

With the Spot Enterprise Asset Management Kit, proactively collect the data you need to power your predictive maintenance. Equipped with various payloads, it provides extremely accurate real-time data.

Data at your fingertips

Spot - Thermal Inspection

Thermal Inspection

Equipped with a thermal camera, Spot can inspect pumps and motors and trigger an alert when the equipment goes beyond a defined range.

Gauge Reading

Spot can read and analyze analog gauges, pressure gauges, flow meters, etc., and trigger an alert in case of anomalies.

Spot Inspection - Gauge Reading
Spot - Acoustic Inspection

Acoustic Inspection

Spot can perform acoustic imaging inspections to identify potential duct leaks with the optional Fluke SV600 module.

Spot Inspection: Included Payloads

SCOUT: Eyes and Ears in the Field

SCOUT is an application that allows you to remotely control your Spot robot at any time and from anywhere.

  • 24/7 uninterrupted site access, ensuring instant response to incidents without requiring human operators, regardless of the time.
  • Real-time visualization: Use Spot to gather visual, thermal, and auditory data. Spot maneuvers with agility in hard-to-reach areas.
  • The versatile SCOUT interface can manage different Spot robots and multiple users connected to the same server. Thus, the pilot and other users can observe what Spot sees live.

Spot CAM+IR: 3 Cameras + 1 Microphone

The Spot CAM + IR allows capturing and recording color images over a panoramic field of view. This payload offers numerous advantages:

  • Ability to enjoy powerful zoom and track movements with a PTZ x30 camera
  • Capability to detect the presence of obstacles, whether living or inanimate, even in unfavorable lighting conditions, thanks to the infrared camera
  • Capturing and recording of environmental sound via a shotgun microphone with 256 GB data storage capacity

Thanks to the CAM+IR kit, Spot can enter spaces you'd prefer to avoid. This kit operates in a temperature range of -20 to 65°C and has dust and ingress protection rated IP65.

Spot EAP 2: Enhanced Autonomy Package

Featuring a Velodyne VLP-16 LiDAR, the SPOT EAP2 model offers a detection range of up to 100 meters and a complete 360-degree field of view. Thanks to this LiDAR technology, Spot can create larger and more accurate maps, allowing it to navigate effectively in large spaces.

Furthermore, the SPOT EAP2 is equipped with the integrated SPOT CORE I/O processor, pre-configured for immediate use. With the NVIDIA Jetson Xavier NX module, Spot can continuously perform vision-based inspections and data collection.

Spot Docking Station: Simplified Recharging

With this recharging station, Spot can perform long-duration missions and recharge autonomously wherever it is. This feature proves especially useful in industrial environments or if you intend to use Spot as a host or service robot in an extended area.

What's Included:

  • Spot Platform
  • Spot Docking Station
  • Spot CAM+IR
  • Spot EAP 2
  • Scout Application
  • Batteries x2
  • Recharging Station
  • Samsung Active 3 Tablet
  • Calibration Panel
  • Transport Case
Banner - GRlab - Bureau d'étude et intégrateur en robotique mobile & robot Spot

Technical specifications of the Spot Inspection Robot

  • Dimensions:
    • Spot robot dimensions: 1100 x 500 x 191 mm
    • Default walking height: 610 mm
    • Maximum walking height: 700 mm
    • Minimum walking height: 520 mm
    • Weight: 32.7 kg
  • Battery+:
    • Capacity: 605 Wh
    • Average runtime: 90 min.
    • Standby time: 180 min.
    • Recharge time: 120 min.
    • Weight: 5.2 kg
  • Battery charger:
    • Input voltage: 100-240 VAC, 50/60 Hz, 5.5A max.
    • Output: 35-58.6 VDC, 7.2A max
    • Operating temperature: 0 to 40 °C
  • Connectivity:
    • WiFi dual band 802.11ac support
    • Gigabit Ethernet
  • Environment:
    • IP54 protection
    • Operating temperature: -20 to 45 °C
  • Terrain sensing:
    • Horizontal field of view: 360°
    • Range: 4 m
    • Lighting: >2 Lux
    • Collision avoidance: maintains set distance from stationary obstacles
  • Locomotion:
    • Speed: 1.6 m/s
    • Maximum slope: +/- 30°
    • Maximum step height: 300 mm
  • Payloads:
    • Max. weight: 14 kg
    • Mounting area: 850 x 240 x 270 mm
    • Mounting interface: M5 T-slot rails
    • Connector: DB25 (2 ports)
    • Power supply: unregulated DC 35-58.8V, 150W per port
    • Integration: application software and hardware interface control documentation included
  • Robot case:
    • 927 x 546 x 464 mm
    • Net weight: 47.6 kg
  • Case for battery and charger:
    • Dimensions: 559 x 432 x 267 mm
    • Weight (without batteries): 9.7 kg
  • Controller:
    • Dimensions: 143.6 x 274 x 53 mm
    • Weight: 580 g
    • Touch screen size: 7” (diagonal)
    • Resolution: 1920 x 1200
