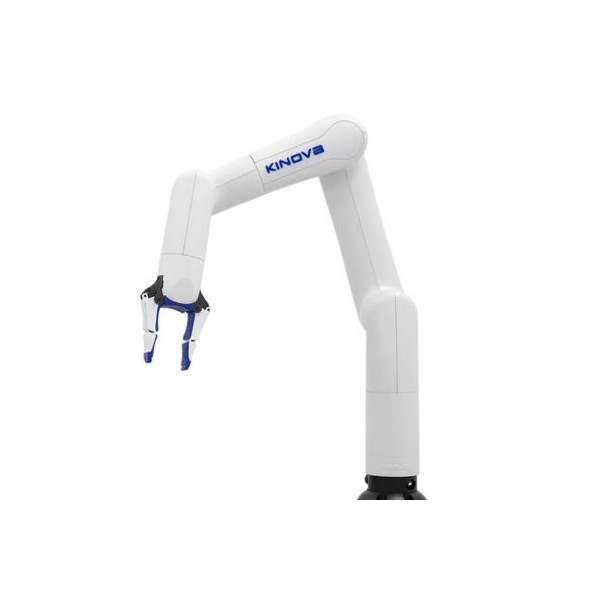

Kinova Gen3 Lite Robotic Arm
Kinova Gen3 Lite Robotic Arm
Kinova Gen3 Lite Robotic Arm
Kinova Gen3 Lite Robotic Arm

Kinova Gen3 Lite Robotic Arm

Kinova Gen3 Lite Robotic Arm
Kinova | A-000000-06942
Price upon request

Discover Gen3 Lite, an affordable solution designed for education and business needs, adaptable to all skill levels.

Quantity
Ask for a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

A More Compact and Affordable Alternative

The latest addition to Kinova's ultralight robot series, the Gen3 lite is the ideal solution for lightweight handling tasks at a more affordable cost. It is ideally suited to the needs of higher education and the professional world. What's more, the Gen3 lite integrates seamlessly with the Kinova Kortex™ API, facilitating collaboration and shared programming with other Gen3 lite or Gen3 units.

Highlights of the Gen3 lite robotic arm :

  • Extremely lightweight
  • High portability
  • Energy efficient
  • Optional 2D/3D vision module
  • Ideal for mobile applications
Ask for a quote

Redefining the Standard for Compact Professional Robots

The Gen3 Lite is designed to be accessible to all levels of expertise. You will have full control, whether it's for simple manipulation tasks or programming more complex applications in languages like MATLAB, ROS, C++, and Python.

  • Efficient and transparent actuators with integrated controller
  • High-level and low-level control
  • Low-level closed-loop control at 1 kHz
  • Plug and play
  • Protection zones

Installation in less than 10 minutes

Instantly teach your robot simple manipulations and input sequences:

  • Set up in less than 10 minutes
  • Simple connectivity (USB, Ethernet, RNDIS)
  • Access the Kinova Web App from any desktop, laptop, or mobile device.
”Intel® RealSense™ Depth Module D450;

Gen3 Lite Learning Kit

The first section of the Kinova Gen3 Lite Teaching Kit is now available! Developed in collaboration with academics, it covers five areas and includes instructions, code examples and answer sheets.

Interested? Ask for your personalized quote

Technical Specifications of Gen 3 Lite Robotic Arm

Degrees of Freedom6 DOF
Payload (average continuous range)0.5 kg
Total Weight5.4 kg
Maximum Reach760 mm
Maximum Speed25 cm/s
Actuator Joint Range± 155 to 160°
Power Supply Voltage21 to 30 VDC, 24 VDC nominal
Average Power Consumption20 W
Protection LevelIP22
Operating Temperature0°C to 40°C
SoftwareKinova Kortex
