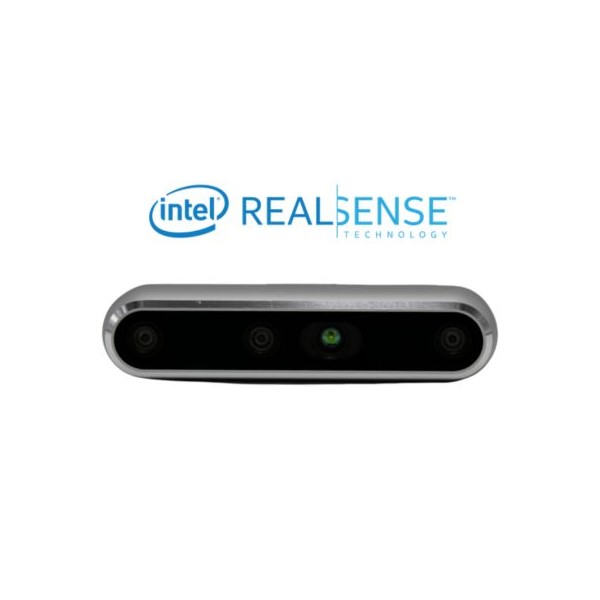

Intel® RealSense Depth Camera D457

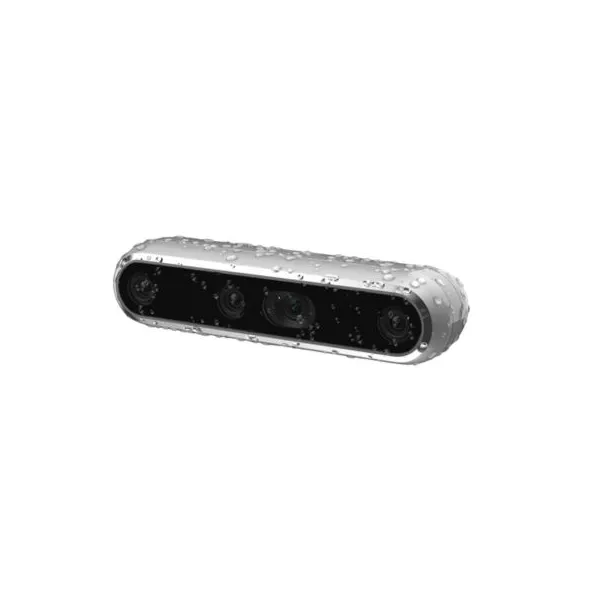

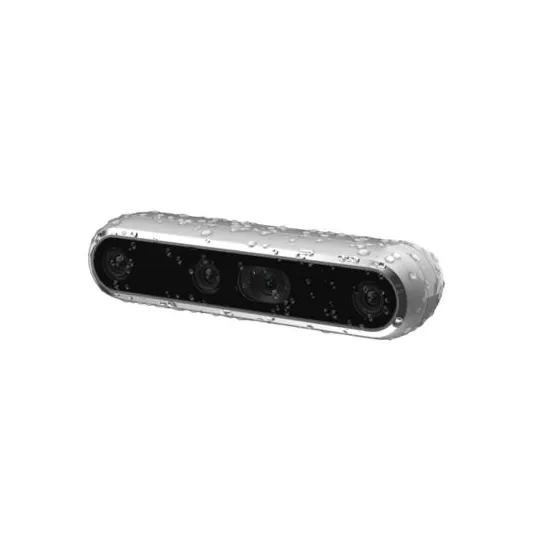

The D457 camera is Intel® RealSense's first high-bandwidth stereo camera with GMSL/FAKRA interface. It comes with an IP65-rated housing, providing effective protection against dust and water splashes.
A GMSL FAKRA Camera with IP65 Rating
The D457 camera is built upon the same D450 optical module used in the D455 camera, but it incorporates a new D4 V5 vision processor card. It delivers the same long-range performance as the D455, while taking advantage of the secure GMSL/FAKRA connector and the IP65 protection rating.
The Gigabit Multimedia Serial Link (GMSL) is a point-to-point multigigabit connection specially designed for the automotive industry. It enables the transmission of multiple streams over a single cable, covering distances of up to 15 meters using a coaxial cable. GMSL is a highly efficient protocol combined with a secure FAKRA connector, making it an ideal solution for robotics and warehouse-related applications.
Why Choose a GMSL/FAKRA Camera?
The GMSL/FAKRA technology offers reduced power consumption, improved immunity to electromagnetic and static interferences, minimal latency, and longer cable lengths compared to USB. It also provides higher bandwidth than Ethernet.
Key Benefits of the D457 Camera
The D457 camera integrates an Inertial Measurement Unit (IMU), enabling your application to enhance its depth perception, even when the camera is in motion. This feature enhances the camera's ability to be aware of its environment, which is particularly valuable for robotics and drones applications.
An Ideal Camera for Autonomous Mobile Robots
The incorporation of an automotive-grade FAKRA connector, a high-speed GMSL serializer, and a high-quality IP65 enclosure make it the perfect choice for Autonomous Mobile Robots (AMR), automotive infotainment systems, and driver monitoring.
With Intel RealSense SDK 2.0, you can now perform automatic calibration of your D457 stereo camera in less than 15 seconds, without the need for specialized targets. It's a simple and fast solution!
Technical Specifications of the D457 Depth Camera
|Image Sensor Technology||Global Shutter|
|Optimal Range||0.6 m to 6 m|
|Minimum Depth Distance (Min-Z) at Maximum Resolution||~52 cm|
|Depth Accuracy||<2% at 4 m|
|Depth Field of View (FOV)||87° × 58°|
|Depth Stream Output Resolution||Up to 1280 × 720|
|Depth Stream Output Frame Rate||Up to 90 fps|
|RGB Image Resolution||1280 × 800|
|RGB Frame Rate||30 fps|
|RGB Sensor Technology||Global Shutter|
|RGB Sensor FOV||90° × 65|
|RGB Sensor Resolution||1 MP|
|Camera Module||Intel RealSense D450 Module|
|Vision Processor Card||Intel RealSense Vision Processor D4|
|Form Factor||Camera Peripheral|
|Camera Dimensions (Length × Height × Depth)||124 mm × 29 mm × 36 mm|
- One UNC 1/4-20 threaded mounting point
- Two M4 threaded mounting points
