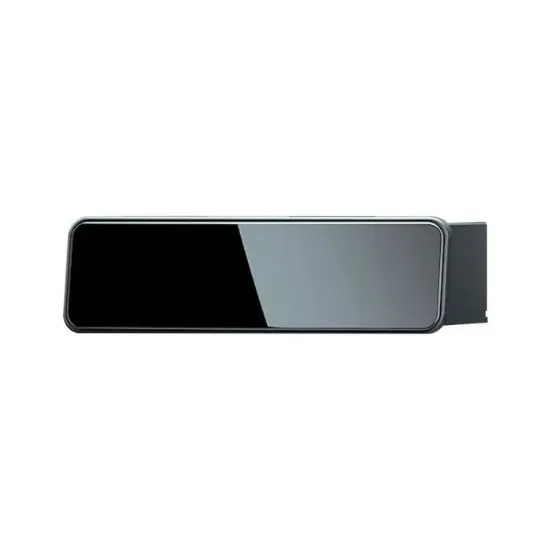

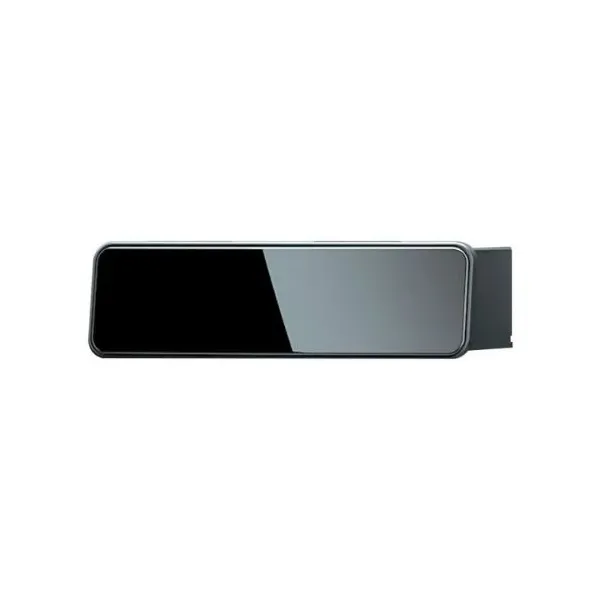

RoboSense EMX LiDAR
RoboSense EMX LiDAR
New
RoboSense EMX LiDAR

RoboSense EMX LiDAR

RoboSense EMX LiDAR
Robosense | A-000000-08150
€3,144.00
20 perc. French VAT inc.

The RoboSense EMX is a 192-channel automotive-grade digital LiDAR designed for advanced perception, driver assistance, and autonomous mobility applications.

Quantity
Available for pre-order
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

RoboSense EMX LiDAR: key points

  • 192 true channels for precise environmental perception
  • Maximum range up to 300 m for long-distance detection
  • 2.88 million points/second for a dense point cloud
  • Frequency up to 20 Hz for improved responsiveness
  • Overall angular resolution of 0.08° × 0.10°
  • 140° horizontal field of view
  • SPAD + VCSEL digital architecture
  • Intelligent Gaze function to enhance perception in priority areas
  • Compact size 120 × 80 × 30 mm

The RoboSense EMX LiDAR was developed to deliver detailed, reliable, and long-range 3D perception in dynamic environments. Thanks to its 192 true channels and 140° horizontal field of view, it generates a high-definition point cloud suitable for obstacle detection, scene analysis, and multi-sensor fusion.

Its intelligent Gaze function improves horizontal angular resolution in areas of interest, while its SPAD + VCSEL digital architecture supports better synchronization with camera data and advanced perception systems.

Applications of the RoboSense EMX LiDAR

The RoboSense EMX is suitable for projects requiring a high-performance LiDAR sensor for:

  • Autonomous vehicles
  • ADAS systems
  • Active safety
  • Embedded perception
  • LiDAR + camera fusion
  • Smart mobility platforms

Technical specifications of the RoboSense EMX

Number of channels192
Laser wavelength905 nm
Laser safetyClass 1 – eye safety
Ethernet connection1000M Base T1
Range200 m (200 m at 10% NIST)
OutputUDP packets via Ethernet
Blind spot≤ 1 m
UDP packet contentDistance, angular coordinates, intensity, timestamp, etc.
Range precision (typical)5 cm (1 sigma)
Operating voltage9 V - 16 V
Horizontal field of view120°
Power consumption10 W
Vertical field of view20°
Operating temperature-40°C to +85°C
Horizontal angular resolutionAverage 0.08°
Storage temperature-40°C to +105°C
Vertical angular resolution0.1°
Weight (without cabling)~520 g ±5%
Frame rate10 Hz
Dimensions110 mm (D) × 100 mm (W) × 32 mm (H)
Points per second (single return mode)2,880,000 pts/s
Time synchronizationgPTP
Points per second (dual return mode)5,760,000 pts/s
Protection ratingIP67, IP6K9K

RoboSense EMX LiDAR resources

FAQ – RoboSense EMX LiDAR

What is the range of the RoboSense EMX LiDAR?

The RoboSense EMX offers a maximum range of up to 300 meters, making it suitable for long-range perception applications.

How many channels does the RoboSense EMX have?

The RoboSense EMX features 192 true channels, enabling it to generate a dense and detailed point cloud.

What is the point rate of the RoboSense EMX?

The sensor reaches 2.88 million points per second, supporting high-definition 3D perception.

What frequency does the RoboSense EMX LiDAR offer?

The RoboSense EMX can operate at a frequency of up to 20 Hz, which is useful for dynamic environments and fast response times.

What applications is the RoboSense EMX designed for?

The RoboSense EMX is intended for ADAS systems, autonomous vehicles, active safety, and embedded perception projects.

Why choose a RoboSense EMX LiDAR for an autonomous mobility project?

The RoboSense EMX combines high resolution, long range, high frame rate, and a compact design, making it a relevant choice for projects that require reliable and accurate perception.
