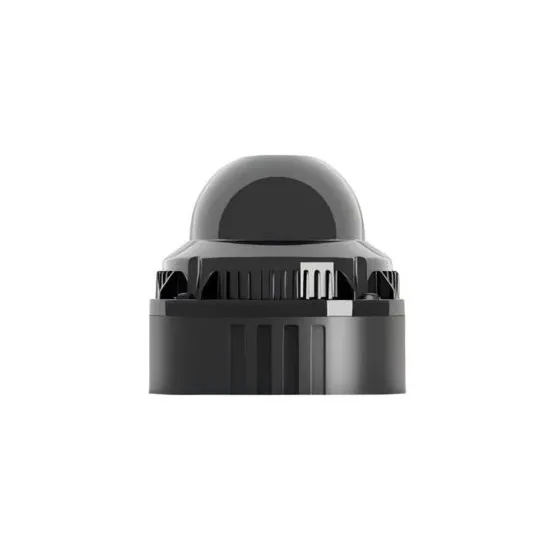

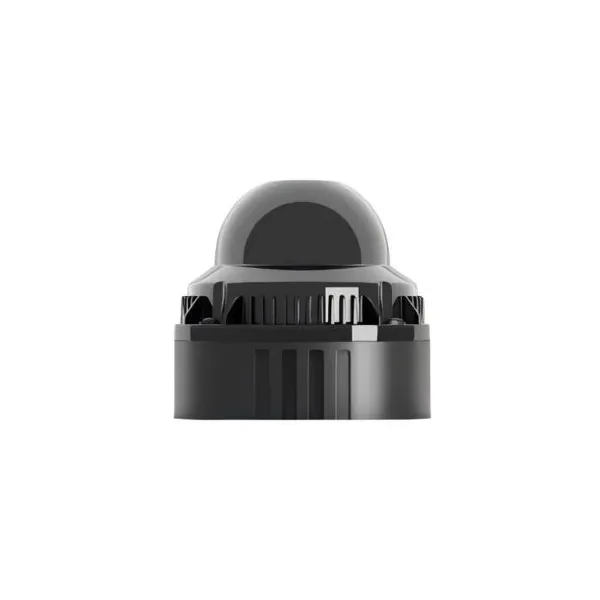

RoboSense Airy Lite LiDAR with accessories
Robosense | A-000000-08156
€600.00
20 perc. French VAT inc.
The RoboSense Airy Lite is a compact 360° 3D LiDAR designed for mobile robotics, mapping, and navigation applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
A compact 3D LiDAR for panoramic perception and embedded robotics
- 360° × 45° coverage for omnidirectional perception suited to mobile robots.
- Compact format: 69 × 64 × 62 mm, with a low-profile window of 20 mm for easier integration.
- Range up to 60 m, with detection at 40 m @ 10% reflectivity on channels 7 to 18.
- Accurate measurement: up to 0.5 cm over certain distance ranges depending on the channels.
- 24-beam digital architecture to generate structured point clouds.
- Low power consumption: 4.5 W, useful for battery-powered mobile platforms.
- IP67 protection and resistance to shocks, vibrations, and collisions.
- RS485 interface with GPRMC + 1PPS synchronization.
The RoboSense Airy Lite is designed for systems that need wide 3D perception without adding a bulky sensor. Its 360° horizontal coverage allows full շրջounding observation around the robot, while its 45° vertical field of view helps capture terrain changes, irregular obstacles, and objects close to the ground.
In a robotics or R&D context, its value lies in providing a usable data stream for localization, mapping, navigation, and obstacle avoidance. The sensor is also suitable for constrained mechanical integration thanks to its compact size, low weight, and low power consumption.
From SLAM to obstacle detection: practical projects for mobile robots and autonomous platforms
The RoboSense Airy Lite can be integrated into various mobile robotics and automation projects, especially when a compact LiDAR is needed for real-time 3D perception:
- AMRs and autonomous mobile robots: obstacle detection, navigation, and localization in warehouses, workshops, or industrial environments.
- AGVs: trajectory planning and route tracking based on structured 3D point clouds.
- Delivery robots: detection of pedestrians, obstacles, and environmental reading while moving.
- Cleaning robots: indoor mapping, area coverage, and adaptation to low or irregular obstacles.
- Quadruped robots or all-terrain platforms: terrain reading, relief detection, and locomotion support.
- Autonomous carts and logistics: support for navigation, docking, and detection of elements in warehouse flows.
- Service robotics and consumer robotics: compact 3D perception for platforms where weight, size, and laser safety matter.
For a laboratory, university, or integration team, this sensor can be used in SLAM, sensor fusion, autonomous navigation, or scene analysis projects. The RS485 interface, time synchronization, and output in spatial coordinates, intensity, and timestamp make it suitable for embedded perception pipelines.
Technical specifications of the RoboSense Airy Lite LiDAR
| Wavelength | 940 nm |
| Blind spot | < 0.1 m |
| Range | Channels 7-18: 40 m @ 10% Channels 1-6 and 19-24: 30 m @ 10% Maximum range: 60 m |
| Accuracy | Channels 7-18: 0-10 m = 0.5 cm; 10-40 m = 1 cm Channels 1-6 and 19-24: 0-30 m = 1 cm; 30-40 m = 1.5 cm |
| Horizontal field of view | 360° |
| Vertical field of view | 45° (-11.5° to +33.5°) |
| Angular resolution | 0.6° (H) × 1.96° (V) |
| Frequency | 10 Hz |
| Laser safety | Class 1 |
| Points per second | 144,000 pts/s (single return mode) |
| Data interface | RS485 |
| Power consumption | 4.5 W |
| Dimensions | 69 × 64 × 62 mm (including cable outlet) |
| Weight | 210 ± 10 g |
| Packet content | Spatial coordinates, intensity, timestamp, etc. |
| Operating voltage | 10-16 V |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Time synchronization | GPRMC with 1PPS |
| Protection rating | IP67 |
Resources for the RoboSense Airy Lite LiDAR
The RoboSense Airy Lite is a compact 360° 3D LiDAR designed for mobile robotics, mapping, and navigation applications.
