ZED Link Capture Card
Stereolabs | A-000000-07678
€582.00
20 perc. French VAT inc.
Capture up to 8 ZED X cameras simultaneously with precise hardware synchronization and high bandwidth using the ZED Link Mono, Duo, and Quad capture cards.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
ZED Link – High-Performance GMSL2 Capture Card for ZED X Cameras
Main Features
- High-performance capture card for Jetson Orin and Xavier
- Supports hardware-level shutter synchronization across cards
- External trigger / strobe supported
- Requires external power supply: 12–19V
- Connection interface: CSI port via 22-pin 0.5mm pitch connector
Available Versions

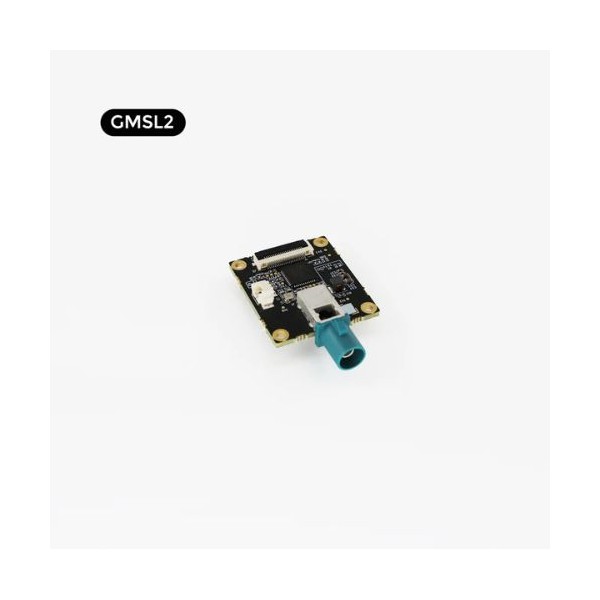

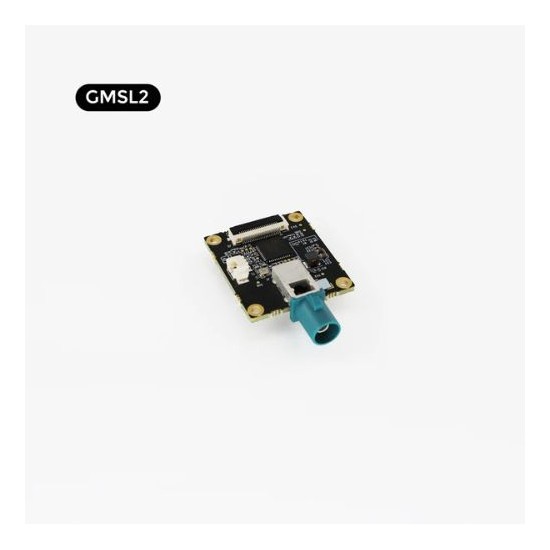

ZED Link Mono
- Capture 1 GMSL2 camera (SD/HD/4K up to 4K@30)
- Up to 6 Gb/s bandwidth
- CSI connection via 22-pin cable
Included in the box:
- 1x ZED Link Mono capture card
- 1x JST to jack connector
- 1x 22-pin 0.5mm CSI FFC cable
ZED Link Duo
- Capture up to 4 GMSL2 cameras (SD/HD/4K up to 4K@30)
- Up to 10 Gb/s bandwidth
- Connects to the CSI port of Orin/Xavier Dev Kit
- Limitation: up to 2x ZED X One 4K max; 4x for other models
Included in the box:
- 1x ZED Link Duo capture card
- 1x GMSL2 1-to-4 cable (0.3 m)
- 3x M2.5 x 20 mm bolts
- 3x 16 mm spacers
ZED Link Quad
- Capture up to 8 GMSL2 cameras (SD/HD/4K up to 4K@30)
- Up to 40 Gb/s bandwidth
- Connects to the SAMTEC CSI port of Jetson Orin/Xavier AGX
- Limitation: up to 4x ZED X One 4K max (2 per GMSL port); 8x for other models
Included in the box:
- 1x ZED Link Quad capture card
- 2x GMSL2 1-to-4 cables (0.3 m)
- 1x JST to jack connector
ZED Link Capture Card – Technical Specifications
| ZED Link Mono | ZED Link Duo | ZED Link Quad | |
| Operating Temperature | -20°C ~ +85°C | -20°C ~ +85°C | -20°C ~ +85°C |
| Weight | 8 g | 30 g | 55 g |
| Dimensions | 41.55 x 28.00 x 12.25 mm | 81.47 x 39.20 x 31.15 mm | 92 x 55 x 30.30 mm |
| Power Supply | External 5–19 V DC | External 14–19 V DC | External 9–19 V DC |
| Deserializer | Maxim MAX9296A | Maxim MAX96712 | 2 x Maxim MAX96712 |
| Interfaces | J1 (Fakra): 1x GMSL2 I/O J4 (GPIO header): 6-pin 2 mm pitch J1 (5V–19V external): 2 mm pitch J2 (MIPI CSI 22-pin): 0.5 mm pitch |
J4 (Fakra): 4-pin J13 (GPIO header): 10-pin J1 (19V external): DC jack | Inner Ø: 2.5 mm | Outer Ø: 6.5 mm J9 and J10 (MIPI CSI 15-pin): 2x15 pins | Not usable with J501 Samtec 120-pin J501 (Samtec to AGX): 120 pins | Compatible with Orin AGX and Xavier AGX Dev Kits | 16 mm board-to-board |
J1 & J2 (Fakra Z 4x1): 2x 4x GMSL2 I/O J17 (GPIO header): 16-pin 2.54 mm pitch J10 (Power 5–19V external): 2 mm pitch J5 (Samtec to AGX): Compatible with Orin AGX and Xavier AGX Dev Kits | 16 mm board-to-board |
| Compatibility | For use with NVIDIA Jetson Orin NX, Orin Nano, Xavier NX and Nano Dev Kits and carrier boards | For use with NVIDIA Jetson AGX Orin, Orin NX, Orin Nano, AGX Xavier, Xavier NX Dev Kits and carrier boards | For use with NVIDIA Jetson AGX Orin, AGX Xavier and compatible carrier boards |
