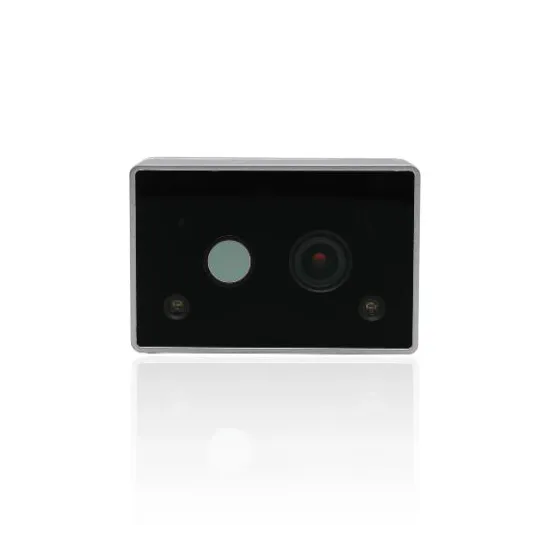

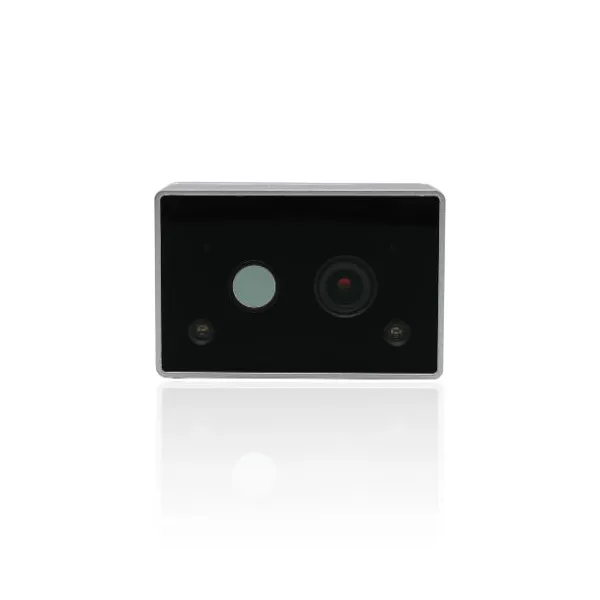

Introducing the Luxonis OAK Thermal Camera
The OAK-T is Luxonis' first camera to integrate both a thermal sensor and a color sensor into a compact, rugged IP67-rated housing. Based on the OAK-SoM-Pro module, it delivers 4 TOPS of onboard processing power, allowing real-time AI inference, computer vision, and multi-source analysis (thermal + RGB), even without a connected computer thanks to built-in flash memory.
Designed for industrial, safety, maintenance, and precision agriculture applications, it integrates easily into complex environments via PoE (M12) and I/O (M8) connections.
Typical Applications
- Industry: overheating detection, leak detection, fire prevention
- Agriculture: crop and livestock health monitoring
- Security: intrusion detection, night vision, fire detection
- Transportation: traffic analysis, vehicle and pedestrian detection
- Research: multi-modal analysis, RGB/thermal fusion, AI development
Package Includes
- 1 × OAK-T Camera (IP67 housing)
- 1 × M12 to RJ45 Cable (2 m)
- 1 × Cleaning Cloth
PoE Injector not included (available as an option)
OAK Thermal Camera Specifications
Thermal Camera
- Resolution: 256×192 (Tiny1-C VOx)
- Field of View: 111° (DFOV)
- Measurement Range: -15 °C to 150 °C
- Thermal Sensitivity: 50 mK @ 25 °C
- Accuracy: ±2 °C or ±2%
- Max Framerate: 25 FPS
- Spectral Range: 8–14 µm
Color Camera
- Sensor: IMX462 (2.1 MP – 1920×1080)
- DFOV / HFOV / VFOV: 95° / 84° / 45°
- Max Framerate: 30 FPS
- Focus Distance: 60 cm – ∞
Onboard Processing
- RVC2 with 4 TOPS (1.4 TOPS for AI)
- Encoders: H.264, H.265, MJPEG (up to 4K/30FPS)
- Computer Vision: edge detection, tracking, resize, undistortion…
- AI: supports custom or pre-trained models
- Object Tracking: built-in 2D tracking
Connectivity & Integration
- PoE (M12): Power and 1 Gbps network communication
- I/O (M8): USB2, GPIO, camera sync (FSIN, STROBE), power
- Supported Interfaces: ROS, CAN, HTTP, MQTT, TCP/UDP
- Integrated IMU: BMI270 (6-axis)
Mechanical Specifications
- Dimensions: 80 × 52 × 46 mm
- Weight: 297 g (with enclosure)
- Housing: Aluminum with Gorilla Glass front
- Operating Temperature: -20 °C to +50 °C
- Mounting: ¼" tripod, 75 mm VESA
Power Consumption
- Up to 6.5 W (full load)
- Typical: 3–4 W depending on active modules
- Compatible with 802.3af PoE injectors (Class 3)
