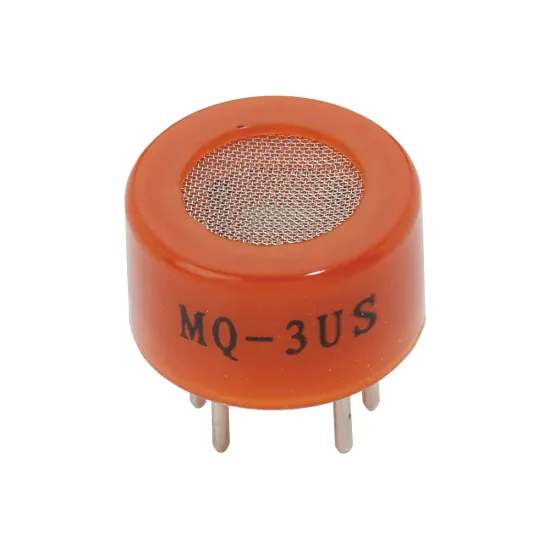

Alcohol gas sensor

Parallax Inc. | A-000000-00833
The C2H5OH alcohol gas sensor is used in gas detection devices for detecting ethyl alcohol. Combined with the Parallax gas sensor support, it will allow you to measure an alcohol concentration.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

Alcohol gas sensors are used in gas detection equipment to detect alcohol, for example in breathalysers. It can be coupled with the gas sensor support. To do this, insert the alcohol gas sensor in the universal gas sensor support and you can then very easily measure an alcohol concentration using your favourite microcontroller (e.g. (Arduino Yun).

Key features of the alcohol gas sensor

Here’s what you’ll need to know about the alcohol gas sensor:

  • Manufacturer’s model MQ-3
  • Very high alcohol sensitivity
  • Technology offering long life and stability
  • Simple drive circuit
  • Fast response time and high reaction sensitivity

Technical specifications of the alcohol gas sensor

Below are more details about the alcohol gas sensor:

  • Voltage required: 5 V DC
  • Current required: ~160 mA
  • Interface type: Resistive
  • Dimensions: 19.1 mm diameter × 16.55 mm high (excluding electrodes)
  • Operating temperature range: -10 to +50 °C

Ideas for projects using the alcohol gas sensor

There are many project possibilities, and the choice is so vast that we’re always happy to offer advice. Here are some examples of projects you can undertake with the alcohol gas sensor:

  • Safety devices
  • Harmful gas detection
  • Breathalysers

Resources for the alcohol gas sensor

Below are some resources that will help you get your electronic projects off the ground more rapidly:

Alcohol gas sensor datasheet in PDF format

Alcohol gas sensor datasheet in PDF format

Gas sensor support in PDF format

Gas sensor support in PDF format
