Shield Arduino GSM 2 avec antenne intégrée

Arduino GSM Shield 2 with integrated antenna

Arduino | A-000000-02032

Connect your Arduino GSM Shield 2 with its integrated antenna to your Arduino board to rapidly access the world of internet communication!

End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

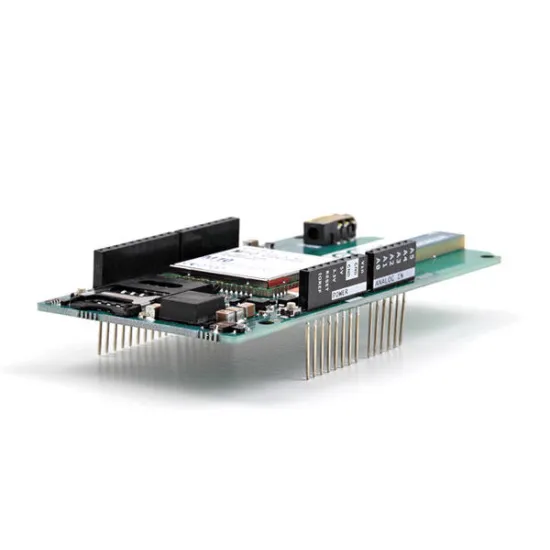

Arduino GSM Shield 2 with integrated antenna: your GPRS internet connection

This Arduino GSM Shield 2 with integrated antenna is equipped with an M10 quad-band GSM/GPRS modem that will offer you a wireless GPRS connection in the blink of an eye. All you’ll need is a SIM card offering GPRS coverage!

As always with Arduino, you have a complete and free code library to set up your connection and establish a communication between your Arduino Uno and your Arduino internet shield.

Uses for the GPRS Arduino Shield

Not only can you now send and download data on your Arduino via your GPRS internet connection, but you can also receive and send SMS messages and make phone calls. Please note that the items needed to create your own DIY cell phone aren’t included!

Arduino GSM Shield 2 with integrated antenna technical schematic

Technical specifications of the Arduino GSM Shield 2 with integrated antenna

  • GSM/GPRS shield
  • M10 quad-band GSM/GPRS modem
  • Compatible with Arduino Uno
  • Frequencies: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz
  • Supported protocols: TCP/UDP, HTTP (GPRS connection)
  • Max. data transfer speed: 85.6 kbps
  • Supply voltage: 5V
  • USB interface
  • Connection with Arduino Uno on pins 2, 3 (software serial) and 7 (reset)



Resources for the Arduino GSM Shield 2 with integrated antenna

No need to spend hours on Google looking for the information you need for your A000105 Arduino GSM Shield 2. You’ll find everything here!
