BT-410 USB Bluetooth Dongle
BT-410 USB Bluetooth Dongle

BT-410 USB Bluetooth Dongle

BT-410 USB Bluetooth Dongle
Robotis | A-000000-04167
43.84 €
20 perc. French VAT inc.

Including €0.01 for ecotax

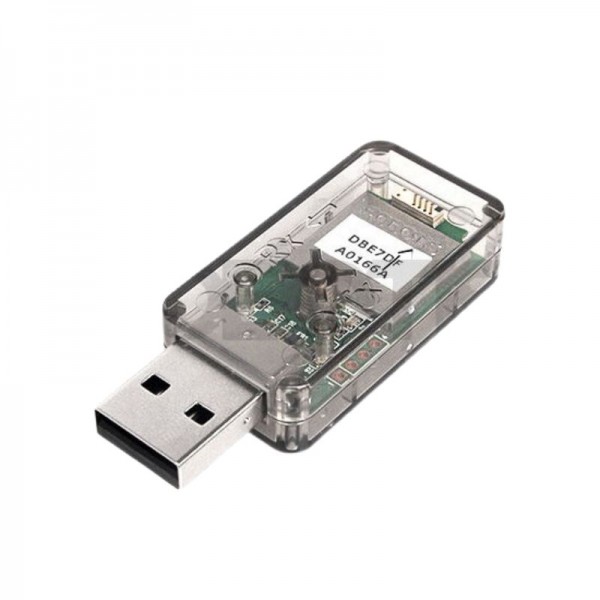

The BT-410 USB Bluetooth dongle enables you to establish communication between your robot and your PC via the BT-410 slave module.

Quantity
In backorder
This product is on backorder. You can place an order on our website or send us a purchase order in PDF format
Contact us to know the delivery times
Ask for a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

What is a BT-410 module?

The BT-410 module was originally designed to establish a Bluetooth communication between your robotics project and a tablet, smartphone or a PC, via UART. For example, you can connect BT-410 bluetooth slave module to your Robotis-Mini robot’s microcontroller and connect this BT-410 USB dongle to a computer to take control of your project remotely.

The problem is that this BT-410 Bluetooth module cannot communicate with a PC...

BT-410 USB Bluetooth Dongle: the solution for controlling your robot from your PC

The BT-410 USB Bluetooth dongle converts two interfaces: USB 2.0 and Bluetooth 4.0 Low Energy. That is, if you attach the BT-410 dongle and pair it with the BT-410 slave module, the PC and your robot can exchange data with each other (UART communication).

Please note that to use the BT-410 dongle, you need to install its driver on your PC. It only works with a BT-410 module set in slave mode.

Technical specifications of the BT-410 USB Bluetooth module from Robotis

  • Bluetooth specifications: Bluetooth 4.0 Low Energy
  • Effective range: 10 m
  • Bandwidth frequency: 2.4 GHz (ISM band)
  • Bandwidth: 128 kbps max.
  • Default transmission rate: 57,600 bps
  • Operating voltage: 5V
  • Consumption: 25 mA max.
  • Operating temperature range: approx. 0 to 40°C
  • Baud rate range: 1,200–1,000,000 bps
  • Single-chip antenna
  • Interface: USB 2.0 Full Speed
  • Typical sensitivity: -81 dBm
  • Antenna power: -6~4dBm (class 2)
  • Weight: 7.5 g
  • Dimensions: 50.5 x 20 x 10.5 mm

Resources for the BT-410 USB Bluetooth Dongle
