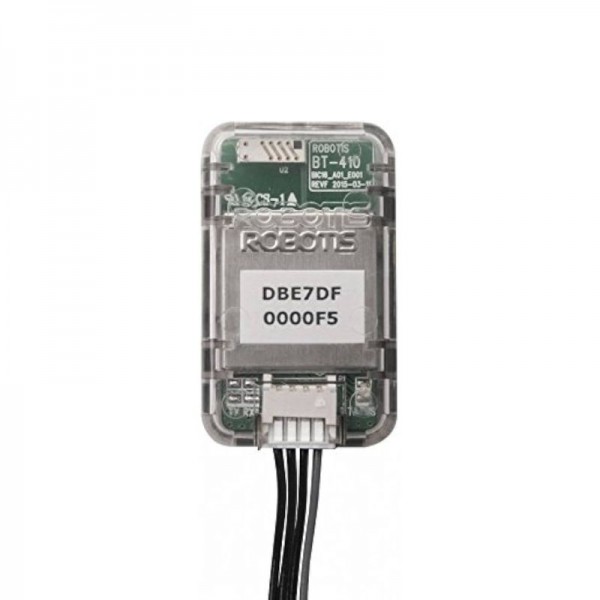

BT-410 Bluetooth Module (slave)
BT-410 Bluetooth Module (slave)

BT-410 Bluetooth Module (slave)

BT-410 Bluetooth Module (slave)
Robotis | A-000000-01974
29.23 €
20 perc. French VAT inc.

Including €0.01 for ecotax

When connected to a robot, this Robotis Bluetooth module allows a tablet or smartphone to control the robot using the Bluetooth Low Energy (BLE) 4.0 protocol.
Quantity
2 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Presentation of the BT-410 bluetooth module (slave)

When connected to a robot, this Robotis Bluetooth module allows a tablet or smartphone to control the robot using the Bluetooth Low Energy (BLE) 4.0 protocol. The BT-410 establishes a Bluetooth serial communication (UART).

The dongle can’t be used to control a robot from a PC. If you want to control your robot using a PC, opt for the BT-210 Bluetooth module.

The BT-410 is for example capable of connecting a robot like the DARwin-Mini robot to a smartphone under iOS (Apple), whereas the BT-210 doesn’t work with iOS.

Technical characteristics of the BT-410 bluetooth module slave

  • Weight: 3.5 g
  • Size: 18 x 30 x 9.1 mm
  • Bluetooth 4.0 Low Energy
  • Range: 10 m
  • Frequency: 2.4 GHz ISM band
  • Bandwidth: 80 kbps max.
  • Default Baud rate: 57,600 bps
  • Baud rate range: 1,200–1,000,000 bps
  • Voltage: 3.3V
  • Current: 5 mA (max.)
  • Operating temperature range: -40 °C to +85 °C
  • Antenna: chip antenna
  • Interface: UART (3.3V level)



Resources for the BT-410 bluetooth module (slave)

To find out more, see the manufacturer’s online documentation.
