Dynamixel Starter Set Officiel (EU)

Official Dynamixel Starter Set (EU)

Robotis | A-000000-04644

You can now power, connect and program all your Dynamixel servos, whatever the model, thanks to this official and very clever Dynamixel starter set.

Tax included
En cours de réapprovisionnement
Victim of its own success! This product is so popular that we ran out!
Resupply is in progress...
Contact us for the delivery date
Ask for a quote

Size Chart
Size Chart

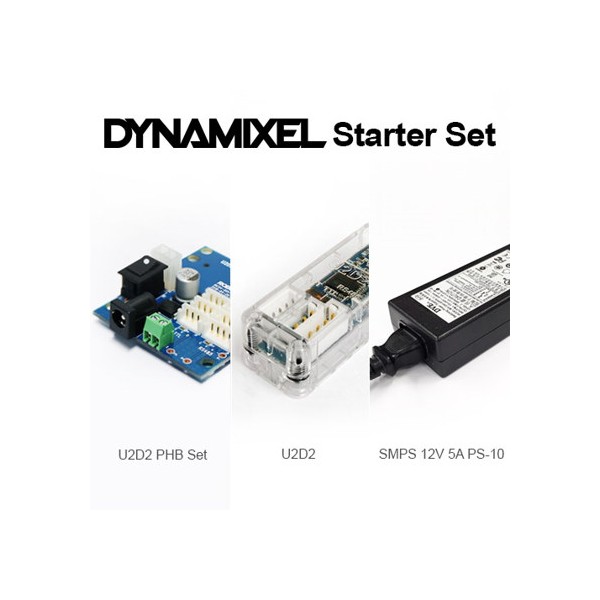

Dynamixel starter set: U2D2 + U2D2 PHB + adapter

This starter set allows you to power and control any Dynamixel servo motor, and even several different types of servos according to your needs. It consists of 3 essential items:

  • The U2D2 Dynamixel connector, which allows you to communicate with your servo from your PC via a USB connection. It includes one TTL port, one UART port and one RS-485 port;
  • The U2D2 PHB, which is a power hub board that combined with the U2D2 connector supplies power to any available model of Dynamixel servo;
  • The SMPS 12V 5A AC adapter, which will power your U2D2 PHB.
Official Dynamixel Starter Set

Full compatibility with all types of Dynamixel

The connection standards of the intelligent servos in the Dynamixel range may vary from one model to another. This Dynamixel Starter Set will solve all your compatibility problems, because not only does it include U2D2 accessories, but it also comes with the necessary robotics cables (convertible or not, X3P or X4P mode).

Technical specifications of the U2D2 Dynamixel set

The set contains:

  • 1 Dynamixel U2D2
  • 1 U2D2 power hub board (PHB)
  • 1 SMPS 12V 5A AC adapter
  • 1 USB micro-B cable
  • 1 X3P 100 mm ROBOT cable
  • 1 X4P 100 mm ROBOT cable
  • 1 X3P 180 mm convertible ROBOT cable
  • 1 X4P 180 mm convertible ROBOT cable
  • 4 M3 nuts
  • 4 M3x10x6 supports
  • 4 plastic rivets for U2D2 attachment
  • Specifications:
  • U2D2 dimensions: 48 x 18 x 14.6 mm
  • U2D2 weight: 9 g
  • U2D2 available parts: 3-pin TTL, 4-pin RS-485, 4-pin UART (for CM-150 and CM-200 type controllers)
  • U2D2 baud rate: 9600 - 6 Mbps
  • PHB dimensions: 48 x 57 mm
  • PHB operating voltage: 7.4-24V
  • PHB maximum current: 10A
  • SMPS AC adapter: 100-260V AC / 50-60 Hz input; 12V output
  • Compatible Dynamixel servos: all (using the appropriate cable, supplied)
  • Dynamixel servo motors not included

Resources for the Official Dynamixel Starter Set

Familiarise yourself with the Dynamixel universe with these documents, supplied with the Dynamixel U2D2 Official Starter Set:
